Description

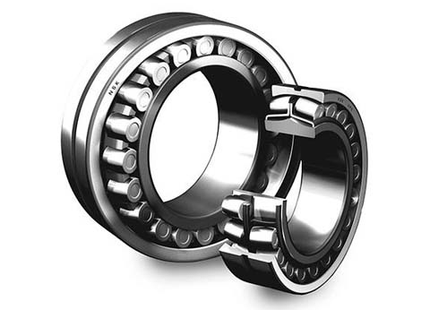

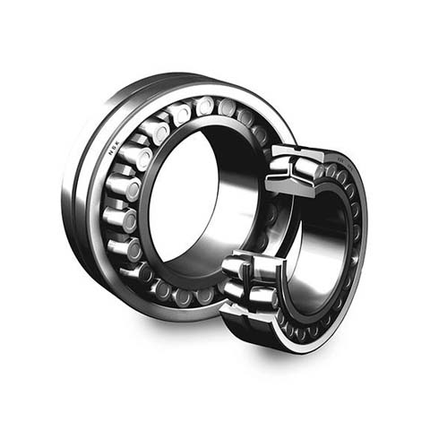

NSK Spherical Roller Bearings , Cylindrical Bore Bearings 24140CAME4 ,D=200
Bearing
Numbers |
Boundary Dimensions
(mm) |
Basic Load Ratings
(kN) |
Limiting Speeds
(min-1) |
Constant
e |
Axial Load
Factors |
Mass
(kg)
approx. |
|
| d |
D |
B |
r
min. |
Cr
|
C0r
|
Thermal Reference |
Mechanical |
Grease |
Oil |
| Y2
|
Y3
|
Y0
|
| 24140CAME4 |
200 |
340 |
140 |
3 |
1960 |
2660 |
950 |
1800 |
0 |
1000 |
0.39 |
2.5 |
1.7 |
1.7 |
51.3 |
DESIGN, TYPES, AND FEATURES
Various types of high load capacity spherical roller bearings are available. Types EA, C and CD have pressed-steel cages, and type CA has machined-brass cages. EA-type bearings listed here are classified as NSKHPSTM bearings, which offer particularly high load-carrying capacity, high limiting speeds, and superior performance under high-temperature operating conditions up to 200 °C.
An oil groove and holes are located in the outer ring to supply lubricant, and the bearing numbers are suffixed with E4.
To use bearings with oil grooves and holes, an oil groove should be located in the housing bore since depth for the groove in the bearing is limited. The dimensions of the oil groove and number of holes present are listed in Tables 1 and 2.
When bearings with a hole for a locking pin to prevent outer ring rotation are required, please contact NSK.
□Formulation of Bearing Designations
Spherical Roller Bearings
Example:
| ①Bearing Series |
239, 230, 240, 231, 241, 222, 232, 213, 223 : Spherical roller bearings |
| ②Bore number |
Bore number indicates bore diameter. Bore number X 5 (mm) |
| ③Internal design |
EA, CA : High load capacity |
| ④Cage |
M : Machined-brass cage (for CA Design)
Omitted: Pressed-steel cage (for EA Design) |
| ⑤⑥Ring design |
K : Tapered bore of inner ring (taper 1 : 12)
K30 : Tapered bore of inner ring (taper 1 : 30)
E4 : Lubricating groove in outside surface and holes in outer ring |
| ⑦Internal clearance |
Omitted : CN clearance, C3 : Clearance greater than CN,
C4 : Clearance greater than C3, C5 : Clearance greater than C4 |
| ⑧Tolerance class |
Omitted : ISO Normal, P6 : ISO Class 6, P5 : ISO Class 5, P4 : ISO Class 4 |
| ⑨Special specification |
S11 ; Dimensional stabilizing treatment: working temperature under 200 °C
(omitted for EA design) |
| ⑩NSKHPSTM |
*H* : NSKHPSTM designation
Tolerance Class : ISO Normal |
