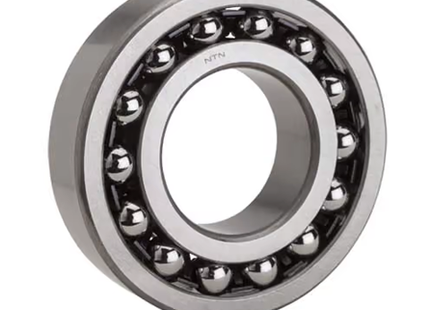

NTN Self-Aligning Ball Bearing - Straight Bore, 1315

Description


Item # d D B r Static Load Rating Dynamic Load Rating
 1301 0.4724 in
12.000 mm
1.4567 in
37.000 mm
0.4724 in
12.000 mm
0.0394 in
1.000 mm
365 lbf
1620 N
1.62 kN
1650 lbf
7350 N
7.35 kN
 1302 0.5906 in
15.000 mm
1.6535 in
42.000 mm
0.5118 in
13.000 mm
0.0394 in
1.000 mm
515 lbf
2290 N
2.29 kN
2180 lbf
9700 N
9.70 kN
 1303 0.6693 in
17.000 mm
1.8504 in
47.000 mm
0.5512 in
14.000 mm
0.0394 in
1.000 mm
720 lbf
3200 N
3.20 kN
2860 lbf
12700 N
12.70 kN
 1304 0.7874 in
20.000 mm
2.0472 in
52.000 mm
0.5906 in
15.000 mm
0.0433 in
1.100 mm
755 lbf
3350 N
3.35 kN
2830 lbf
12600 N
12.60 kN
 1305 0.9843 in
25.000 mm
2.4409 in
62.000 mm
0.6693 in
17.000 mm
0.0433 in
1.100 mm
1120 lbf
5000 N
5.00 kN
4100 lbf
18200 N
18.20 kN
 1306 1.1811 in
30.000 mm
2.8346 in
72.000 mm
0.7480 in
19.000 mm
0.0433 in
1.100 mm
1420 lbf
6300 N
6.30 kN
4800 lbf
21400 N
21.40 kN
 1307 1.3780 in
35.000 mm
3.1496 in
80.000 mm
0.8268 in
21.000 mm
0.0591 in
1.500 mm
1760 lbf
7850 N
7.85 kN
5700 lbf
25300 N
25.30 kN
 1308 1.5748 in
40.000 mm
3.5433 in
90.000 mm
0.9055 in
23.000 mm
0.0591 in
1.500 mm
2180 lbf
9700 N
9.70 kN
6700 lbf
29800 N
29.80 kN
 1309 1.7717 in
45.000 mm
3.9370 in
100.000 mm
0.9843 in
25.000 mm
0.0591 in
1.500 mm
2860 lbf
12700 N
12.70 kN
8650 lbf
38500 N
38.50 kN
 1310 1.9685 in
50.000 mm
4.3307 in
110.000 mm
1.0630 in
27.000 mm
0.0787 in
2.000 mm
3150 lbf
14100 N
14.10 kN
9800 lbf
43500 N
43.50 kN
 1311 2.1654 in
55.000 mm
4.7244 in
120.000 mm
1.1417 in
29.000 mm
0.0787 in
2.000 mm
4000 lbf
17900 N
17.90 kN
11600 lbf
51500 N
51.50 kN
 1312 2.3622 in
60.000 mm
5.1181 in
130.000 mm
1.2205 in
31.000 mm
0.0827 in
2.100 mm
4700 lbf
20800 N
20.80 kN
12900 lbf
57500 N
57.50 kN
 1313 2.5591 in
65.000 mm
5.5118 in
140.000 mm
1.2992 in
33.000 mm
0.0827 in
2.100 mm
5150 lbf
22900 N
22.90 kN
14100 lbf
62500 N
62.50 kN
 1314 2.7559 in
70.000 mm
5.9055 in
150.000 mm
1.3780 in
35.000 mm
0.0827 in
2.100 mm
6250 lbf
27700 N
27.70 kN
16900 lbf
75000 N
75.00 kN
 1315 2.9528 in
75.000 mm
6.2992 in
160.000 mm
1.4567 in
37.000 mm
0.0827 in
2.100 mm
6750 lbf
30000 N
30.00 kN
18000 lbf
80000 N
80.00 kN
 1316 3.1496 in
80.000 mm
6.6929 in
170.000 mm
1.5354 in
39.000 mm
0.0827 in
2.100 mm
7400 lbf
33000 N
33.00 kN
20000 lbf
89000 N
89.00 kN
 1317 3.3465 in
85.000 mm
7.0866 in
180.000 mm
1.6142 in
41.000 mm
0.1181 in
3.000 mm
8550 lbf
38000 N
38.00 kN
22100 lbf
98500 N
98.50 kN
 1318 3.5433 in
90.000 mm
7.4803 in
190.000 mm
1.6929 in
43.000 mm
0.1181 in
3.000 mm
10000 lbf
44500 N
44.50 kN
26300 lbf
117000 N
117.00 kN
 1319 3.7402 in
95.000 mm
7.8740 in
200.000 mm
1.7717 in
45.000 mm
0.1181 in
3.000 mm
11500 lbf
51000 N
51.00 kN
29000 lbf
129000 N
129.00 kN
 1320 3.9370 in
100.000 mm
8.4646 in
215.000 mm
1.8504 in
47.000 mm
0.1181 in
3.000 mm
12900 lbf
57500 N
57.50 kN
31500 lbf
140000 N
140.00 kN






1. Design features and characteristics

The outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways.
The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment as shown in Fig. 1.
Since axial load capacity is limited, self- aligning ball bearing are not suitable for applications with heavy axial loads.

It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.



2. Standard cage type


All bearing series are equipped with a pressed cage, except 2321S and 2322S, which are equipped with a machined cage.
Self-Aligning Ball Bearings
It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.

Table 1 Standard cage types of spherical ball bearings








3. Ball protrusion


Bearings with part numbers listed in Table 2 below have balls which protrude slightly from the bearing face as illustrated in Fig. 2. The total width dimensions are shown in Table 2.

4.  Allowable misalignment angle

The allowable misalignment angle can be determined by the following function. This degree of allowable misalignment may be limited by the design of mating components around the bearing.
Normal load ....................... 1/15



5.  Precautions for using self-aligning ball bearings

Self-aligning ball bearings are unable to support large axial loads and therefore axial loading shall be limited.
Please consider using self-aligning roller bearings when a large axial load is to be applied.

Product form

Item # d D B r Static Load Rating Dynamic Load Rating  1301 0.4724 in 12.000 mm 1.4567 in 37.000... Read more

SKU: 1315

$105.73 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description


      Item # d D B r Static Load Rating Dynamic Load Rating
       1301 0.4724 in
      12.000 mm
      1.4567 in
      37.000 mm
      0.4724 in
      12.000 mm
      0.0394 in
      1.000 mm
      365 lbf
      1620 N
      1.62 kN
      1650 lbf
      7350 N
      7.35 kN
       1302 0.5906 in
      15.000 mm
      1.6535 in
      42.000 mm
      0.5118 in
      13.000 mm
      0.0394 in
      1.000 mm
      515 lbf
      2290 N
      2.29 kN
      2180 lbf
      9700 N
      9.70 kN
       1303 0.6693 in
      17.000 mm
      1.8504 in
      47.000 mm
      0.5512 in
      14.000 mm
      0.0394 in
      1.000 mm
      720 lbf
      3200 N
      3.20 kN
      2860 lbf
      12700 N
      12.70 kN
       1304 0.7874 in
      20.000 mm
      2.0472 in
      52.000 mm
      0.5906 in
      15.000 mm
      0.0433 in
      1.100 mm
      755 lbf
      3350 N
      3.35 kN
      2830 lbf
      12600 N
      12.60 kN
       1305 0.9843 in
      25.000 mm
      2.4409 in
      62.000 mm
      0.6693 in
      17.000 mm
      0.0433 in
      1.100 mm
      1120 lbf
      5000 N
      5.00 kN
      4100 lbf
      18200 N
      18.20 kN
       1306 1.1811 in
      30.000 mm
      2.8346 in
      72.000 mm
      0.7480 in
      19.000 mm
      0.0433 in
      1.100 mm
      1420 lbf
      6300 N
      6.30 kN
      4800 lbf
      21400 N
      21.40 kN
       1307 1.3780 in
      35.000 mm
      3.1496 in
      80.000 mm
      0.8268 in
      21.000 mm
      0.0591 in
      1.500 mm
      1760 lbf
      7850 N
      7.85 kN
      5700 lbf
      25300 N
      25.30 kN
       1308 1.5748 in
      40.000 mm
      3.5433 in
      90.000 mm
      0.9055 in
      23.000 mm
      0.0591 in
      1.500 mm
      2180 lbf
      9700 N
      9.70 kN
      6700 lbf
      29800 N
      29.80 kN
       1309 1.7717 in
      45.000 mm
      3.9370 in
      100.000 mm
      0.9843 in
      25.000 mm
      0.0591 in
      1.500 mm
      2860 lbf
      12700 N
      12.70 kN
      8650 lbf
      38500 N
      38.50 kN
       1310 1.9685 in
      50.000 mm
      4.3307 in
      110.000 mm
      1.0630 in
      27.000 mm
      0.0787 in
      2.000 mm
      3150 lbf
      14100 N
      14.10 kN
      9800 lbf
      43500 N
      43.50 kN
       1311 2.1654 in
      55.000 mm
      4.7244 in
      120.000 mm
      1.1417 in
      29.000 mm
      0.0787 in
      2.000 mm
      4000 lbf
      17900 N
      17.90 kN
      11600 lbf
      51500 N
      51.50 kN
       1312 2.3622 in
      60.000 mm
      5.1181 in
      130.000 mm
      1.2205 in
      31.000 mm
      0.0827 in
      2.100 mm
      4700 lbf
      20800 N
      20.80 kN
      12900 lbf
      57500 N
      57.50 kN
       1313 2.5591 in
      65.000 mm
      5.5118 in
      140.000 mm
      1.2992 in
      33.000 mm
      0.0827 in
      2.100 mm
      5150 lbf
      22900 N
      22.90 kN
      14100 lbf
      62500 N
      62.50 kN
       1314 2.7559 in
      70.000 mm
      5.9055 in
      150.000 mm
      1.3780 in
      35.000 mm
      0.0827 in
      2.100 mm
      6250 lbf
      27700 N
      27.70 kN
      16900 lbf
      75000 N
      75.00 kN
       1315 2.9528 in
      75.000 mm
      6.2992 in
      160.000 mm
      1.4567 in
      37.000 mm
      0.0827 in
      2.100 mm
      6750 lbf
      30000 N
      30.00 kN
      18000 lbf
      80000 N
      80.00 kN
       1316 3.1496 in
      80.000 mm
      6.6929 in
      170.000 mm
      1.5354 in
      39.000 mm
      0.0827 in
      2.100 mm
      7400 lbf
      33000 N
      33.00 kN
      20000 lbf
      89000 N
      89.00 kN
       1317 3.3465 in
      85.000 mm
      7.0866 in
      180.000 mm
      1.6142 in
      41.000 mm
      0.1181 in
      3.000 mm
      8550 lbf
      38000 N
      38.00 kN
      22100 lbf
      98500 N
      98.50 kN
       1318 3.5433 in
      90.000 mm
      7.4803 in
      190.000 mm
      1.6929 in
      43.000 mm
      0.1181 in
      3.000 mm
      10000 lbf
      44500 N
      44.50 kN
      26300 lbf
      117000 N
      117.00 kN
       1319 3.7402 in
      95.000 mm
      7.8740 in
      200.000 mm
      1.7717 in
      45.000 mm
      0.1181 in
      3.000 mm
      11500 lbf
      51000 N
      51.00 kN
      29000 lbf
      129000 N
      129.00 kN
       1320 3.9370 in
      100.000 mm
      8.4646 in
      215.000 mm
      1.8504 in
      47.000 mm
      0.1181 in
      3.000 mm
      12900 lbf
      57500 N
      57.50 kN
      31500 lbf
      140000 N
      140.00 kN






      1. Design features and characteristics

      The outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways.
      The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment as shown in Fig. 1.
      Since axial load capacity is limited, self- aligning ball bearing are not suitable for applications with heavy axial loads.

      It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.



      2. Standard cage type


      All bearing series are equipped with a pressed cage, except 2321S and 2322S, which are equipped with a machined cage.
      Self-Aligning Ball Bearings
      It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.

      Table 1 Standard cage types of spherical ball bearings








      3. Ball protrusion


      Bearings with part numbers listed in Table 2 below have balls which protrude slightly from the bearing face as illustrated in Fig. 2. The total width dimensions are shown in Table 2.

      4.  Allowable misalignment angle

      The allowable misalignment angle can be determined by the following function. This degree of allowable misalignment may be limited by the design of mating components around the bearing.
      Normal load ....................... 1/15



      5.  Precautions for using self-aligning ball bearings

      Self-aligning ball bearings are unable to support large axial loads and therefore axial loading shall be limited.
      Please consider using self-aligning roller bearings when a large axial load is to be applied.
