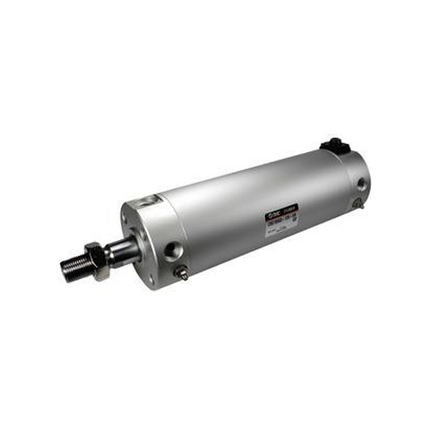

SMC CBG1 Series End-Lock Cylinder, Round Body, CDBG1BN20-75-HL

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Set trunnion mounting tab-less shape to basic type
  • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
  • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Basic type
form N rubber cushion
tube inner diameter 20 tube inner diameter 20mm
cylinder stroke 75 Cylinder stroke 75mm
Cylinder additional symbol - no bellows
Lock position H Head side lock
Format of manual release L Lock type
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting bracket - doesn't exist
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDBG1BN20-75-HL

$61.02 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Standardized rod end shape female thread
      • Improved auto switch operability, easy position adjustment
      • Set trunnion mounting tab-less shape to basic type
      • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
      • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      installation support B Basic type
      form N rubber cushion
      tube inner diameter 20 tube inner diameter 20mm
      cylinder stroke 75 Cylinder stroke 75mm
      Cylinder additional symbol - no bellows
      Lock position H Head side lock
      Format of manual release L Lock type
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Auto switch mounting bracket - doesn't exist
      Custom made specifications - standard
