Description

OVERVIEW

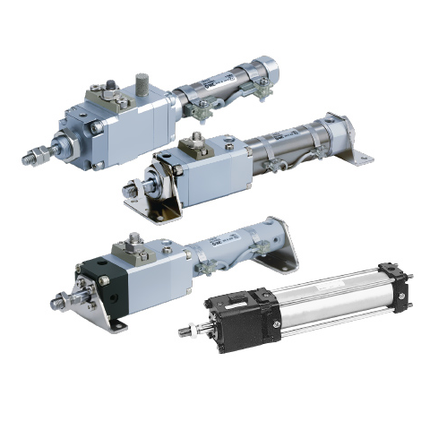

Series CM2 stainless steel cylinders are compact, lightweight and offer high performance. Improved piston seal and rod seal greatly improve the units life. Rubber bumpers are standard. The CM2 series offers a variety of mounting options and is auto switch capable.

Cylinder with lock suitable for intermediate stop, emergency stop and drop prevention
(two-way lock) ※CL1 is one-way lock
With auto switch (CDL series: CDLJ2, CDLM2, CDLG1, CDL1)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	L	Axial foot type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
with bellows	-	doesn't exist
How Lock works	D	Spring/Pneumatic Combination Lock
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Product form

OVERVIEW Series CM2 stainless steel cylinders are compact, lightweight and offer high performance. Improved piston seal and rod seal greatly... Read more

SKU: CDLM2L20-75-D

$266.31 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

Series CM2 stainless steel cylinders are compact, lightweight and offer high performance. Improved piston seal and rod seal greatly improve the units life. Rubber bumpers are standard. The CM2 series offers a variety of mounting options and is auto switch capable.

Cylinder with lock suitable for intermediate stop, emergency stop and drop prevention
(two-way lock) ※CL1 is one-way lock
With auto switch (CDL series: CDLJ2, CDLM2, CDLG1, CDL1)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	L	Axial foot type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
with bellows	-	doesn't exist
How Lock works	D	Spring/Pneumatic Combination Lock
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Reviews

Name: SMC CLM2 Series Fine Lock Cylinder, Double Acting, Single Rod, CDLM2L20-75-D
Brand: SMC
SKU: CDLM2L20-75-D
Price: 266.31 USD

SMC CLM2 Series Fine Lock Cylinder, Double Acting, Single Rod, CDLM2L20-75-D
