Peacock Signal Gauge S-9

  • VendorPEACOCK

Description

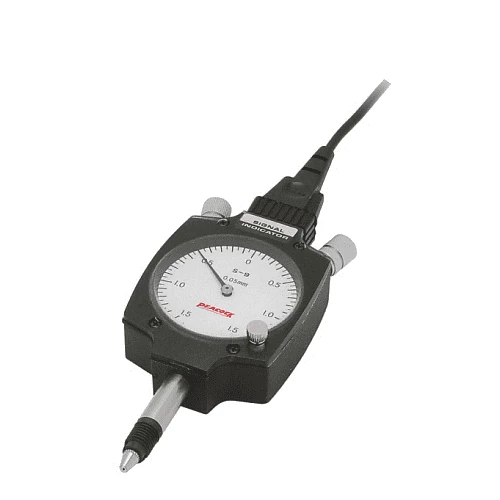

Peacock Signal Gauge S-9

Model S-9
Graduation 0.05mm
Measurement range 3.0 ( ±1.5 ) mm



  • With its most gross scale of 0.05 mm, it is applicable to select grossly worked parts and as cast parts at the low-est costs
Specifications
Model S-9
Spindle Movable Range 4mm
Graduation 0.05mm
Tolerance Setting Range 3.0 ( ±1.5 ) mm
Accuracy ±0.025mm
Measuring Force Less than 1.2N ( 120gf )
Contact capacity MAX DC24V  20mA
Number of judgement Stages Three stages of -NG, OK and +NG
Cord length 2 m
Stem diameter ø8 mm
Operating temperature range 0 - 60 ℃
Options Code Length 5m 10m / Back cover with Lug (GB-1A)
Dial indicator for setting -----
Weight 180 g
Cable signal table 　
Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.



[PEACOCK] Signal Gauge S-5

Product form

Peacock Signal Gauge S-9 Model S-9 Graduation 0.05mm Measurement range 3.0 ( ±1.5 ) mm   With its most gross... Read more

SKU: S-9

$476.68 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Peacock Signal Gauge S-9

      Model S-9
      Graduation 0.05mm
      Measurement range 3.0 ( ±1.5 ) mm



      • With its most gross scale of 0.05 mm, it is applicable to select grossly worked parts and as cast parts at the low-est costs
      Specifications
      Model S-9
      Spindle Movable Range 4mm
      Graduation 0.05mm
      Tolerance Setting Range 3.0 ( ±1.5 ) mm
      Accuracy ±0.025mm
      Measuring Force Less than 1.2N ( 120gf )
      Contact capacity MAX DC24V  20mA
      Number of judgement Stages Three stages of -NG, OK and +NG
      Cord length 2 m
      Stem diameter ø8 mm
      Operating temperature range 0 - 60 ℃
      Options Code Length 5m 10m / Back cover with Lug (GB-1A)
      Dial indicator for setting -----
      Weight 180 g
      Cable signal table 　
      Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
      In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
      In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
      In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.



      [PEACOCK] Signal Gauge S-5
