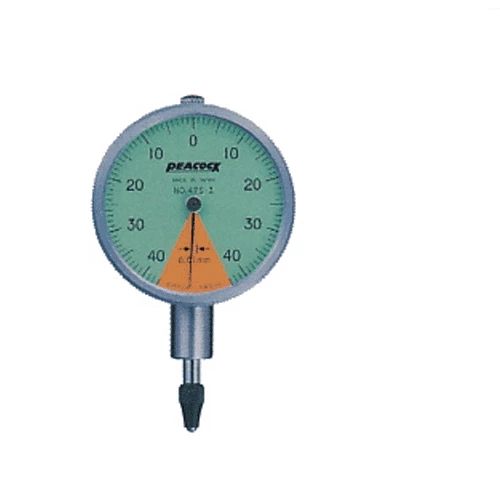

Peacock One Revolution Dial Gauges; 0.01mm, 47SZ, Range 0.8mm,Small dial face ( Ø36 )

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.01mm, 47SZ, Range 0.8mm,Small dial face ( Ø36 )

  • Model 47SZ
  • Graduation 0.01mm
  • Range 0.8mm
  • Small dial face ( Ø36 )
  • Flat back
  • Contact Point ( XB-1 )
                            1. These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
                            2. The long stem is made of stainless steel, is high in strenght and is malfunction-freedue to fastening.
                            3. The dial faces except No. 18 and 17B are easy to read with green and orange(dead zone)

                            Model

                            Graduation  (mm)

                            Range (mm)

                            (Free stroke)

                            Reading

                            Indication error (µm)

                            Backward error (µm)

                            Repeatability (µm)

                            Measuring force less than (N)

                            Revolution

                            Whole measuring range

                            1/10

                            1/2

                            One

                            Two
                            47SZ

                            0.01

                            0.8(4.0)

                            40-0-40

                            		 9 -

                            ±13

                            		 -



                            6

                            		 5

                            1.4



                            Dimensions (mm)
                            Model A B C D E F G H I K
                            47SZ 41.1 20 9.7 36 13 15 3.5 6.5 32 23.1



                            Product form

                            Peacock One Revolution Dial Gauges; 0.01mm, 47SZ, Range 0.8mm,Small dial face ( Ø36 ) Model 47SZ  Graduation 0.01mm  Range 0.8mm ... Read more

                            SKU: 47S-Z

                            $157.92 Excl. VAT

                              • Quick delivery worldwide
                              • Satisfied or refunded
                              • Secure payments Paypal
                              • Shipped today? Order within: Dec 27, 2024 17:00:00 +0900

                              Description

                              Peacock One Revolution Dial Gauges; 0.01mm, 47SZ, Range 0.8mm,Small dial face ( Ø36 )

                              • Model 47SZ
                              • Graduation 0.01mm
                              • Range 0.8mm
                              • Small dial face ( Ø36 )
                              • Flat back
                              • Contact Point ( XB-1 )
                                                        1. These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
                                                        2. The long stem is made of stainless steel, is high in strenght and is malfunction-freedue to fastening.
                                                        3. The dial faces except No. 18 and 17B are easy to read with green and orange(dead zone)

                                                        Model

                                                        Graduation  (mm)

                                                        Range (mm)

                                                        (Free stroke)

                                                        Reading

                                                        Indication error (µm)

                                                        Backward error (µm)

                                                        Repeatability (µm)

                                                        Measuring force less than (N)

                                                        Revolution

                                                        Whole measuring range

                                                        1/10

                                                        1/2

                                                        One

                                                        Two
                                                        47SZ

                                                        0.01

                                                        0.8(4.0)

                                                        40-0-40

                                                        		 9 -

                                                        ±13

                                                        		 -



                                                        6

                                                        		 5

                                                        1.4



                                                        Dimensions (mm)
                                                        Model A B C D E F G H I K
                                                        47SZ 41.1 20 9.7 36 13 15 3.5 6.5 32 23.1
