TECLOCK  Dial Depth Gauge IM-882 As to internal caliper gauge IM-880 series, the distance between contact points facing outside is firstly set at standard dimension with ring gaugeor micrometer. Then, it is measured by inserting contact point into internal dimension part to be measured after its outer dial of which movestogether with rotated bezel is set at “0”. The displacement of indicator from “0” point of outer dial is to be measured at that time. The value addingto the read displacement to standard dimension or deducting it from standard dimension is the dimension of internal diameter. This seriesattaches spare contact point which cam set accurate dimension corresponding to size of internal dimension. External caliper gauge is opposite,namely reading the value by holding work piece with 2 contact points facing outside Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point. Set dimension within ±1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension. Please set standard dimension within measuring range with micrometer or ring gauge. Specifications Graduation (mm) Measuring Range (mm) Indicating Range (mm) Indication Error Measuring Force (N) Weight (g) Spare Contact Point Maximum Measuring Depth A (mm) Entrance Diameter Φd (mm)* Groove Depth H (mm) Minimum Groove Width B (mm) Code No. Measuring Range (mm) 0.01 55~153 2 ±20 3 or less 240 ZS-413 55~73 90 45~63 5 3.5 ZS-414 71~89 54~72 8.5 ZS-415 87~105 70~88 8.5 ZS-416 103~121 86~104 8.5 ZS-417 119~137 102~120 8.5 ZS-418 135~153 118~136 8.5

Read more less

TECLOCK  Dial Depth Gauge IM-881 As to internal caliper gauge IM-880 series, the distance between contact points facing outside is firstly set at standard dimension with ring gaugeor micrometer. Then, it is measured by inserting contact point into internal dimension part to be measured after its outer dial of which movestogether with rotated bezel is set at “0”. The displacement of indicator from “0” point of outer dial is to be measured at that time. The value addingto the read displacement to standard dimension or deducting it from standard dimension is the dimension of internal diameter. This seriesattaches spare contact point which cam set accurate dimension corresponding to size of internal dimension. External caliper gauge is opposite,namely reading the value by holding work piece with 2 contact points facing outside Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point. Set dimension within ±1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension. Please set standard dimension within measuring range with micrometer or ring gauge. Specifications Graduation (mm) Measuring Range (mm) Indicating Range (mm) Indication Error Measuring Force (N) Weight (g) Spare Contact Point Maximum Measuring Depth A (mm) Entrance Diameter Φd (mm)* Groove Depth H (mm) Minimum Groove Width B (mm) Code No. Measuring Range (mm) 0.01 30~62 2 ±20 3 or less 218 ZS-408 30~38 75 24~32 3 2.5 ZS-409 36~44 27.4~35.4 4.3 ZS-410 42~50 33.4~41.4 4.3 ZS-411 48~56 39.4~47.4 4.3 ZS-412 54~62 45.4~53.4 4.3

Read more less

TECLOCK Rubber / Plastic Hardness Meter GS-709N Features We have a lineup of models that comply with the standards of each country and are compatible with a wide range of materials, including original products. Use For measuring general rubber, soft plastic, etc. Product specifications Specifications / standards JIS K 7215 compliant Type A Measuring range: 0-100 Dimensions (mm) Height x Width x Depth: 104.2 x 60 x 23.5 Measuring range: 0-100

Read more less

TECLOCK Rubber / Plastic Hardness Meter GS-702N Features We have a lineup of models that comply with the standards of each country and are compatible with a wide range of materials, including original products. Use For plastic and hard rubber. Product specifications Specifications / standards Compliant standard: JIS K 7215 Type D Measuring range: 0-100 Use: For hard rubber Dimensions (mm) Height x Width x Depth: 104.2 x 60 x 23.5 Use: For hard rubber Measuring range: 0-100

Read more less

TECLOCK Rubber / Plastic Hardness Meter GS-706N Features It is a measuring instrument that detects the hardness of rubber, sponge, felt, plastic, etc. with extremely high accuracy. The compliance standard is JIS K630 (former JIS A type). Use Applicable materials: general rubber, sponge, felt, plastic JIS K 6301 compliant (vulcanized rubber physical test method abolished in August 1998) Old JIS A type Product specifications Specifications / standards Width x Depth x Height: 60 x 23.5 x 107.7 mm Type A From a total of 43 types of lineup, it is possible to select a model that is more suitable for the sample. Spring load value (mN): 539-8385 Measurement range (°): 0 to 100 Minimum scale (°): 1 Needle shape: Tip φ0.79mm 35 ° conical trapezoid Compliant standard: JIS K 6301 Former JIS A type Needle: truncated cone shape

Read more less

TECLOCK Rubber / Plastic Hardness Meter GS-703 Use JIS K 6301 compliant (vulcanized rubber physical test method abolished in August 1998) Old JIS C type Product specifications Specifications / standards Use: For hard rubber Use: For hard rubber

Read more less

TECLOCK Rubber / Plastic Hardness Meter GS-701N Features The compliant standard is JIS S 6050. We have a lineup of models that comply with the standards of each country and are compatible with a wide range of materials, including original products. Use Applicable materials: soft rubber, film rolls, spinning rolls. For soft rubber, film rolls, spinning rolls JIS S 6050 compliant plastic eraser (eraser) for hardness test. Product specifications Specifications / standards Compliant standard: JIS S 6050 Width x Depth x Height: 60 x 23.5 x 107.7 mm Type C Spring load value (mN): 539-8385 Measurement range (°): 0 to 100 Minimum scale (°): 1 Needle shape: Tip Φ5.08mm Hemispherical Use: For soft rubber Dimensions (mm) Height x Width x Depth: 104.2 x 60 x 23.5

Read more less

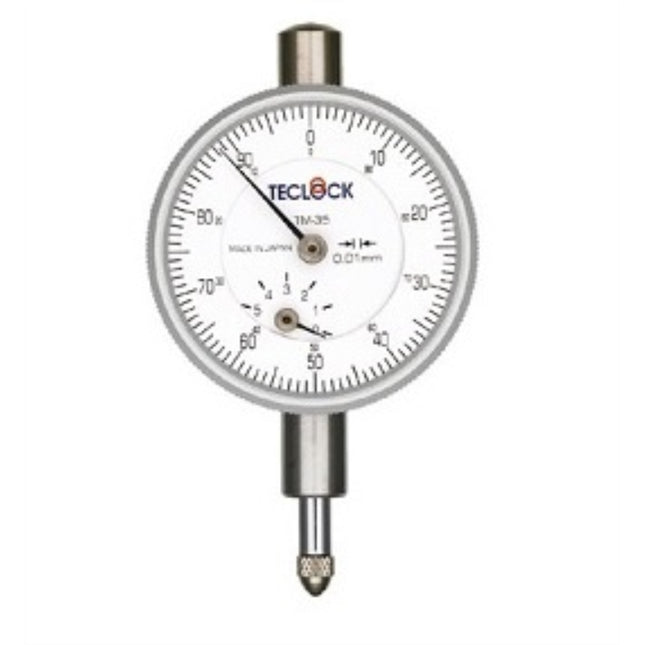

TECLOCK  Small Dial Indicator TM-35-01 Dial Indicator is surely utilized at manufacturing sites where dimensional high accuracy is needed to be confirmed. The graduation (1- graduation )depends on usage and Teclock offers 6 kinds of graduations, namely 0.0005mm, 0.001mm, 0.005mm, 0.01mm, 0.05mm and 0.1mm. The strokesare available from 0.08mm (the shortest) up to 150mm. Dial Indicator is normally not used independent but its stem or lug back is fixed to a jigand holds work piece with the measuring stand and contact point, and displacement volume is read with short hand and pointer. The dial indicatoris applied for direct measurement to measure actual dimension and comparative measurement for measuring displacement volume from a certainstandard dimension. As bezel diameter is small (minimum diameter=36mm), these are suitable to measure at the narrow setting space of production lines and many measuring points by being mounted to the machine. Lifting lever (Option) can be mounted (except for TM-34). In case that flat back is required, add suffix “f” to the end of model number (example =TM-35f). Measuring range 3.5mm, 4mm, 5mm, and 10mm are available in spite of small size. Bezel clamp (Option) can be mounted. Measuring ability can be changed. Model TM-35-01  Type Long-stroke type Graduation 0.1mm Measuring Range 10mm Dimensions Table Model A B C D E F G H I J TM-35-01 32.5 46 39 36.5 10 41.5 19 5 6.2 16.5   Specifications Graduation (mm) Measuring Range (mm) Repeatability (㎛) Indication Error (μm) Hysteresis (㎛) Standard Contact Point Measuring Force(N) We i g h t (g) Adjacent Error 1 Revolution Total Range 0.1 5 5 9 ±13 ±15 6 ZS-014 1.3 or less 70

Read more less

TECLOCK Dial Depth Gauge IM-880 As to internal caliper gauge IM-880 series, the distance between contact points facing outside is firstly set at standard dimension with ring gaugeor micrometer. Then, it is measured by inserting contact point into internal dimension part to be measured after its outer dial of which movestogether with rotated bezel is set at “0”. The displacement of indicator from “0” point of outer dial is to be measured at that time. The value addingto the read displacement to standard dimension or deducting it from standard dimension is the dimension of internal diameter. This seriesattaches spare contact point which cam set accurate dimension corresponding to size of internal dimension. External caliper gauge is opposite,namely reading the value by holding work piece with 2 contact points facing outside Internal caliper gauge to measure internal diameter of cylindrical workpiece and recessed groove diameter. It can measure groove diameter of "O" ring by modifying spare contact point. Set dimension within ±1mm (indication range 2mm) can be comparatively measured (880 series) by alternatively using auxiliary spare contact point in accordance with measured dimension. Please set standard dimension within measuring range with micrometer or ring gauge.   Specifications Graduation (mm) Measuring Range (mm) Indicating Range (mm) Indication Error Measuring Force (N) Weight (g) Spare Contact Point Maximum Measuring Depth A (mm) Entrance Diameter Φd (mm)* Groove Depth H (mm) Minimum Groove Width B (mm) Code No. Measuring Range (mm) 0.01 20~35 2 ±20 3 or less 196 ZS-423 20~23 70 15~18 2.5 2.5 ZS-424 22~25 15~18 3.5 ZS-425 24~27 16~19 4 ZS-426 26~29 18~21 4 ZS-427 28~31 20~23 4 ZS-428 30~33 22~25 4 ZS-429 32~35 24~27 4
