SMC Compact Cylinder

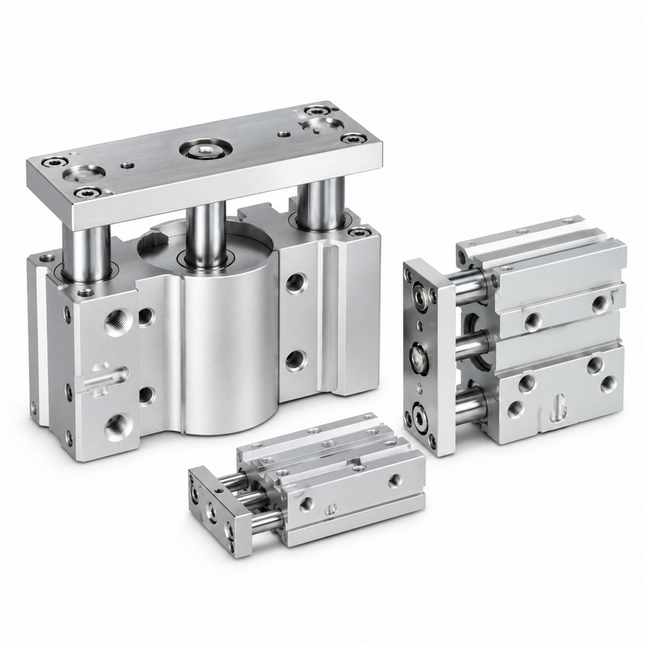

SMC MGPM25-40Z — MGP-Z series guided compact cylinder, ø25 bore with 40 mm stroke, slide bearing guide. Two guide rods carry the side load instead of the piston rod. This is the current replacement for the discontinued MGPM25-40. Specification — MGPM25-40Z Series MGP-Z (guided compact cylinder) Bore ø25 mm Stroke 40 mm Guide M — slide bearing Side load capacity Over 2× that of a conventional stopper cylinder Mounting 4 patterns, piping from 2 directions Product weight Approx. 1,090 g (MGPM25-40 was 1,160 g) Why a guided cylinder A plain cylinder rod is made to take axial load. Hang a plate or a gripper off the end and every stroke works the rod sideways in its bearing, which shows up as a leaking rod seal within months. The MGP carries that load on two guide rods running in their own bearings, so the piston rod only pushes. Replacing an MGPM25-40 SMC discontinued the original MGP in April 2012 and replaced it with MGP-Z. The Z generation shortened the guide rods by up to 22 mm and thinned the plates, cutting up to 24% from the mass — so the installed depth behind the cylinder is less than the old unit needed. Check the drawing before ordering, since that dimensional change is exactly what can catch out a like-for-like swap. Slide bearing or ball bushing The M suffix is the slide bearing version: higher load capacity, more tolerant of shock and contamination. The L version uses ball bushings for lower friction at higher speeds. Pick by whether the duty is heavy or fast. Ordering Order by the full code MGPM25-40Z. Bore, stroke and guide type are in the code. Strokes from 20 to 200 mm are available in this bore. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MGPM25-90Z — MGP-Z series guided compact cylinder, ø25 bore with 90 mm stroke, slide bearing guide. Two guide rods carry the side load instead of the piston rod, so an offset load will not bend the rod or wear the seal. Specification — MGPM25-90Z Series MGP-Z (guided compact cylinder) Bore ø25 mm Stroke 90 mm Guide M — slide bearing Mounting 4 patterns, piping from 2 directions Product weight 1,750 g Why a guided cylinder A plain cylinder rod is made to take axial load. Hang a plate or a gripper off the end and every stroke works the rod sideways in its bearing, which shows up as a leaking rod seal within months. The MGP carries that load on two guide rods running in their own bearings, so the piston rod only pushes. Longer stroke, more overhang At 90 mm the guide rods extend a long way when the cylinder is out, and the allowable side load falls as the stroke extends — the moment arm grows with it. Check the load and its offset against the stroke-end figures rather than the retracted rating, particularly on a vertical lift where the plate carries a gripper. What changed in the Z generation Shortened guide rods and thinner plates cut up to 24% from the mass of the previous design, and the rods are up to 22 mm shorter, which reduces the clearance needed behind the cylinder. Band-type and strong magnetic field auto switches mount directly without adding width. Ordering Order by the full code MGPM25-90Z. Bore, stroke and guide type are in the code. The L suffix gives a ball bushing guide for faster, lighter duty. Strokes from 20 to 200 mm are available in this bore. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MGPM25-50Z — MGP-Z series guided compact cylinder, ø25 bore with 50 mm stroke, slide bearing guide. Two guide rods carry the side load instead of the piston rod, so an offset load will not bend the rod or wear the seal. Specification — MGPM25-50Z Series MGP-Z (guided compact cylinder) Bore ø25 mm Stroke 50 mm Guide M — slide bearing Side load capacity Over 2× that of a conventional stopper cylinder Mounting 4 patterns, piping from 2 directions Product weight 1,140 g Why a guided cylinder A plain cylinder rod is made to take axial load. Hang a plate or a gripper off the end and every stroke works the rod sideways in its bearing, which shows up as a leaking rod seal within months. The MGP carries that load on two guide rods running in their own bearings, so the piston rod only pushes — which is what it is designed to do. Slide bearing or ball bushing The M suffix is the slide bearing version: higher load capacity, more tolerant of shock and contamination, and quieter. The ball bushing version (L) moves with less friction and suits higher speeds and more frequent cycling. Pick by whether the duty is heavy or fast. What changed in the Z generation Shortened guide rods and thinner plates cut up to 24% from the mass of the previous design, and the guide rods are up to 22 mm shorter — which reduces the clearance needed behind the cylinder when it is installed. Band-type and strong magnetic field auto switches mount directly without adding width. Ordering Order by the full code MGPM25-50Z. Bore, stroke and guide type are in the code. This series replaces the MGP (non-Z), discontinued in April 2012 — if your machine carries an MGPM25-50, this is the current equivalent, though mounting should be checked against the drawing before ordering. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

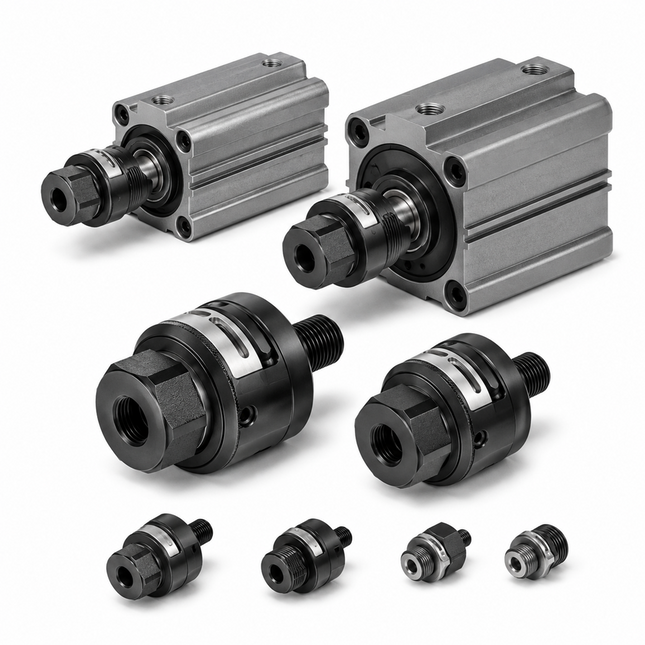

SMC JB40-8-125 — JB series floating joint, sized for ø40 compact cylinders. It absorbs shaft misalignment and out-of-parallel mounting between the rod and the driven part, so the two do not have to be aligned during installation. Specification — JB40-8-125 Series JB (floating joint, compact cylinder type) For cylinder bore ø40 mm Rod thread M8 Overall length 125 mm Product weight 150 g What it does A cylinder rod is made to take axial load, not side load. When the rod and the driven part are even slightly off centre or out of parallel, every stroke pushes the rod sideways, which wears the rod seal and the bushing and eventually bends the rod. A floating joint takes that movement in the joint instead, and removes the alignment work at installation. Typical use Fitted at the rod end of compact cylinders driving slides, gates and jigs — anywhere the cylinder and the load cannot be aligned precisely, or where the load position shifts during the stroke. Ordering Order by the full code JB40-8-125. The first number gives the cylinder bore the joint is designed for, the second the rod thread and the third the length, so all three must match the cylinder. The JB25 size is also available. Tell us your cylinder model and we will confirm the matching joint. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

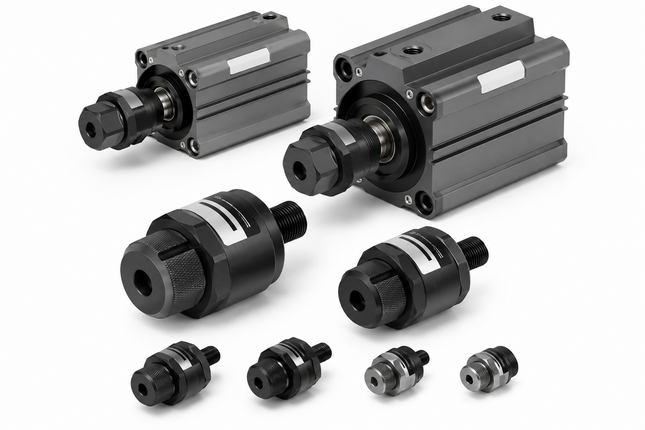

SMC JB25-6-100 — JB series floating joint, sized for ø25 compact cylinders. It absorbs shaft misalignment and out-of-parallel mounting between the rod and the driven part, so the two do not have to be aligned during installation. Specification — JB25-6-100 Type Floating joint, compact cylinder type For cylinder bore ø25 mm Rod thread M6 Overall length 100 mm Product weight 70 g What it does A cylinder rod is made to take axial load, not side load. When the rod and the driven part are even slightly off centre or out of parallel, every stroke pushes the rod sideways, which wears the rod seal and the bushing and eventually bends the rod. A floating joint takes that movement in the joint instead, and removes the alignment work at installation. Typical use Fitted at the rod end of compact cylinders driving slides, gates and jigs — anywhere the cylinder and the load cannot be aligned precisely, or where the load position shifts during the stroke. Ordering Order by the full code JB25-6-100. The first number gives the cylinder bore the joint is designed for, the second gives the rod thread and the third the length, so all three must match the cylinder. Tell us your cylinder model and we will confirm the matching joint. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC CQ2WL25-35DCM — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 25mm bore, 35mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WL25-35DCM Magnet No built-in magnet Bore 25mm Stroke 35mm Body option With rubber bumper, rod end male thread Auto switch Without auto switch Port size M5X0.8 Fluid Air Action Double acting, double rod Rod end male thread M10X1.25 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Piston speed min 50 mm/s Weight 416 g Specification values above are for model code CQ2WL25-35DCM as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WL25-15D — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 25mm bore, 15mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WL25-15D Magnet No built-in magnet Bore 25mm Stroke 15mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size M5X0.8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M6X1.0 Ambient temp. min -10 °C Ambient temp. max 70 °C Piston speed min 50 mm/s Weight 348 g Specification values above are for model code CQ2WL25-15D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WL25-10D — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 25mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WL25-10D Magnet No built-in magnet Bore 25mm Stroke 10mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size M5X0.8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M6X1.0 Ambient temp. min -10 °C Ambient temp. max 70 °C Piston speed min 50 mm/s Weight 331 g Specification values above are for model code CQ2WL25-10D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WL16-15D — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 16mm bore, 15mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WL16-15D Magnet No built-in magnet Bore 16mm Stroke 15mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size M5X0.8 Fluid Air Action Double acting, double rod Min. operating pressure 0.07 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M4X0.7 Ambient temp. min -10 °C Ambient temp. max 70 °C Piston speed min 50 mm/s Weight 148 g Specification values above are for model code CQ2WL16-15D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB80-50DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 80mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB80-50DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 80mm Stroke 50mm Body option Rod end male thread Auto switch Without auto switch Port size 3/8 Fluid Air Action Double acting, double rod Rod end male thread M22X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 1,760 g Specification values above are for model code CQ2WB80-50DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB80-40DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 80mm bore, 40mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB80-40DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 80mm Stroke 40mm Body option Rod end male thread Auto switch Without auto switch Port size 3/8 Fluid Air Action Double acting, double rod Rod end male thread M22X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 1,608 g Specification values above are for model code CQ2WB80-40DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB80-30DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 80mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB80-30DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 80mm Stroke 30mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 3/8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M16X2.0 Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 1,455 g Specification values above are for model code CQ2WB80-30DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB80-20DCMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 80mm bore, 20mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB80-20DCMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 80mm Stroke 20mm Body option With rubber bumper, rod end male thread Auto switch Without auto switch Port size 3/8 Fluid Air Action Double acting, double rod Rod end male thread M22X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 1,302 g Specification values above are for model code CQ2WB80-20DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB80-10DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 80mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB80-10DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 80mm Stroke 10mm Body option Rod end male thread Auto switch Without auto switch Port size 3/8 Fluid Air Action Double acting, double rod Rod end male thread M22X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 1,149 g Specification values above are for model code CQ2WB80-10DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63TF-50DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63TF-50DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Port thread G Stroke 50mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Weight 935 g Specification values above are for model code CQ2WB63TF-50DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-60DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 60 stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-60DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 60 Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end female thread M10X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 1,000 g Specification values above are for model code CQ2WB63-60DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-50DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-50DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 50mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 935 g Specification values above are for model code CQ2WB63-50DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-50DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-50DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 50mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 935 g Specification values above are for model code CQ2WB63-50DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-50DCMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-50DCMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 50mm Body option With rubber bumper, rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 935 g Specification values above are for model code CQ2WB63-50DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-40DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 40mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-40DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 40mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 862 g Specification values above are for model code CQ2WB63-40DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-30DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-30DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 30mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 790 g Specification values above are for model code CQ2WB63-30DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-30DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-30DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 30mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 790 g Specification values above are for model code CQ2WB63-30DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-30DCMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-30DCMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 30mm Body option With rubber bumper, rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 790 g Specification values above are for model code CQ2WB63-30DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-20DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 20mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-20DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 20mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 718 g Specification values above are for model code CQ2WB63-20DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-10DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-10DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 10mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 646 g Specification values above are for model code CQ2WB63-10DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB63-10DCZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 63mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB63-10DCZ Magnet No built-in magnet Mounting Through hole (standard) Bore 63mm Stroke 10mm Body option With rubber bumper Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 646 g Specification values above are for model code CQ2WB63-10DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-75DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 75mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-75DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 75mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 1,122 g Specification values above are for model code CQ2WB50-75DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-75DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 75mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-75DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 75mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 1,122 g Specification values above are for model code CQ2WB50-75DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-50DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-50DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 50mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 830 g Specification values above are for model code CQ2WB50-50DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-50DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-50DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 50mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 830 g Specification values above are for model code CQ2WB50-50DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-40DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 40mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-40DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 40mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 747 g Specification values above are for model code CQ2WB50-40DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-30DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-30DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 30mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 664 g Specification values above are for model code CQ2WB50-30DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-30DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-30DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 30mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 664 g Specification values above are for model code CQ2WB50-30DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-25DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 25mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-25DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 25mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 622 g Specification values above are for model code CQ2WB50-25DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-20DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 20mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-20DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 20mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 580 g Specification values above are for model code CQ2WB50-20DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-15DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 15mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-15DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 15mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 538 g Specification values above are for model code CQ2WB50-15DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-10DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-10DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 10mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M10X1.5 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 497 g Specification values above are for model code CQ2WB50-10DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-10DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-10DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 10mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 497 g Specification values above are for model code CQ2WB50-10DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-10DCZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-10DCZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 10mm Body option With rubber bumper Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end female thread M10X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 497 g Specification values above are for model code CQ2WB50-10DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-10DCMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 10mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-10DCMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 10mm Body option With rubber bumper, rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 497 g Specification values above are for model code CQ2WB50-10DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB50-100DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 50mm bore, 100mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB50-100DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 50mm Stroke 100mm Body option Rod end male thread Auto switch Without auto switch Port size 1/4 Fluid Air Action Double acting, double rod Rod end male thread M18X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 1,331 g Specification values above are for model code CQ2WB50-100DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-5DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 5mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-5DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 5mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M8X1.25 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 279 g Specification values above are for model code CQ2WB40-5DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-50DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-50DZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 50mm Body option Standard (rod end female thread) Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M8X1.25 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 543 g Specification values above are for model code CQ2WB40-50DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-50DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 50mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-50DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 50mm Body option Rod end male thread Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Rod end male thread M14X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 543 g Specification values above are for model code CQ2WB40-50DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-45DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 45mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-45DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 45mm Body option Rod end male thread Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Rod end male thread M14X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Ambient temp. min -10 °C Ambient temp. max 70 °C Weight 514 g Specification values above are for model code CQ2WB40-45DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-40DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 40mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-40DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 40mm Body option Rod end male thread Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Rod end male thread M14X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 484 g Specification values above are for model code CQ2WB40-40DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-30DMZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-30DMZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 30mm Body option Rod end male thread Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Rod end male thread M14X1.5 Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 426 g Specification values above are for model code CQ2WB40-30DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC CQ2WB40-30DCZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 40mm bore, 30mm stroke, double acting, double rod, no built-in magnet, without auto switch. Specification — CQ2WB40-30DCZ Magnet No built-in magnet Mounting Through hole (standard) Bore 40mm Stroke 30mm Body option With rubber bumper Auto switch Without auto switch Port size 1/8 Fluid Air Action Double acting, double rod Min. operating pressure 0.05 MPa Max. operating pressure 1.0 MPa Proof pressure 1.5 MPa Lubrication Non-lube Rod end female thread M8X1.25 Fluid temp. min -10 °C Fluid temp. max 70 °C Weight 426 g Specification values above are for model code CQ2WB40-30DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC CQ2W-Z series A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25). There is no protruding auto switch. Light weight: reduced by 5~13% (compared to the previous CQ2) Newly added support bracket for double clevis and compact foot type bracket Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately) Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less
