Walter

WALTER Single Open Ended Spanner ● Single open ended spanner● DIN 894 - ISO 3318● Special Steel, Position of Open End 15º● Up to Size 38mm: Phosphatized (PH)● From size 41mm: Steel Gray (SG)   SPECIFICATIONS Product Code. Size (mm) T (mm) L (mm) Weight (G) 208-0338 14 6 140 52 208-0347 17 6.5 160 57 208-0356 19 7.5 170 86 208-0365 21 8.5 195 116 208-0374 22 8.5 195 118 208-0392 24 9.5 205 145 208-0408 27 10.5 235 225 208-0417 30 12 260 285 208-0426 32 13 265 330 208-0444 36 14 300 428 208-0453 38 14 300 424 208-0462 41 15 345 545 208-0471 46 16 375 800 208-0480 50 17 410 980 208-0499 55 18 455 1260 208-0505 60 19 490 1650 208-0514 65 20 575 1895 208-0523 70 21 570 2340 208-0532 75 22 610 2610 208-0541 80 23 645 3330 208-0550 90 26 850 3455 208-0569 95 27 850 6050

Read more less

WALTER Hook Wrenches With Pin 265S ● Hook wrenches with Pin● DIN 1810 Form B● For Round nuts with pin holes as per DIN 1816,● Special Steel, Tempered, Black SPECIFICATIONS Product Code. Size (mm) L (mm) Weight (G) 208-2123 16~18 110 40 208-2132 20~22 110 40 208-2141 25~28 136 55 208-2150 30~32 136 55 208-2169 34~36 170 100 208-2178 40~42 170 100 208-2187 45~50 205 165 208-2196 52~55 205 165 208-2202 58~62 240 270 208-2211 68~75 240 270 208-2220 80~90 280 410 208-2239 95~100 280 410 208-2257 110~115 335 780 208-2266 120~130 335 780 208-2275 135~145 380 1000 208-2284 155~165 380 1000 208-2293 180~195 470 1580

Read more less

WALTER Hook Wrenches With Nose ● Hook wrenches with nose● DIN 1810 Form A● For Slotted nuts as per DIN 1804,● Special Steel, Tempered, Black   SPECIFICATIONS Product Code. Size (mm) L (mm) Weight (G) 208-1920 16~20 110 25 208-1939 25~28 136 45 208-1948 30~32 136 50 208-1957 34~36 170 90 208-1966 40~42 170 90 208-1975 45~50 206 155 208-1984 52~55 206 160 208-1993 58~62 242 255 208-2008 68~75 242 255 208-2017 80~90 280 410 208-2026 95~100 280 385

Read more less

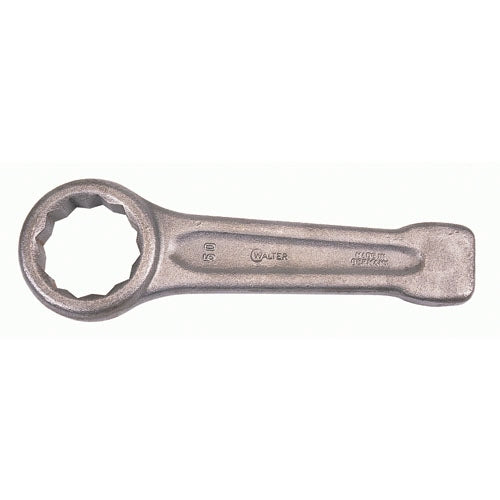

WALTER Slugging Ring Wrench DIN 7444 SPECIFICATIONS Product Code. Size (mm) D (mm) m (mm) L (mm) Weight (G) 208-0019 24 43 15 165 400 208-0028 27 46 16 180 400 208-0037 30 52 17 190 500 208-0046 32 52 17 190 500 208-0055 34 52 17 190 500 208-0064 35 52 17 190 500 208-0073 36 58 18 205 500 208-1902 38 58 18 205 500 208-0082 40 58 18 205 500 208-0091 41 66 20 230 800 208-0107 42 66 20 230 800 208-0125 46 74 22 240 1000 208-0134 50 80 24 255 1100 208-0143 54 80 24 255 1100 208-0152 55 86 25 270 1500 208-0161 60 93 26 280 1800 208-0189 65 102 30 300 2200 208-0198 70 110 33 330 3300 208-0204 75 110 33 330 3300 208-0213 80 126 36 360 4500 208-0222 85 126 36 360 4500 208-0231 90 142 40 390 5500 208-0240 95 142 40 420 5300 208-0259 100 155 45 420 6500 208-0268 105 155 45 420 6500 208-0277 110 170 48 450 8000 208-0286 115 170 48 450 8000 208-0295 120 182 54 480 10000 208-0301 130 202 58 520 13200 208-0310 135 202 58 520 13000

Read more less
