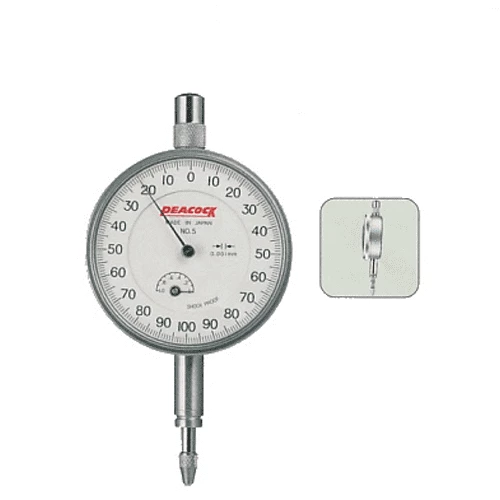

Peacock Standard Dial Gauges; 0.001mm and 0.005mm JIS B 7503, 5F

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.001mm and 0.005mm  JIS B 7503, 5F

Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model 5F
Graduation 0.001mm
Range 1mm
Flat back



Model

Graduation  (mm)

Range (mm)

Reading

Indication error (µm)

Backward error (µm)

Repeatability (µm)

Measuring force less than (N)

Revolution

Whole measuring range

1/10

1/2

One

Two

5F

0.001

1

0 -100-0

2.5

±3

±4

±4

±5

3

0.5

1.5



Dimensions (mm)
Model A B C D E F G H I
5B 60 41.5 18.5 53 14.5 - 4 6.5 49



Product form

Peacock Standard Dial Gauges; 0.001mm and 0.005mm  JIS B 7503, 5F Dial Gauges are widely used manufacturing plants. ○ The... Read more

SKU: 5-F

$105.70 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Dec 11, 2024 17:00:00 +0900

    Description

    Peacock Standard Dial Gauges; 0.001mm and 0.005mm  JIS B 7503, 5F

    Dial Gauges are widely used manufacturing plants.
    ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
    ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
    ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
    ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

    Model 5F
    Graduation 0.001mm
    Range 1mm
    Flat back



    Model

    Graduation  (mm)

    Range (mm)

    Reading

    Indication error (µm)

    Backward error (µm)

    Repeatability (µm)

    Measuring force less than (N)

    Revolution

    Whole measuring range

    1/10

    1/2

    One

    Two

    5F

    0.001

    1

    0 -100-0

    2.5

    ±3

    ±4

    ±4

    ±5

    3

    0.5

    1.5



    Dimensions (mm)
    Model A B C D E F G H I
    5B 60 41.5 18.5 53 14.5 - 4 6.5 49
