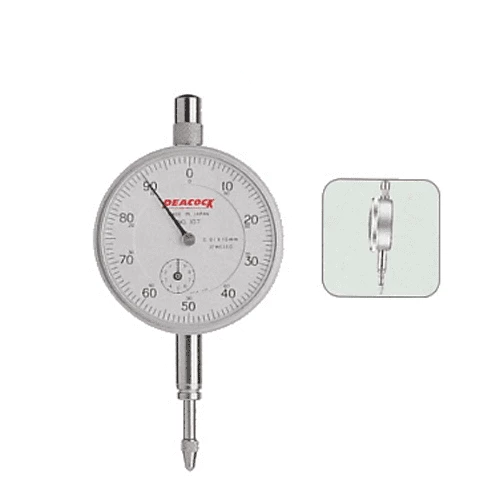

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 107F

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 107F

Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model 107F
Graduation 0.01mm
Range 10mm
Flat back



Model

Graduation  (mm)

Range (mm)

Reading

Indication error (µm)

Backward error (µm)

Repeatability (µm)

Measuring force less than (N)

Revolution

Whole measuring range

1/10

1/2

One

Two

107F

0.01

10

±0 -50- 100

8

±9

±10

±15

±15

5

5

1.4



Dimensions (mm)
Model A B C D E F G H I
107F 65 41.5 18.5 53 14.5 - 4 6.5 49



Product form

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 107F Dial Gauges are widely used manufacturing plants. ○ The stem,... Read more

SKU: 107-F

$48.84 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 107F

      Dial Gauges are widely used manufacturing plants.
      ○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
      ○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
      ○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
      ○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

      Model 107F
      Graduation 0.01mm
      Range 10mm
      Flat back



      Model

      Graduation  (mm)

      Range (mm)

      Reading

      Indication error (µm)

      Backward error (µm)

      Repeatability (µm)

      Measuring force less than (N)

      Revolution

      Whole measuring range

      1/10

      1/2

      One

      Two

      107F

      0.01

      10

      ±0 -50- 100

      8

      ±9

      ±10

      ±15

      ±15

      5

      5

      1.4



      Dimensions (mm)
      Model A B C D E F G H I
      107F 65 41.5 18.5 53 14.5 - 4 6.5 49
