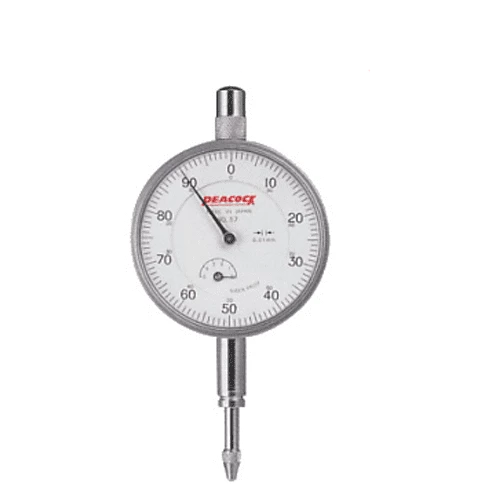

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57

  • VendorPEACOCK

Description

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57

Dial Gauges are widely used manufacturing plants.
○ The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
○ The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
○ The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof and dust-proof in construction.
○ The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

Model 57
Graduation 0.01mm
Range 5mm
Lug back



Model

Graduation  (mm)

Range (mm)

Reading

Indication error (µm)

Backward error (µm)

Repeatability (µm)

Measuring force less than (N)

Revolution

Whole measuring range

1/10

1/2

One

Two

57

0.01

5

±0 -50- 100

8

±9

±10

±15

±15

5

5

1.4



Dimensions (mm)
Model A B C D E F G H I
57 65 41.5 18.5 53 14.5 20 4 6.5 49



Product form

Peacock Standard Dial Gauges; 0.01mm, JIS B 7503 , 57 Dial Gauges are widely used manufacturing plants. ○ The stem,... Read more

SKU: 57

$65.38 Excl. VAT
