Peacock Super low measuring force Test Indicators, PCN-1LE

  • VendorPEACOCK

Description

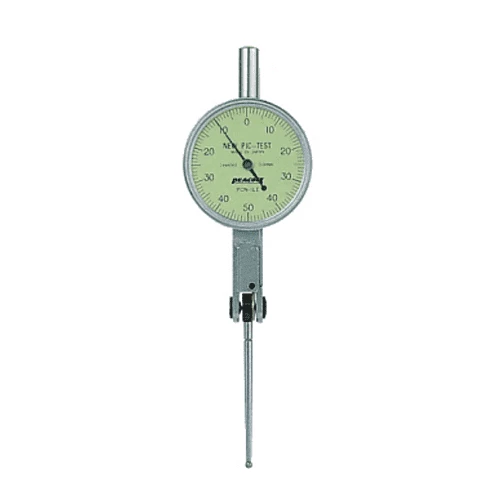

Peacock Super low measuring force Test Indicators, PCN-1LE

Model PCN-1LE
Graduation 0.01mm
Range 1.0mm

Measuring force 0.05N
Long contact point (L = 42.8mm)



  • Lever dial gauge that is suitable for flaw-free measure of an object under measurement and for measurement of plastic products with a low measuring force.
  • A measuring force is 0.05N, 0.1N or less that is lower than a 0.4N measuring force in the conventional dial gauges.
  • Specifications and outer dimensions are the same as those of standard PC and PCN types, except a measuring force.



Graduation (mm) Range (mm) Reading Accuracy (µm) Measuring force less than (N) L(mm)
Wide-range forward accuracy Adjacent error Backward error
0.01 1 0 - 50 - 0 10 5 4 0.05 42.8



[PEACOCK] Super low measuring force Test Indicators, PCN-1LE

Product form

Peacock Super low measuring force Test Indicators, PCN-1LE Model PCN-1LE Graduation 0.01mm Range 1.0mm Measuring force 0.05NLong contact point (L... Read more

SKU: PCN-1LE

$231.26 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Apr 26, 2024 17:00:00 +0900

    Description

    Peacock Super low measuring force Test Indicators, PCN-1LE

    Model PCN-1LE
    Graduation 0.01mm
    Range 1.0mm

    Measuring force 0.05N
    Long contact point (L = 42.8mm)



    • Lever dial gauge that is suitable for flaw-free measure of an object under measurement and for measurement of plastic products with a low measuring force.
    • A measuring force is 0.05N, 0.1N or less that is lower than a 0.4N measuring force in the conventional dial gauges.
    • Specifications and outer dimensions are the same as those of standard PC and PCN types, except a measuring force.



    Graduation (mm) Range (mm) Reading Accuracy (µm) Measuring force less than (N) L(mm)
    Wide-range forward accuracy Adjacent error Backward error
    0.01 1 0 - 50 - 0 10 5 4 0.05 42.8



    [PEACOCK] Super low measuring force Test Indicators, PCN-1LE
