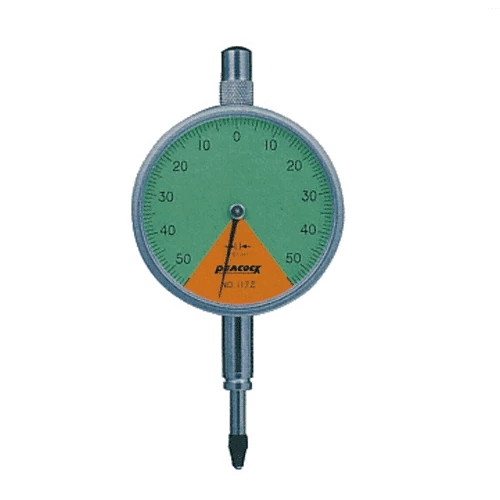

Peacock One Revolution Dial Gauges; 0.01mm , Range 1.0mm, 117Z

  • VendorPEACOCK

Description

Peacock One Revolution Dial Gauges; 0.01mm , Range 1.0mm, 117Z

  • Model 117Z
  • Graduation 0.01mm
  • Range 1.0mm
  • Contact Point ( XB-1 )
  • Flat back



    • These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous rigorous continuous measurement.
    • The long stem is made of stainless steel, is high in strenght and is malfunction-free due to fastening.
    • The dial faces except No. 18 and 17B are easy to read with green and orange (dead zone)
      Model Graduation  (mm)

      Range (mm)

      (Free stroke)

      		 Reading Indication error (µm) Backward error (µm) Repeatability (µm) Measuring force less than (N)
      Revolution Whole measuring range
      1/10 1/2 One Two
      117Z 0.01 1.0(7.0) 50-0-50 8 ±9 ±10 - - 5 5 1.4



      Dimensions (mm)
      Model A B C D E F G H I
      117Z 65 41.5 18.5 53 14.5 20 4 6.5 49



      Product form

      Peacock One Revolution Dial Gauges; 0.01mm , Range 1.0mm, 117Z Model 117Z  Graduation 0.01mm  Range 1.0mm  Contact Point ( XB-1... Read more

      SKU: 117-Z

      $182.23 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
