Description

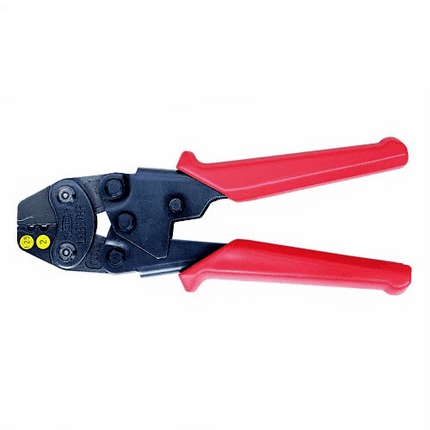

Mini crimping tool AK1MA For non-insulated terminals for copper wire. For non-insulated sleeves for copper wire.
Mini crimping tool AK1MA For non-insulated terminals for copper wire. For non-insulated sleeves for copper wire.
• Pocket-sized tool, featuring lightweight and compact design that fits hands.
• Small body and powerful crimping
• Handle weight has been reduced by approx. 50%. (for 2 sq., compared to earlier models)
• Smart collar design. Forming check mechanism incorporated into the body.
• The tool is easier to use with the extended release upward.
Use / Application
• For non-insulated terminals for copper wire.
• For non-insulated sleeves (P-B) for copper wire.
| Product Code. |
Model No. |
(Product) weight |
size1 |
size2 |
Use range |
| 215-0017 |
AK1MA |
250g |
166mm |
54mm |
1.25、2㎜2 |
IMPORTANT SAFETY INSTRUCTIONS
◆ Precautions in use
Do not crimp or work nearby live wires. This may result in electric shock.
Use this tool properly with compatible cable connectors (terminals and sleeves) and cables.
To prevent crimping failure, and to ensure crimping performance, the tool should be periodically inspected by Lobtex.
! CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
* Specifications may be changed for improvement without prior notice.
