Description

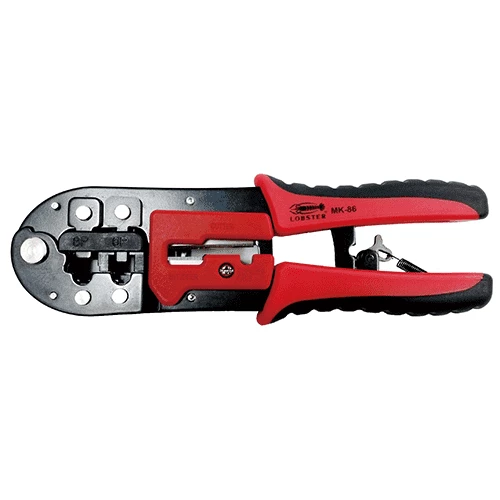

LOBSTER Modular Crimping Tool MK-86
Suitable for LAN / telephone indoor wiring.
Enables cable cutting, stripping and crimping with a single tool.
With a ratchet mechanism, this tool ensures simple and secure crimping work.
· This tool is easy to use, because all types of work can be done from the front side.
Use / Application
· Applicable to modular plugs 8P8C (RJ45), 6P6C / 4C / 2C (RJ11 / RJ12).
A safety cover is provided for the cutting area.
· This tool is equipped with a round cable stripping guide (applicable outer diameter: φ5 to 5.5).
· When the ratchet is released, both right and left arm are separated, making it easy to insert cables into the cutting area.
Specifications
| Product Code. |
Model No. |
(Product) weight |
size1 |
size2 |
Use range |
| 215-7834 |
MK86 |
345g |
205mm |
65mm |
modular plugs 8P8C(RJ45)、6P6C・6P4C・6P2C(RJ11・RJ12) |
IMPORTANT SAFETY INSTRUCTIONS
· Spare blades (for cutting and stripping) are sold separately.
Do not use modular plugs or cables.
· This tool may not be applicable to the original extension plugs or the like.
· Apply oil to sliding parts of the tool about once or twice a month. If this tool is used without sufficient oil, the shaft will wear down remarkably, causing crimping failure.
! CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
* Specifications may be changed for improvement without prior notice.
