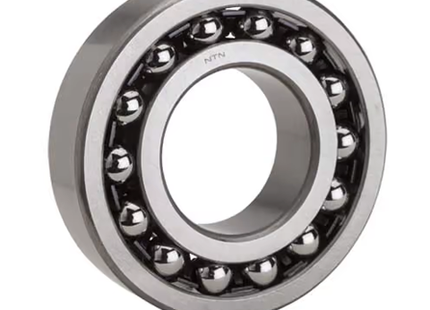

NTN 1305K Self-Aligning Ball Bearing - 25 mm

Description

NTN1305K

Self Aligning Ball Bearings w/ Tapered Bore



SPECIFICATIONS

Bore Type Tapered
Bore Diameter 25 mm, 0.9843 in
Outside Diameter 62 mm, 2.4409 in
Overall Width 17 mm, 0.6693 in
Closure Type Open
Cage Type Pressed
Internal Clearance CN
Operating Temperature Range -40 to 250 ºF
Seal Material None
Dynamic Load Capacity 4100 lbf
Seal Type None
Static Load Capacity 1120 lbf
Precision Rating Class 0
Maximum RPM 13000 rpm
Bearing Material High Carbon Chrome Steel
Cage Material Steel
Harmonization Code 8482.10.5060
Outer Ring Width 0.6693 in; 17.000 mm
Inner Ring Width 17.000 mm, 0.6693 in
Fillet Radius 1.100 mm, 0.0433 in
Manufacturer UPC Number 4547359746303
Weight 0.553 lb







1. Design features and characteristics

The outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways.
The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment as shown in Fig. 1.
Since axial load capacity is limited, self- aligning ball bearing are not suitable for applications with heavy axial loads.

It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.



2. Standard cage type


All bearing series are equipped with a pressed cage, except 2321S and 2322S, which are equipped with a machined cage.
Self-Aligning Ball Bearings
It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.

Table 1 Standard cage types of spherical ball bearings








3. Ball protrusion


Bearings with part numbers listed in Table 2 below have balls which protrude slightly from the bearing face as illustrated in Fig. 2. The total width dimensions are shown in Table 2.

4.  Allowable misalignment angle

The allowable misalignment angle can be determined by the following function. This degree of allowable misalignment may be limited by the design of mating components around the bearing.
Normal load ....................... 1/15



5.  Precautions for using self-aligning ball bearings

Self-aligning ball bearings are unable to support large axial loads and therefore axial loading shall be limited.
Please consider using self-aligning roller bearings when a large axial load is to be applied.

Product form

NTN1305K Self Aligning Ball Bearings w/ Tapered Bore SPECIFICATIONS Bore Type Tapered Bore Diameter 25 mm, 0.9843 in Outside Diameter... Read more

SKU: 1305K

$13.40 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      NTN1305K

      Self Aligning Ball Bearings w/ Tapered Bore



      SPECIFICATIONS

      Bore Type Tapered
      Bore Diameter 25 mm, 0.9843 in
      Outside Diameter 62 mm, 2.4409 in
      Overall Width 17 mm, 0.6693 in
      Closure Type Open
      Cage Type Pressed
      Internal Clearance CN
      Operating Temperature Range -40 to 250 ºF
      Seal Material None
      Dynamic Load Capacity 4100 lbf
      Seal Type None
      Static Load Capacity 1120 lbf
      Precision Rating Class 0
      Maximum RPM 13000 rpm
      Bearing Material High Carbon Chrome Steel
      Cage Material Steel
      Harmonization Code 8482.10.5060
      Outer Ring Width 0.6693 in; 17.000 mm
      Inner Ring Width 17.000 mm, 0.6693 in
      Fillet Radius 1.100 mm, 0.0433 in
      Manufacturer UPC Number 4547359746303
      Weight 0.553 lb







      1. Design features and characteristics

      The outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways.
      The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment as shown in Fig. 1.
      Since axial load capacity is limited, self- aligning ball bearing are not suitable for applications with heavy axial loads.

      It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.



      2. Standard cage type


      All bearing series are equipped with a pressed cage, except 2321S and 2322S, which are equipped with a machined cage.
      Self-Aligning Ball Bearings
      It is recommended to use an adapter on a self-aligning ball bearing with a tapered bore inner diameter for ease of installation and disassembly. These bearings and adapters are often used on drive shaft applications.

      Table 1 Standard cage types of spherical ball bearings








      3. Ball protrusion


      Bearings with part numbers listed in Table 2 below have balls which protrude slightly from the bearing face as illustrated in Fig. 2. The total width dimensions are shown in Table 2.

      4.  Allowable misalignment angle

      The allowable misalignment angle can be determined by the following function. This degree of allowable misalignment may be limited by the design of mating components around the bearing.
      Normal load ....................... 1/15



      5.  Precautions for using self-aligning ball bearings

      Self-aligning ball bearings are unable to support large axial loads and therefore axial loading shall be limited.
      Please consider using self-aligning roller bearings when a large axial load is to be applied.
