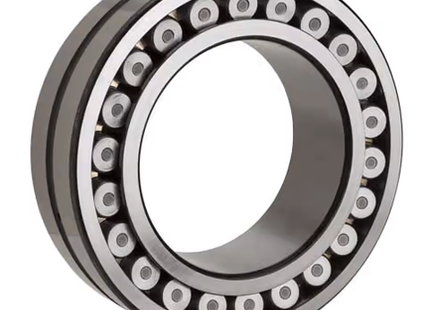

NTN 22207EAW33C3 Spherical Roller Bearing D= 35mm

Description

NTN 22207EAW33C3

Spherical Roller Bearing - 35 mm ID, 72 mm OD, 23 mm Width, Round Bore, Open, C3


SPECIFICATIONS

Bore Type Round
Outer Ring Type Not Split
Bore Diameter 35.000 mm, 1.3780 in
Outside Diameter 72.000 mm, 2.8346 in
Overall Width 23.000 mm, 0.9055 in
Cage Type Pressed
Closure Type Open
Internal Clearance C3
Lubrication Hole Type Lubrication Groove & Holes
Maximum Operating Temperature 400 ºF
Dynamic Load Capacity 22500 lbf
Static Load Capacity 20700 lbf
Maximum RPM 9400 rpm
Operating Temperature Range -40 to 400 ºF
Cage Material Steel
Bearing Material Through Hardened Steel
Precision Rating Not Rated
Finish/Coating Uncoated
Outer Ring Width 0.9055 in; 23.000 mm
Inner Ring Width 23.000 mm, 0.9055 in
Fillet Radius 1.100 mm, 0.0433 in
Series 222






1. Design features and characteristics

Spherical roller bearings consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways. (Refer to Fig. 1) This bearing has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
Spherical roller bearings have a large capacity for radial loads, axial loads in either direction, and combined loads. They are also suited for applications where vibration and shock loads are encountered. When spherical roller bearings are used with a vertical shaft or under a large axial load, the load on the rollers of the row that is not subject to the axial load becomes small, and the resulting skidding on the rollers may result in wear. If the ratio of the axial load to the radial load exceeds the factor e in the dimension table (Fa/Fr > e), consult NTN Engineering.
In addition to spherical roller bearings with cylindrical bores, spherical roller bearings with tapered bores are also available. Bearings with tapered bores are specified by the suffix “K” at the end of the spherical roller bearing part number. The standard taper ratio is 1:12 for bearings with a “K” suffix; for bearings in series 240 and 241, the suffix “K30” indicates the taper ratio for a bearing is 1:30. Most tapered bore bearings incorporate the use of adapters and withdrawal sleeves for shaft mounting.







Product form

NTN 22207EAW33C3 Spherical Roller Bearing - 35 mm ID, 72 mm OD, 23 mm Width, Round Bore, Open, C3 SPECIFICATIONS Bore... Read more

SKU: 22207EAW33C3

$50.95 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      NTN 22207EAW33C3

      Spherical Roller Bearing - 35 mm ID, 72 mm OD, 23 mm Width, Round Bore, Open, C3


      SPECIFICATIONS

      Bore Type Round
      Outer Ring Type Not Split
      Bore Diameter 35.000 mm, 1.3780 in
      Outside Diameter 72.000 mm, 2.8346 in
      Overall Width 23.000 mm, 0.9055 in
      Cage Type Pressed
      Closure Type Open
      Internal Clearance C3
      Lubrication Hole Type Lubrication Groove & Holes
      Maximum Operating Temperature 400 ºF
      Dynamic Load Capacity 22500 lbf
      Static Load Capacity 20700 lbf
      Maximum RPM 9400 rpm
      Operating Temperature Range -40 to 400 ºF
      Cage Material Steel
      Bearing Material Through Hardened Steel
      Precision Rating Not Rated
      Finish/Coating Uncoated
      Outer Ring Width 0.9055 in; 23.000 mm
      Inner Ring Width 23.000 mm, 0.9055 in
      Fillet Radius 1.100 mm, 0.0433 in
      Series 222






      1. Design features and characteristics

      Spherical roller bearings consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways. (Refer to Fig. 1) This bearing has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
      Spherical roller bearings have a large capacity for radial loads, axial loads in either direction, and combined loads. They are also suited for applications where vibration and shock loads are encountered. When spherical roller bearings are used with a vertical shaft or under a large axial load, the load on the rollers of the row that is not subject to the axial load becomes small, and the resulting skidding on the rollers may result in wear. If the ratio of the axial load to the radial load exceeds the factor e in the dimension table (Fa/Fr > e), consult NTN Engineering.
      In addition to spherical roller bearings with cylindrical bores, spherical roller bearings with tapered bores are also available. Bearings with tapered bores are specified by the suffix “K” at the end of the spherical roller bearing part number. The standard taper ratio is 1:12 for bearings with a “K” suffix; for bearings in series 240 and 241, the suffix “K30” indicates the taper ratio for a bearing is 1:30. Most tapered bore bearings incorporate the use of adapters and withdrawal sleeves for shaft mounting.
