Peacock Linear Gauges ; 10mm range,D-10

  • VendorPEACOCK

Description

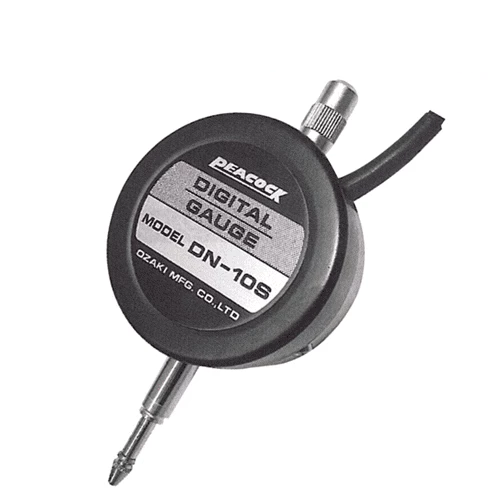

Peacock Linear Gauges ; 10mm range,D-10

 Measurement range (0 - 20mm)

  • 10mm and 20mm measurement ranges are the easiest to use.
  • Used in conjunction with digital counters, these gauges can be set up in places
  • where dial gauges are now being used.
  • Set the gauge by either stem or lug back.
  • For lifting spindle, both lever and release types are available.



Rectangular wave output typ (DN-10/DN-10S/DN-20/DN-20S)

  • For use in electrically noisy environments.
  • For applications requiring extra long cables. (10 to 50 meters are available)



[PEACOCK] Linear Gauges ; 10mm range,D-10

Specifications
Model D-10
Range 10mm
Resolution 0.01mm
Accuracy (excluding quantized error) 0.005mm
Measuring force Less than 1.0N
Cable length 2m
Mounting method Ø8mm stem or 6.5mm hole on lug back
Contact point M2.5 × 0.45 SØ2.4mm steel (X-2)
Operating temperature 0 - 40ºC
Weight 220g
Output Signal 90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Rectangular wave (L=0v H=5v)
Compatible standard counters C-500 / C-700
CM-5B (*except DN-10S, DN-20S)
Options * Release (RE-4)  Lifting lever (LL-1) * Release (RE-4)
* Dust proof rubber (BG-10) * Flat back (GB3-D20)
* Flat back (GB3-D1O) , screws (S-110)
* Customer must specify if application is up-side-down.
  The measuring force changes when the gauge is inverted.

* Features

DN-10 DN-10S DN-20 DN-20S
1. Recommended for locations where cable extension (10 to 50 meters) is necessary.
2. Recommended for use in electrically noisy environments.
Notes of wiring : A signal wire should be duct wiring apart from other Power lines.



[PEACOCK] Linear Gauges ; 10mm range,D-10

Product form

Peacock Linear Gauges ; 10mm range,D-10  Measurement range (0 - 20mm) 10mm and 20mm measurement ranges are the easiest to... Read more

SKU: D-10

$578.95 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Oct 16, 2024 17:00:00 +0900

    Description

    Peacock Linear Gauges ; 10mm range,D-10

     Measurement range (0 - 20mm)

    • 10mm and 20mm measurement ranges are the easiest to use.
    • Used in conjunction with digital counters, these gauges can be set up in places
    • where dial gauges are now being used.
    • Set the gauge by either stem or lug back.
    • For lifting spindle, both lever and release types are available.



    Rectangular wave output typ (DN-10/DN-10S/DN-20/DN-20S)

    • For use in electrically noisy environments.
    • For applications requiring extra long cables. (10 to 50 meters are available)



    [PEACOCK] Linear Gauges ; 10mm range,D-10

    Specifications
    Model D-10
    Range 10mm
    Resolution 0.01mm
    Accuracy (excluding quantized error) 0.005mm
    Measuring force Less than 1.0N
    Cable length 2m
    Mounting method Ø8mm stem or 6.5mm hole on lug back
    Contact point M2.5 × 0.45 SØ2.4mm steel (X-2)
    Operating temperature 0 - 40ºC
    Weight 220g
    Output Signal 90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
    Rectangular wave (L=0v H=5v)
    Compatible standard counters C-500 / C-700
    CM-5B (*except DN-10S, DN-20S)
    Options * Release (RE-4)  Lifting lever (LL-1) * Release (RE-4)
    * Dust proof rubber (BG-10) * Flat back (GB3-D20)
    * Flat back (GB3-D1O) , screws (S-110)
    * Customer must specify if application is up-side-down.
      The measuring force changes when the gauge is inverted.

    * Features

    DN-10 DN-10S DN-20 DN-20S
    1. Recommended for locations where cable extension (10 to 50 meters) is necessary.
    2. Recommended for use in electrically noisy environments.
    Notes of wiring : A signal wire should be duct wiring apart from other Power lines.



    [PEACOCK] Linear Gauges ; 10mm range,D-10
