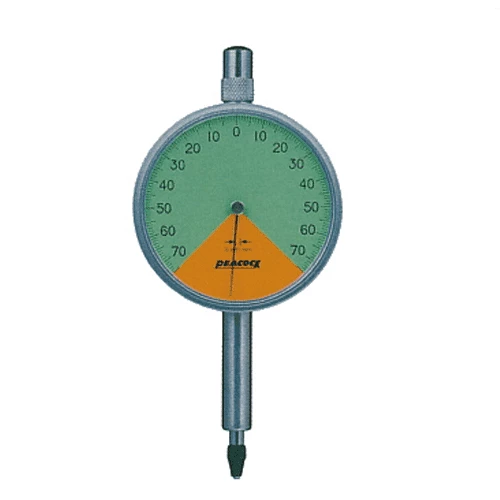

Peacock One Revolution Dial Gauges; 0.001mm, 5Z-XB, Range 0.14mm
- Model 5Z-XB
- Graduation 0.001mm
- Range 0.14mm
- Contact Point ( XB-1 )
- Flat back
These are high-accuracy dial gauges with the pointer giving less than a full turn that
can resist rigorous rigorous continuous measurement.
The long stem is made of stainless steel, is high in strenght and is malfunction-free
due to fastening.
The dial faces except No. 18 and 17B are easy to read with green and orange
(dead zone)
| Model |
Graduation (mm) |
Range (mm)
(Free stroke)
|
Reading |
Indication error (µm) |
Backward error (µm) |
Repeatability (µm) |
Measuring force less than (N) |
| Revolution |
Whole measuring range |
|
| 1/10 |
1/2 |
One |
Two |
| 5Z-XB |
0.001 |
0.14(3.0) |
70-0-70 |
2.5 |
±3 |
±4 |
- |
- |
3 |
0.5 |
1.5 |
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| 5Z-XB |
69.4 |
41.5 |
30 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
