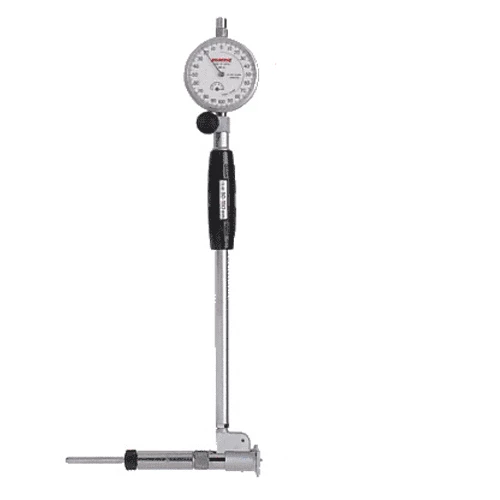

Peacock Standard Cylinder Gauges ; CC-3C
Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary accessories to perform close tolerance measurements of holes, taper and roundness.
- Dial gauge mounting knob is very simple of and sure avoiding demerit of collet-system.
- The contact point is tungsten carbide ball.
- Dial gauge is not furnished and supplied only on request.
- Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm).
- The standard ball tipped at the replacement rod is made of steel.
- The sintered hard-alloy ball is also available to tip.
| Model |
CC-3C |
| Range |
50 - 150mm |
With 50mm extension collar
| Specifications |
| Model |
Range (mm) |
Effective measuring range (mm) |
Wide range accuracy (µm) |
Adjacent error (µm) |
Repeated accuracy (µm) |
Number of anvils (mm) |
Thickness of spacers (mm) |
Extension collar (mm) |
|
|
|
| CC-3C |
50~150 |
1.2 |
5 |
2 |
2 |
Intervals 5mm×11 |
1, 2, 3mm each |
50mm × 1 |
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
| CC-3C |
253 |
150 |
9 |
70 |
23 |
20 |
10 |
50~150 |
30 |
18 |
