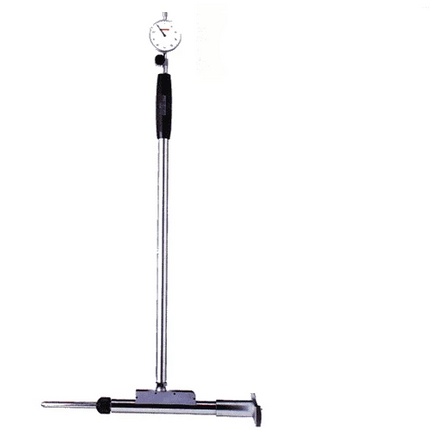

Peacock Standard Cylinder Gauges ; CC-6
Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary accessories to perform close tolerance measurements of holes, taper and roundness.
- Dial gauge mounting knob is very simple of and sure avoiding demerit of collet-system.
- The contact point is tungsten carbide ball.
- Dial gauge is not furnished and supplied only on request.
- Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm).
- The standard ball tipped at the replacement rod is made of steel.
- The sintered hard-alloy ball is also available to tip.
| Model |
CC-6 |
| Range |
250 - 400mm |
| Specifications |
| Model |
Range (mm) |
Effective measuring range (mm) |
Wide range accuracy (µm) |
Adjacent error (µm) |
Repeated accuracy (µm) |
Number of anvils (mm) |
Thickness of spacers (mm) |
Extension collar (mm) |
|
|
|
| CC-6 |
250~400 |
1.2 |
5 |
2 |
2 |
Intervals 10mm×16 |
1, 2, 3, 4mm each |
|
| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
| CC-6 |
540 |
400 |
14 |
100 |
26 |
25 |
16 |
250~400 |
100 |
28 |
