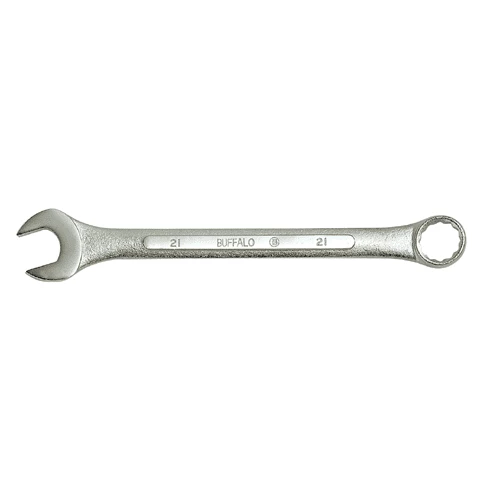

SESHIN BUFFALO Combination Wrenches - inch

  • VendorSeshin Buffalo

Description

SESHIN BUFFALO Combination Wrenches - inch

Product Code Dimensions reference dimension tolerance narrow width Basially diameter depth Head thickness Sockets thickness Length
D1+0.5 D2+0.5 F±1.0 T1±0.5 T2±0.5 L±5.0
-0.8 -0.8
104-2526 5/16" 7.94 0.05 17.4 13.1 9.5±0.5 4 6.5 104.0±4.0
104-2535 3/8" 9.52 20.5 15.2 11.5±0.5 4 7 115.0±4.0
104-2544 7/16" 11.11 0.19 23.5 17.6 13.5±0.8 5 8 135.0±4.0
104-2553 1/2" 12.7 0.05 26 19.5 14.5±0.8 5.5 8.5 150.0±4.0
104-2562 9/16" 14.29 0.27 29.5 22.1 16.5±0.8 6 9 170.0±4.0
104-2571 5/8" 15.88 0.05 33.5 24.6 18 7 10 190.0±4.0
104-2580 11/16" 17.45 0.03 36.5 26.5 20 7.5 10.5 210
0.05
104-2599 3/4" 19.05 0.36 40 29.2 21.5 8 11.5 235
104-2614 7/8" 22.22 45.5 32.2 25 9 12.5 285
104-2623 15/16" 23.81 50 35.4 27 9.5 13 315
104-2632 1" 25.4 0.48 51.5 37 28.5 10 13.5 335
104-2641 1 1/16" 26.99 57.5+0.8 39.2+0.8 31 11 14.0±0.8 362
0.08 -1.5 -1.5
104-2650 1 1/8" 28.58 59.0+0.8 41.8+0.8 33 12 15.0±0.8 385
-1.5 -1.5
104-2669 1 1/4" 31.75 67.0+0.8 47.2+0.8 36.5 13 16.5±0.8 415.9
-1.5 -1.5



Usage Precautions

1. Firmly tighten the bolts and nuts to a deep place.
2. If you overstretch the force, the wrench may be out of order. Please be careful not to slip.
3. Do not hit the hammer side with impact or shock.

Product form

SESHIN BUFFALO Combination Wrenches - inch Product Code Dimensions reference dimension tolerance narrow width Basially diameter depth Head thickness Sockets... Read more

$2.28 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      SESHIN BUFFALO Combination Wrenches - inch

      Product Code Dimensions reference dimension tolerance narrow width Basially diameter depth Head thickness Sockets thickness Length
      D1+0.5 D2+0.5 F±1.0 T1±0.5 T2±0.5 L±5.0
      -0.8 -0.8
      104-2526 5/16" 7.94 0.05 17.4 13.1 9.5±0.5 4 6.5 104.0±4.0
      104-2535 3/8" 9.52 20.5 15.2 11.5±0.5 4 7 115.0±4.0
      104-2544 7/16" 11.11 0.19 23.5 17.6 13.5±0.8 5 8 135.0±4.0
      104-2553 1/2" 12.7 0.05 26 19.5 14.5±0.8 5.5 8.5 150.0±4.0
      104-2562 9/16" 14.29 0.27 29.5 22.1 16.5±0.8 6 9 170.0±4.0
      104-2571 5/8" 15.88 0.05 33.5 24.6 18 7 10 190.0±4.0
      104-2580 11/16" 17.45 0.03 36.5 26.5 20 7.5 10.5 210
      0.05
      104-2599 3/4" 19.05 0.36 40 29.2 21.5 8 11.5 235
      104-2614 7/8" 22.22 45.5 32.2 25 9 12.5 285
      104-2623 15/16" 23.81 50 35.4 27 9.5 13 315
      104-2632 1" 25.4 0.48 51.5 37 28.5 10 13.5 335
      104-2641 1 1/16" 26.99 57.5+0.8 39.2+0.8 31 11 14.0±0.8 362
      0.08 -1.5 -1.5
      104-2650 1 1/8" 28.58 59.0+0.8 41.8+0.8 33 12 15.0±0.8 385
      -1.5 -1.5
      104-2669 1 1/4" 31.75 67.0+0.8 47.2+0.8 36.5 13 16.5±0.8 415.9
      -1.5 -1.5



      Usage Precautions

      1. Firmly tighten the bolts and nuts to a deep place.
      2. If you overstretch the force, the wrench may be out of order. Please be careful not to slip.
      3. Do not hit the hammer side with impact or shock.
