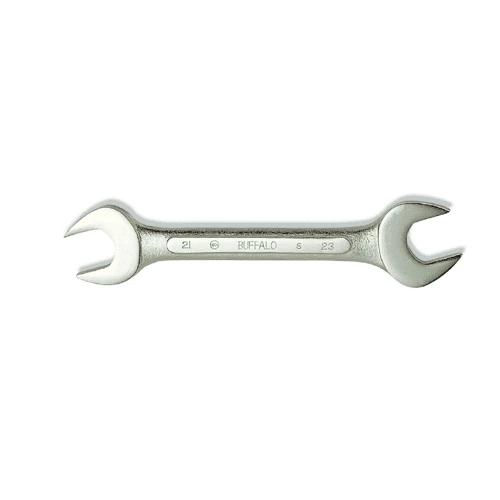

SESHIN Two-Head Open-End Wrenches - mm SIZE

  • VendorSeshin Buffalo

Description

SESHIN Two-Head Open-End Wrenches - mm SIZE

Product Code Dimensions Dimensions (S) Outer width Depth (F) T±0.5 Length
Small (s1) Big (S2) D1+1.0 D2+1.0 F1+1.5 F2+1.5
Dimensions  Tolerance Dimensions  Tolerance -2 -2 -0.8 -0.8 L±3.0
104-2818 7×8 7 0.05 8 0.05 15 17 9 10 3.5 105
104-2827 8×9 8 9 17 19 10 11 3.85 110
104-2836 8×10 8 10 0.19 17 21 10 12 4 120
104-2854 10×12 10 12 0.24 21 25.5 12 14 5 126
104-2863 10×13 10 13 0.1 21 27.5 12 15 5.5 134
104-2881 12×14 12 0.1 14 0.27 25.5 29.5 14 17 6.5 144
104-2890 13×15 13 15 0.1 27.5 32 15 19.5 6.5 155
104-2906 13×17 13 17 0.3 27.5 36 15 17 6 165
0.1
104-2915 14×17 14 17 0.3 29.5 36 16 19.5 6.5 166
0.1
104-2924 17×19 17 0.3 19 0.36 36 40 19.5 21.5 7.5 182
0.1 0.15
104-2933 19×21 19 0.36 21 0.36 40 44.5 21.5 24 8.5 201
104-2942 19×22 19 0.15 22 0.15 40 46.5 21.5 25 8.5 250
104-2951 21×23 21 23 44 48 24 26 9 217
104-2960 22×24 22 24 46 50 25 27 9.5 220
104-2979 23×26 23 0.51 26 0.4 48 55 26 29.5 9.5 235
104-2988 24×27 24 27 0.15 50.5 56.5 27 30.5 10 245



Usage Precautions

1. Firmly tighten the bolts and nuts to a deep place.
2. If you overstretch the force, the wrench may be out of order. Please be careful not to slip.
3. Do not hit the hammer side with impact or shock.

Product form

SESHIN Two-Head Open-End Wrenches - mm SIZE Product Code Dimensions Dimensions (S) Outer width Depth (F) T±0.5 Length Small (s1)... Read more

$2.02 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      SESHIN Two-Head Open-End Wrenches - mm SIZE

      Product Code Dimensions Dimensions (S) Outer width Depth (F) T±0.5 Length
      Small (s1) Big (S2) D1+1.0 D2+1.0 F1+1.5 F2+1.5
      Dimensions  Tolerance Dimensions  Tolerance -2 -2 -0.8 -0.8 L±3.0
      104-2818 7×8 7 0.05 8 0.05 15 17 9 10 3.5 105
      104-2827 8×9 8 9 17 19 10 11 3.85 110
      104-2836 8×10 8 10 0.19 17 21 10 12 4 120
      104-2854 10×12 10 12 0.24 21 25.5 12 14 5 126
      104-2863 10×13 10 13 0.1 21 27.5 12 15 5.5 134
      104-2881 12×14 12 0.1 14 0.27 25.5 29.5 14 17 6.5 144
      104-2890 13×15 13 15 0.1 27.5 32 15 19.5 6.5 155
      104-2906 13×17 13 17 0.3 27.5 36 15 17 6 165
      0.1
      104-2915 14×17 14 17 0.3 29.5 36 16 19.5 6.5 166
      0.1
      104-2924 17×19 17 0.3 19 0.36 36 40 19.5 21.5 7.5 182
      0.1 0.15
      104-2933 19×21 19 0.36 21 0.36 40 44.5 21.5 24 8.5 201
      104-2942 19×22 19 0.15 22 0.15 40 46.5 21.5 25 8.5 250
      104-2951 21×23 21 23 44 48 24 26 9 217
      104-2960 22×24 22 24 46 50 25 27 9.5 220
      104-2979 23×26 23 0.51 26 0.4 48 55 26 29.5 9.5 235
      104-2988 24×27 24 27 0.15 50.5 56.5 27 30.5 10 245



      Usage Precautions

      1. Firmly tighten the bolts and nuts to a deep place.
      2. If you overstretch the force, the wrench may be out of order. Please be careful not to slip.
      3. Do not hit the hammer side with impact or shock.
