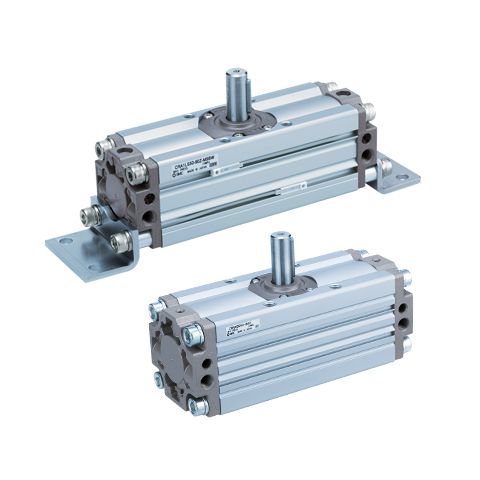

SMC CRA1 Series Rotary Actuator Rack and Pinion Type, CRA1LSU100-90Z

Description

Description

OVERVIEW


The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions. Dimensions range from 3" X 4" X 2" to a maximum of 8" X 9.65" X 4.41". Single shaft end or double shaft end models are available.
  • Can be mounted on 2 sides of a small auto switch ( D -M9??span> type ) Can be mounted from the front of the auto switch UZ, CDVRA1)



Configuration Options





1 With auto switch D Built-in auto switch magnet
2 Mounting B Basic
L Foot
F Flange
3 Shaft Type S Single Shaft
W Double Shaft
X Single Shaft with four chamfers
Y Double Shaft with key
T Single Round shaft
J Double shaft (round shaft , with four chamfers)
K Double round shaft
4 Type Nil Pneumatic
H Air-hydro
5 Size 30,50,63,80,100
6 Port Type Nil Rc, TF , TN , TT
7 Rotating Angle 90,100,180,190
8 Air Cushion C with air cushion
9 Auto switch M9N,M9P,A96
10 Number of auto swiches 2pcs
S 1pc
11 made to order



Product form

OVERVIEW The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50,... Read more

SKU: CRA1LSU100-90Z

$624.91 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    Description

    Description

    OVERVIEW


    The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions. Dimensions range from 3" X 4" X 2" to a maximum of 8" X 9.65" X 4.41". Single shaft end or double shaft end models are available.
    • Can be mounted on 2 sides of a small auto switch ( D -M9??span> type ) Can be mounted from the front of the auto switch UZ, CDVRA1)



    Configuration Options





    1 With auto switch D Built-in auto switch magnet
    2 Mounting B Basic
    L Foot
    F Flange
    3 Shaft Type S Single Shaft
    W Double Shaft
    X Single Shaft with four chamfers
    Y Double Shaft with key
    T Single Round shaft
    J Double shaft (round shaft , with four chamfers)
    K Double round shaft
    4 Type Nil Pneumatic
    H Air-hydro
    5 Size 30,50,63,80,100
    6 Port Type Nil Rc, TF , TN , TT
    7 Rotating Angle 90,100,180,190
    8 Air Cushion C with air cushion
    9 Auto switch M9N,M9P,A96
    10 Number of auto swiches 2pcs
    S 1pc
    11 made to order
