Peacock Standard Cylinder Gauges ; CC-6

  • VendorPEACOCK

Description

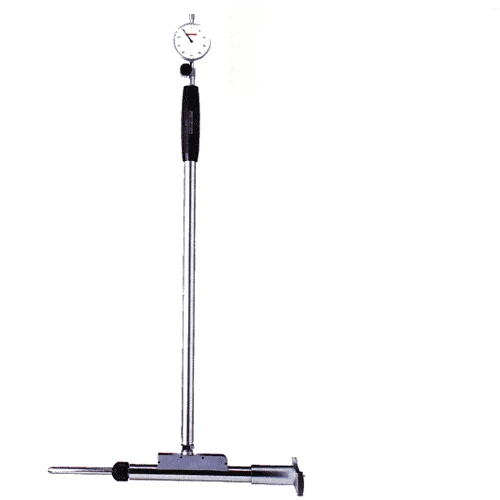

Peacock Standard Cylinder Gauges ; CC-6

Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary accessories to perform close tolerance measurements of holes, taper and roundness.
  • Dial gauge mounting knob is very simple of and sure avoiding demerit of collet-system.
  • The contact point is tungsten carbide ball.
  • Dial gauge is not furnished and supplied only on request.
  • Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm).
  • The standard ball tipped at the replacement rod is made of steel.
  • The sintered hard-alloy ball is also available to tip.



Model CC-6
Range 250 - 400mm





    Specifications
    Model Range (mm) Effective measuring range (mm) Wide range accuracy (µm) Adjacent error (µm) Repeated accuracy (µm) Number of anvils (mm) Thickness of spacers (mm) Extension collar (mm)
    CC-6 250~400 1.2 5 2 2 Intervals 10mm×16 1, 2, 3, 4mm each



    Dimensions (mm)
    Model A B C D E F G H I J
    CC-6 540 400 14 100 26 25 16 250~400 100 28



    [PEACOCK] Standard Cylinder Gauges ; CC-1



    Product form

    Peacock Standard Cylinder Gauges ; CC-6 Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary... Read more

    SKU: CC-6

    $1,019.51 Excl. VAT

      • Quick delivery worldwide
      • Satisfied or refunded
      • Secure payments Paypal
      • Shipped today? Order within: Nov 09, 2024 17:00:00 +0900

      Description

      Peacock Standard Cylinder Gauges ; CC-6

      Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary accessories to perform close tolerance measurements of holes, taper and roundness.
      • Dial gauge mounting knob is very simple of and sure avoiding demerit of collet-system.
      • The contact point is tungsten carbide ball.
      • Dial gauge is not furnished and supplied only on request.
      • Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm).
      • The standard ball tipped at the replacement rod is made of steel.
      • The sintered hard-alloy ball is also available to tip.



      Model CC-6
      Range 250 - 400mm





        Specifications
        Model Range (mm) Effective measuring range (mm) Wide range accuracy (µm) Adjacent error (µm) Repeated accuracy (µm) Number of anvils (mm) Thickness of spacers (mm) Extension collar (mm)
        CC-6 250~400 1.2 5 2 2 Intervals 10mm×16 1, 2, 3, 4mm each



        Dimensions (mm)
        Model A B C D E F G H I J
        CC-6 540 400 14 100 26 25 16 250~400 100 28
