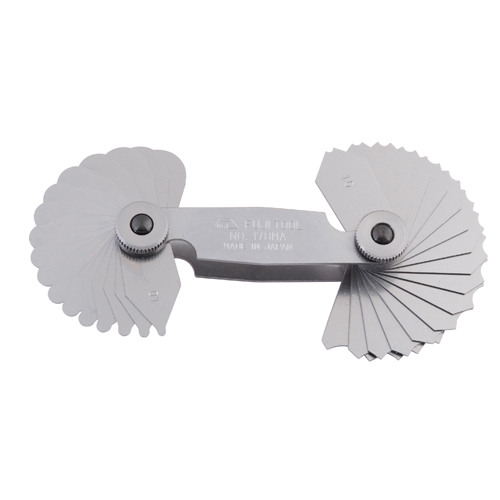

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC

  • VendorFuji
Description

Description

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC

RADIUS GAUGES 178 TYPE

Used for checking the concave and concave radii of a curved surface.
All leaves are ranged in according to sizes. High precision is guaranteed.

Material Steel
Accuracy 0.1R ~ 3.0R （± 0.03mm）
3.25R ~ 23.0R （± 0.04mm）
24.0R ~ 30.0R （± 0.05mm）
31.0R ~ 50.0R （± 0.08mm）

Feature

The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

Specification

Model No. Leaves Size Composition/Contents(mm)
178MAA 20 0.1  0.2  0.3  0.4  0.5  0.6  0.7  0.8  0.9  1.0
178-112 20 1.1  1.2  1.3  1.4  1.5  1.6  1.7  1.8  1.9  2.0
178-213 20 2.1  2.2  2.3  2.4  2.5  2.6  2.7  2.8  2.9  3.0
178MA 34 1.0  1.25  1.5  1.75  2.0  2.25  2.5  2.75  3.0  3.5  4.0
4.5  5.0  5.5  6.0  6.5  7.0
178MB 32 7.5  8.0  8.5  9.0  9.5  10.0  10.5  11.0  11.5  12.0  12.5
13.0  13.5  14.0  14.5  15.0
178MR 30 15.5  16.0  16.5  17.0  17.5  18.0  18.5  19.0  19.5
20.0  21.0  22.0  23.0  24.0  25.0
178MC 16 16.0  17.0  18.0  19.0  20.0  21.0  22.0  23.0
178MD 14 24.0  25.0  26.0  27.0  28.0  29.0  30.0
178ME 20 31.0  32.0  33.0  34.0  35.0  36.0  37.0  38.0  39.0  40.0
178MF 20 41.0  42.0  43.0  44.0  45.0  46.0  47.0  48.0  49.0  50.0

Product form

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC RADIUS GAUGES 178 TYPE Used for checking the concave and... Read more

SKU: 431-0039
Barcode: 4560119674821

$37.26 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    Description

    Description

    Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC

    RADIUS GAUGES 178 TYPE

    Used for checking the concave and concave radii of a curved surface.
    All leaves are ranged in according to sizes. High precision is guaranteed.

    Material Steel
    Accuracy 0.1R ~ 3.0R （± 0.03mm）
    3.25R ~ 23.0R （± 0.04mm）
    24.0R ~ 30.0R （± 0.05mm）
    31.0R ~ 50.0R （± 0.08mm）

    Feature

    The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

    Specification

    Model No. Leaves Size Composition/Contents(mm)
    178MAA 20 0.1  0.2  0.3  0.4  0.5  0.6  0.7  0.8  0.9  1.0
    178-112 20 1.1  1.2  1.3  1.4  1.5  1.6  1.7  1.8  1.9  2.0
    178-213 20 2.1  2.2  2.3  2.4  2.5  2.6  2.7  2.8  2.9  3.0
    178MA 34 1.0  1.25  1.5  1.75  2.0  2.25  2.5  2.75  3.0  3.5  4.0
    4.5  5.0  5.5  6.0  6.5  7.0
    178MB 32 7.5  8.0  8.5  9.0  9.5  10.0  10.5  11.0  11.5  12.0  12.5
    13.0  13.5  14.0  14.5  15.0
    178MR 30 15.5  16.0  16.5  17.0  17.5  18.0  18.5  19.0  19.5
    20.0  21.0  22.0  23.0  24.0  25.0
    178MC 16 16.0  17.0  18.0  19.0  20.0  21.0  22.0  23.0
    178MD 14 24.0  25.0  26.0  27.0  28.0  29.0  30.0
    178ME 20 31.0  32.0  33.0  34.0  35.0  36.0  37.0  38.0  39.0  40.0
    178MF 20 41.0  42.0  43.0  44.0  45.0  46.0  47.0  48.0  49.0  50.0
