Description

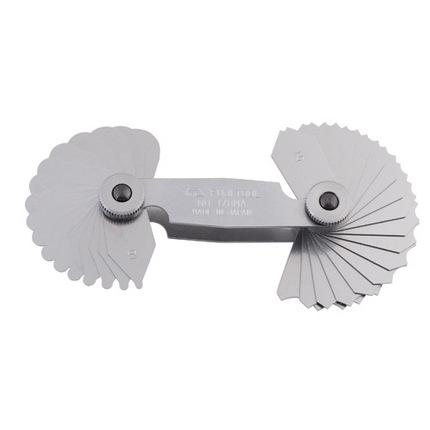

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC

RADIUS GAUGES 178 TYPE

Used for checking the concave and concave radii of a curved surface.
All leaves are ranged in according to sizes. High precision is guaranteed.

Material	Steel
Accuracy	0.1R ~ 3.0R （± 0.03mm） 3.25R ~ 23.0R （± 0.04mm） 24.0R ~ 30.0R （± 0.05mm） 31.0R ~ 50.0R （± 0.08mm）

Feature

The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

Specification

Model No.	Leaves	Size Composition/Contents(mm)
178MAA	20	0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
178-112	20	1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
178-213	20	2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0
178MA	34	1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0
178MB	32	7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 13.5 14.0 14.5 15.0
178MR	30	15.5 16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 20.0 21.0 22.0 23.0 24.0 25.0
178MC	16	16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0
178MD	14	24.0 25.0 26.0 27.0 28.0 29.0 30.0
178ME	20	31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0
178MF	20	41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0

Product form

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC RADIUS GAUGES 178 TYPE Used for checking the concave and... Read more

SKU: 431-0039

$42.85 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Fuji Radius Gauge Circular Measurement size 15.5 to 25.0 mm,178MC

RADIUS GAUGES 178 TYPE

Used for checking the concave and concave radii of a curved surface.
All leaves are ranged in according to sizes. High precision is guaranteed.

Material	Steel
Accuracy	0.1R ~ 3.0R （± 0.03mm） 3.25R ~ 23.0R （± 0.04mm） 24.0R ~ 30.0R （± 0.05mm） 31.0R ~ 50.0R （± 0.08mm）

Feature

The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

Specification

Model No.	Leaves	Size Composition/Contents(mm)
178MAA	20	0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
178-112	20	1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
178-213	20	2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0
178MA	34	1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0
178MB	32	7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 13.5 14.0 14.5 15.0
178MR	30	15.5 16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 20.0 21.0 22.0 23.0 24.0 25.0
178MC	16	16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0
178MD	14	24.0 25.0 26.0 27.0 28.0 29.0 30.0
178ME	20	31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0
178MF	20	41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0
