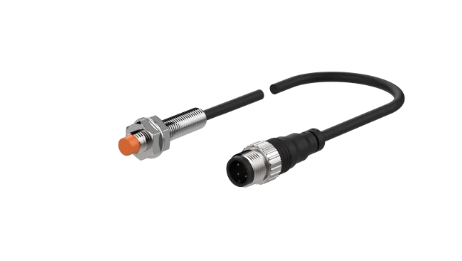

| Installation |
Non-flush |
| Sensing side diameter |
Ø8mm |
| Sensing distance |
2mm |
| Hysteresis(distance) |
Max. 15% of sensing distance |
| Standard sensing target |
8×8×1mm(iron) |
| Response frequency |
1kHz |
| Indicator |
Operation indicator (red LED) |
| Unit weight (packaged weight) |
≈ 34 g (≈ 46 g) |
| Power voltage |
12 - 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC
|
| Current specification |
Current consumption: Max. 10mA |
| Control output |
≤ 200 mA |
| Residual voltage |
Max. 2V |
| Protection circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance |
≥ 50 MΩ (500 VDC megger) |
| Dielectric strength |
Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min |
| Vibration |
1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours |
| Shock |
500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature |
-25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity |
35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure |
IP67(IEC standard) |
| Connection |
Cable connector type |
| Connector type |
M12 Connector |
| Cable Standard/material |
Standard type cable (black): polyvinyl chloride (PVC) |
| Material |
Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
