OMRON

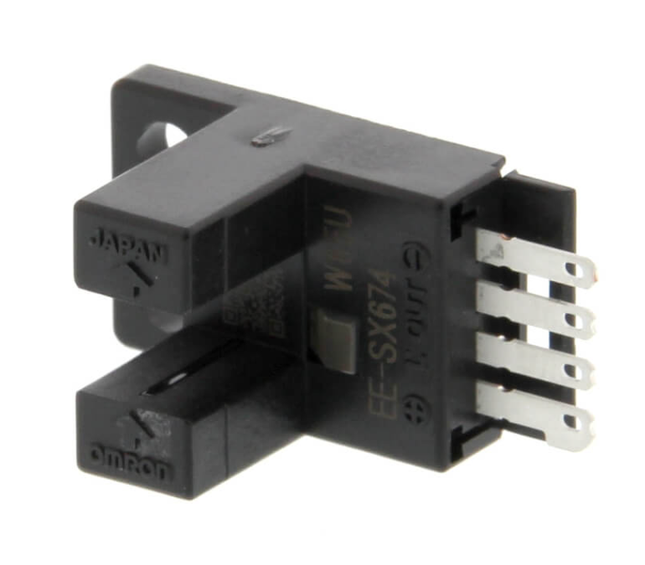

Photomicrosensor, Slot type, Through-beam, T-shaped (slot center 7 mm), Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: No incident light, NPN output, Connector model Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 2.4 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 15 m, NPN open collector, Pre-wired model, 2 m Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method Pre-wired models   Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 120 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

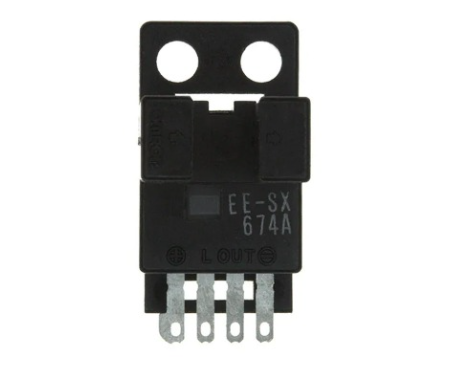

Photomicrosensor, Slot type, Through-beam, T-shaped (slot center 7 mm), Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 2.4 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

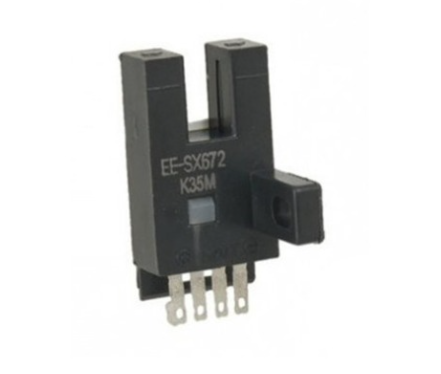

Photomicrosensor, Slot type, Through-beam, L-shaped, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 3 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

Photomicrosensor, Slot type, Through-beam, Closemounting, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: No incident light, NPN output, Connector model Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 3 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

Shape Close-mounting Sensing method Through-beam with slot Sensing distance 5 mm Setting method Fixed Connection method System connector Output type NPN Operation mode Dark-ON, Light-ON Response time 0.17 ms Material housing PBT Thread size Other Product Width (unpacked) 13.6 mm Product Height (unpacked) 15.5 mm Product Depth (unpacked) 25.3 mm Type of light Infrared light Supply voltage DC 5-24 V

Read more less

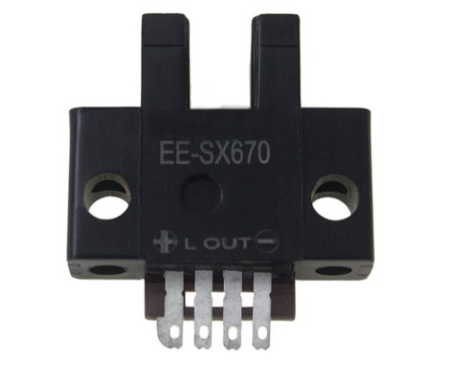

Photomicrosensor, Slot type, Through-beam, Standard, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 3.1 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

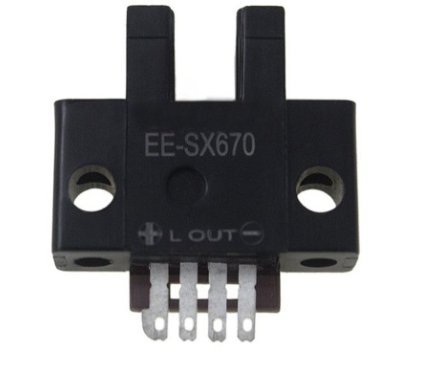

Photomicrosensor, Slot type, Through-beam, Standard, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: No incident light, NPN output, Connector model Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type   Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 3.1 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

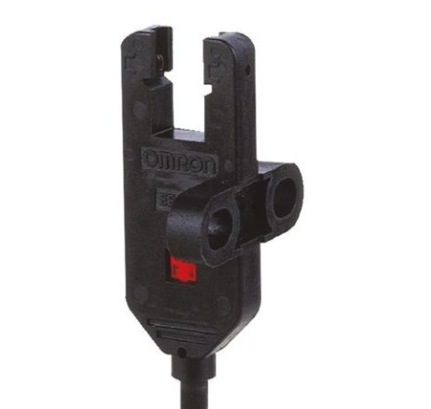

Photomicrosensor, Slot type, Through-beam, T-shaped, Sensing distance: 5 mm (slot width), Dark-ON, Indicator: Incident light, NPN output, Pre-wired model, 2 m Type Grooved Type (T-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON Connection method Pre-wired models   Type Grooved Type (T-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)om

Read more less

Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 15 m, NPN open collector, M8 connector models Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method M8 connector models   Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 30 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

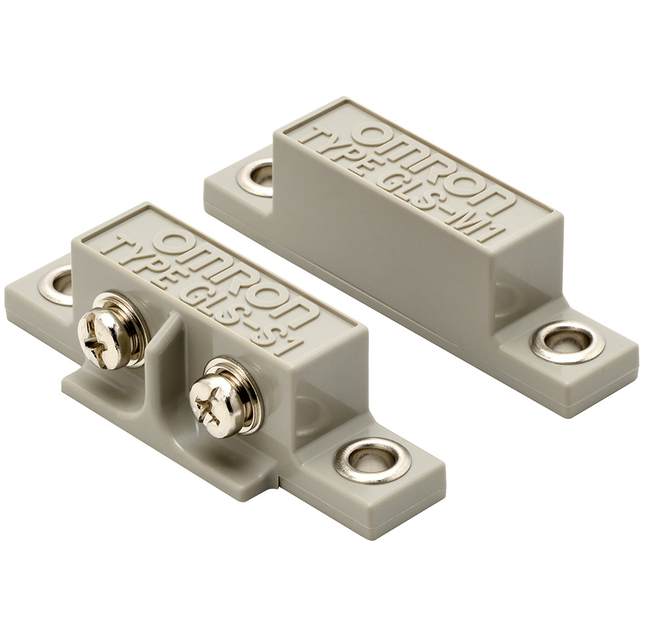

Magnetic Proximity Sensor, Terminal block model Sensing head size 50 mm x 14 mm x 14 mm Type Square type, Magnetic type Sensing distance 15 mm   Sensing head size 50 mm x 14 mm x 14 mm Type Square type, Magnetic type Sensing distance 15 mm Response frequency 20 Hz max. Ambient temperature (Operating) -20 to 60 ℃ Ambient temperature (Storage) -20 to 60 ℃ Ambient humidity (Operating) 35 to 85 % Ambient humidity (Storage) 35 to 85 % Dielectric strength Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 300 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP40 Connection method Terminal block models Material Sensor: ABSMagnet: ABS

Read more less

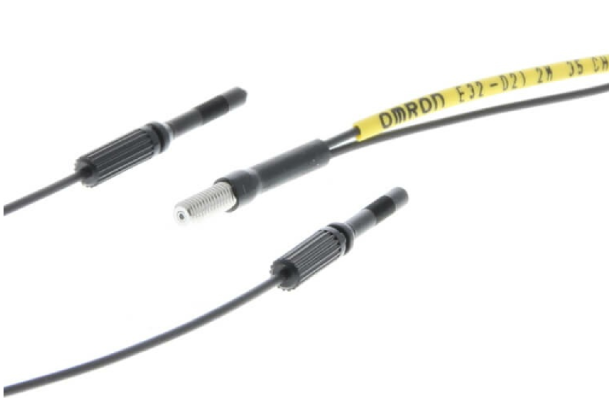

OMRON FIBER SENSOR Model: E32-D21 (2M) High-performance fiber optic sensor from OMRON, widely used in industrial automation and detection applications.A global best-selling model known for reliability, precision, and stable sensing performance. Key Features High sensitivity fiber optic sensor Stable and accurate detection for small objects Compact and flexible fiber cable design Excellent durability for industrial environments Compatible with OMRON fiber amplifier units Trusted global standard model Applications Factory automation systems Semiconductor and electronics manufacturing Packaging and conveyor line detection Position and object sensing General industrial MRO applications   Specifications Item Description Sensing Method Diffuse Reflective Shape Threaded Size M3 Application Object Detection Features Bend Resistant Operating Temperature -40 to +70 °C Sensing Distance 210 mm Cable Length 2 m Minimum Bending Radius 4 mm Free Cut Yes Core Material Plastic Degree of Protection IP67 Sensing Surface Orientation Top View Sheath Material PVC
