Autonics Proximity Sensor

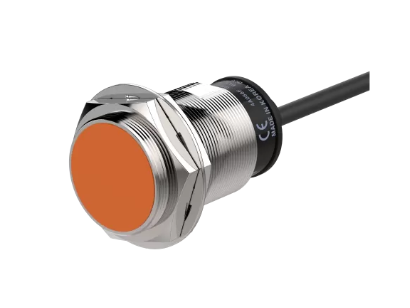

Autonics Autonics Proximity Sensor Cylindrical Cable Type Proximity Sensor DC 2-Wire PRT30-10DC
Data sheet Installation Flush Sensing side diameter Ø30mm Sensing distance 10mm Hysteresis(distance) Max. 10% of sensing distance Standard sensing target 30×30×1mm(iron) Response frequency 400Hz Indicator Operation indicator (red LED) Unit weight (packaged weight) ≈ 170 g (≈ 207 g) Power voltage 12 - 24 VDC(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC Current specification Leakage current: Max. 0.6mA Control output 2 to 100 mA Residual voltage Max. 3.5V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min Vibration 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP67(IEC standard) Connection Cable type Cable Standard/material Standard type cable (black): polyvinyl chloride (PVC) Material Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT ※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※Check the condition of connected device.
$22.79

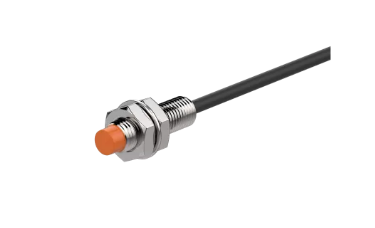

Autonics Autonics Proximity Sensor Cylindrical Cable Type Proximity Sensor DC 2-Wire PRT08-2DC
Data sheet Installation Non-flush Sensing side diameter Ø8mm Sensing distance 2mm Hysteresis(distance) Max. 10% of sensing distance Standard sensing target 8×8×1mm(iron) Response frequency 1kHz Indicator Operation indicator (red LED) Unit weight (packaged weight) ≈ 52 g (≈ 64 g) Power voltage 12 - 24 VDC(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC Current specification Leakage current: Max. 0.6mA Control output 2 to 100 mA Residual voltage Max. 3.5V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min Vibration 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP67(IEC standard) Connection Cable type Cable Standard/material Standard type cable (black): polyvinyl chloride (PVC) Material Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT ※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※Check the condition of connected device.
$24.99

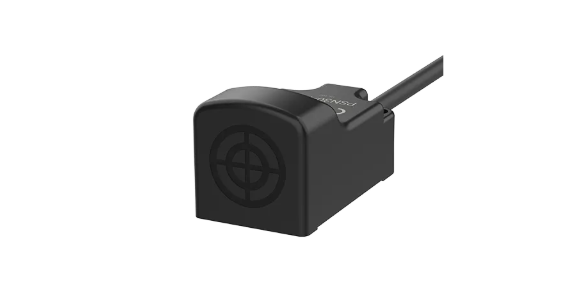

Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PSN30-10AC
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 30mm Sensing distance 10mm Standard sensing target 30×30×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 92g (≈ 161g) Industrial proximity sensor for automation systems.
$23.83

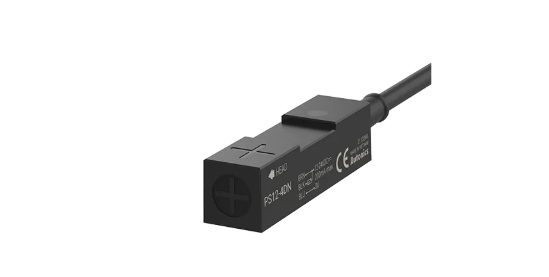

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS12-4DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 12mm Sensing distance 4mm Standard sensing target 12×12×1mm(iron) Response frequency 500Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight Approx. 77g(approx. 62g)
$18.12

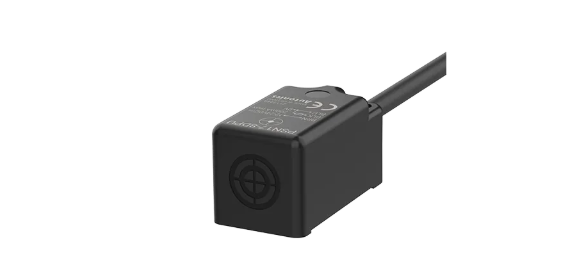

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-8DPU
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Upper sensing type Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$12.42

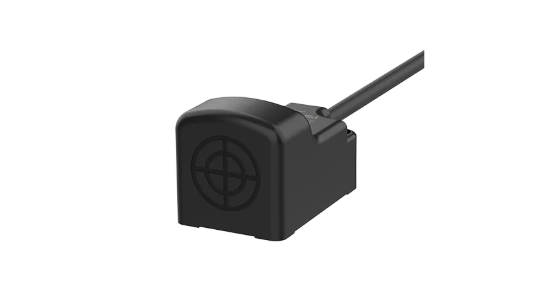

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN25-5DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 25mm Sensing distance 5mm Standard sensing target 25×25×1mm(iron) Response frequency 300Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 71g (≈103g)
$13.59

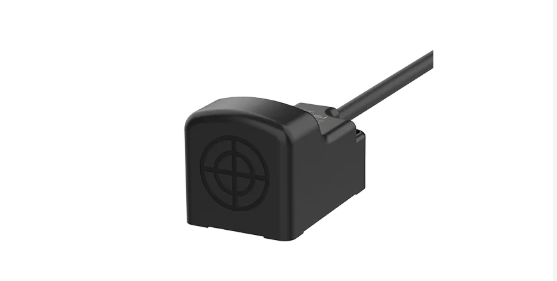

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN25-5DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 25mm Sensing distance 5mm Standard sensing target 25×25×1mm(iron) Response frequency 300Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 71g (≈103g)
$13.59

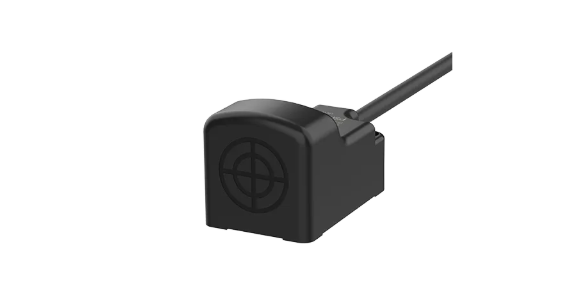

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN25-5DP2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 25mm Sensing distance 5mm Standard sensing target 25×25×1mm(iron) Response frequency 300Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 71g (≈103g)
$13.59

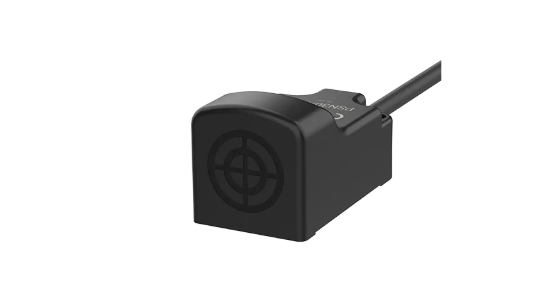

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN30-10DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 30mm Sensing distance 10mm Standard sensing target 30×30×1mm(iron) Response frequency 250Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 96g (≈165g)
$14.77

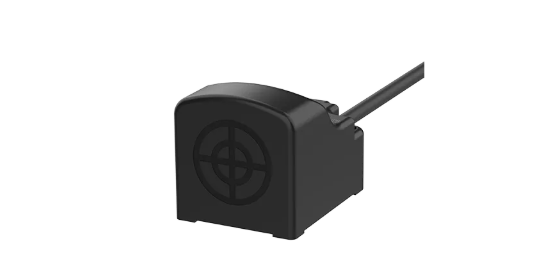

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN40-20DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 40mm Sensing distance 20mm Standard sensing target 60×60×1mm(iron) Response frequency 100Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 135g (≈225g)
$21.64

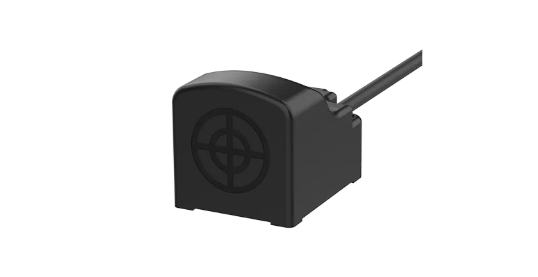

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN40-20DP2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 40mm Sensing distance 20mm Standard sensing target 60×60×1mm(iron) Response frequency 100Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 135g (≈225g)
$21.64

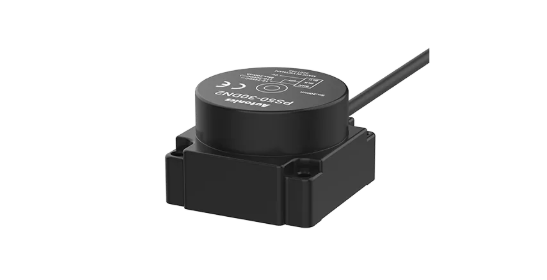

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS50-30DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 50mm Sensing distance 30mm Standard sensing target 90×90×1mm(iron) Response frequency 50Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 220g (≈ 256g)
$30.69

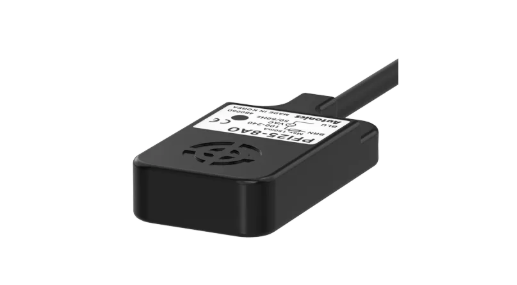

Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PFI25-8AC
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 25mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Closed Sensing type Upper sensing type Material Poly Phenylene Sulfide Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Residual voltage Max. 10V Weight Approx. 70g
$27.34

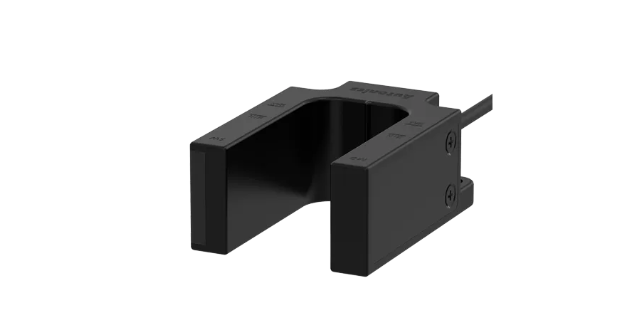

Autonics Autonics Proximity Sensor Proximity Sensor MU-1A-30
Switching voltage ≤ 24VDC Contact type Normally Open Operation distance_OFF→ON ± 10 mm Operation distance_ON→OFF ± 20 mm Standard sensing target Steel plate - a galvanized steel sheet 1.6t Operating frequency ≤ 500 Hz Material Cover/Case: PC (915R) Protection structure IP67(IEC standard) Environment_Ambient temperature -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation resistance ≥ 1,000 MΩ (500 VDC megger) Dielectric strength 500VAC~ 50/60Hz for 1 min. Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times Applied REED SWITCH Model : ORD324-10-15 (STANDEX MEDER) Weight ≈ 132.5 g (≈ 172.3 g)
$29.65

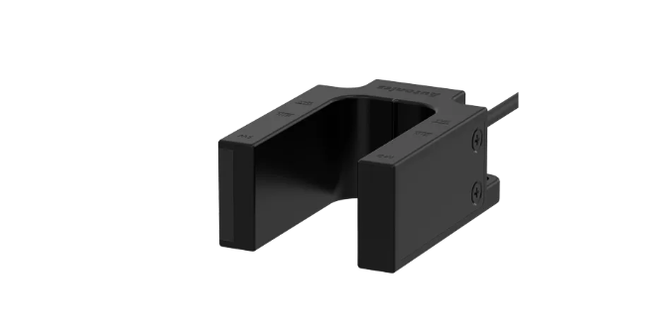

Autonics Autonics Proximity Sensor Proximity Sensor MU-1B-30
Switching voltage ≤ 24VDC Contact type Normally Closed Operation distance_OFF→ON ± 10 mm Operation distance_ON→OFF ± 20 mm Standard sensing target Steel plate - a galvanized steel sheet 1.6t Operating frequency ≤ 500 Hz Material Cover/Case: PC (915R) Protection structure IP67(IEC standard) Environment_Ambient temperature -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation resistance ≥ 1,000 MΩ (500 VDC megger) Dielectric strength 500VAC~ 50/60Hz for 1 min. Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times Applied REED SWITCH Model : ORD324-10-15 (STANDEX MEDER) Weight ≈ 132.5 g (≈ 172.3 g)
$29.65

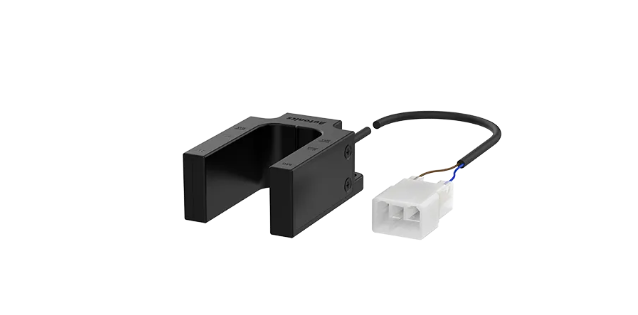

Autonics Autonics Proximity Sensor Proximity Sensor MU-1B-30-E
Switching voltage ≤ 24VDC Contact type Normally Closed Operation distance_OFF→ON ± 10 mm Operation distance_ON→OFF ± 20 mm Standard sensing target Steel plate - a galvanized steel sheet 1.6t Operating frequency ≤ 500 Hz Material Cover/Case: PC (915R) Protection structure IP67(IEC standard) Environment_Ambient temperature -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation resistance ≥ 1,000 MΩ (500 VDC megger) Dielectric strength 500VAC~ 50/60Hz for 1 min. Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times Applied REED SWITCH Model : ORD324-10-15 (STANDEX MEDER) Weight ≈ 107 g (≈ 147.2 g)
$28.51

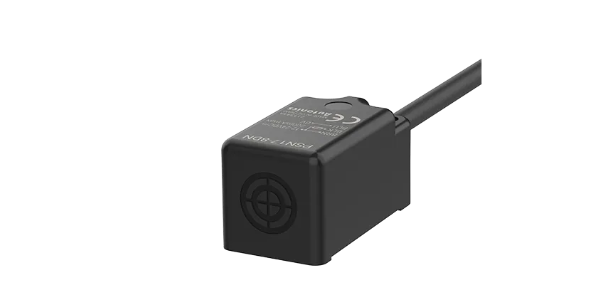

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire 3m PSN17-8DN
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$13.88

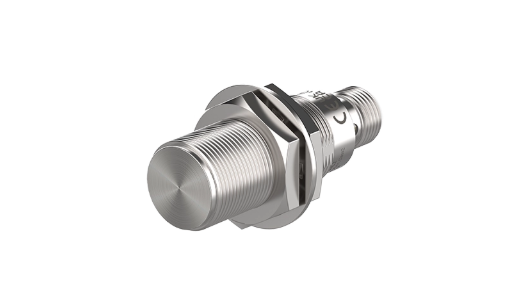

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDCM18-7DP-K
Installation Flush Sensing side diameter Ø18mm Sensing distance 7mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 30×30×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 32 g (≈ 67 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 Connection Connector models Connector type M12 plug connector Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$152.79

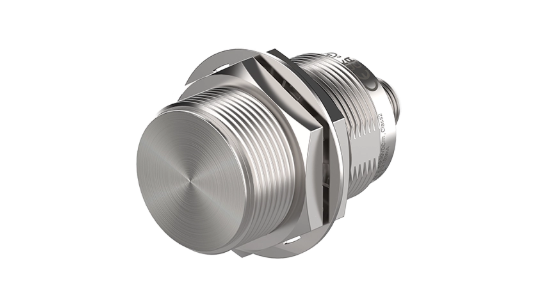

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDCM30-12DN-K
Installation Flush Sensing side diameter Ø30mm Sensing distance 12mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 54×54×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 85 g (≈ 140 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 Connection Connector models Connector type M12 plug connector Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$165.32

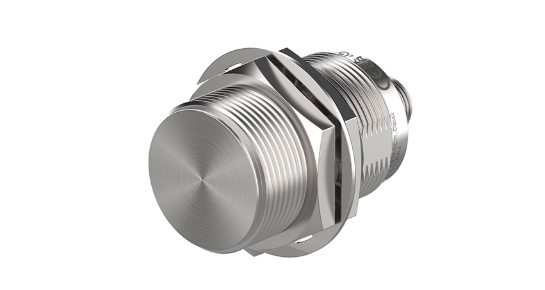

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDCM30-12DP-K
Installation Flush Sensing side diameter Ø30mm Sensing distance 12mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 54×54×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 85 g (≈ 140 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 Connection Connector models Connector type M12 plug connector Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$165.32
Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDW12-3DN-V-K
Installation Flush Sensing side diameter Ø12mm Sensing distance 3mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 21×21×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 35 g (≈ 60 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Cable connector type Connector type M12 plug connector Cable Standard/material Oil resistant cable (dark gray) Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$135.70

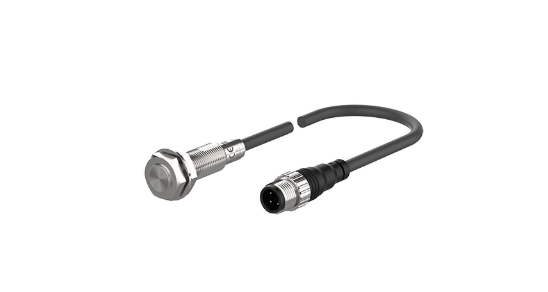

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDW12-3DP-V-K
Installation Flush Sensing side diameter Ø12mm Sensing distance 3mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 21×21×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 35 g (≈ 60 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Cable connector type Connector type M12 plug connector Cable Standard/material Oil resistant cable (dark gray) Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$135.70
Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDW18-7DN-V-K
Installation Flush Sensing side diameter Ø18mm Sensing distance 7mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 30×30×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 55 g (≈ 90 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Cable connector type Connector type M12 plug connector Cable Standard/material Oil resistant cable (dark gray) Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$147.10

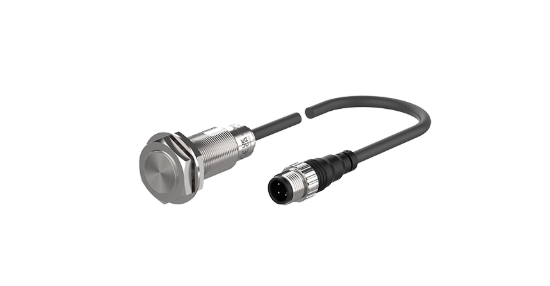

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDW18-7DP-V-K
Installation Flush Sensing side diameter Ø18mm Sensing distance 7mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 30×30×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 55 g (≈ 90 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Cable connector type Connector type M12 plug connector Cable Standard/material Oil resistant cable (dark gray) Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$147.10

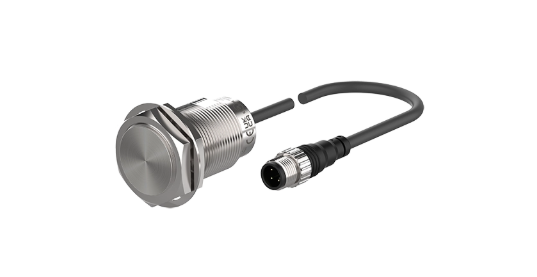

Autonics Autonics Proximity Sensor Proximity Sensor Cylindrical Long-Range DC 3-Wire PRFDW30-12DN-V-K
Installation Flush Sensing side diameter Ø30mm Sensing distance 12mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 54×54×1mm(iron) Response frequency 10 Hz Indicator Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange) Unit weight (packaged weight) ≈ 120 g (≈ 180 g) Power voltage 10 - 30 VDC(ripple P-P: ≤ 10 %) Current specification Current consumption: Max. 20mA Control output Max. 100mA Residual voltage ≤ 2.5 V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times Environment_Ambient temperature -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Cable connector type Connector type M12 plug connector Cable Standard/material Oil resistant cable (dark gray) Material Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303)
$159.62

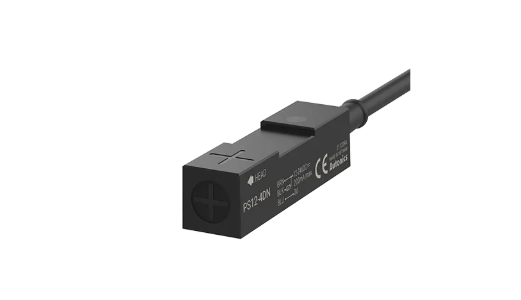

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS12-4DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 12mm Sensing distance 4mm Standard sensing target 12×12×1mm(iron) Response frequency 500Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight Approx. 77g(approx. 62g)
$18.12

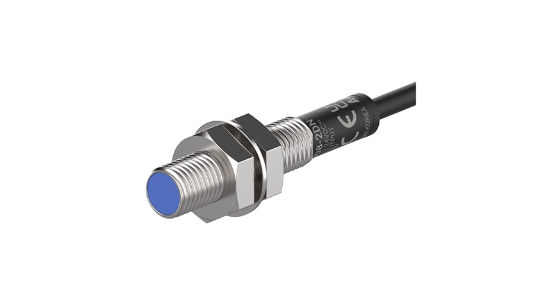

Autonics Autonics Proximity Sensor Long-Range Proximity Sensor DC 3-Wire PRD08-2DN
Installation Flush Sensing side diameter Ø8mm Sensing distance 2mm Hysteresis(distance) Max. 15% of sensing distance Standard sensing target 8×8×1mm(iron) Response frequency 1kHz Indicator Operation indicator (red LED) Unit weight (packaged weight) ≈ 43 g (≈ 63 g) Power voltage 12 - 24 VDC(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC Current specification Current consumption: Max. 10mA Control output ≤ 200 mA Residual voltage Max. 2V Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) Protection structure IP67(IEC standard) Connection Cable type Cable Standard/material Standard type cable (black): polyvinyl chloride (PVC) Material Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT
$27.34

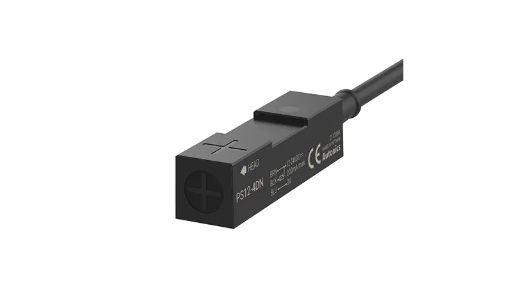

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS12-4DN
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 12mm Sensing distance 4mm Standard sensing target 12×12×1mm(iron) Response frequency 500Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight Approx. 77g(approx. 62g)
$18.12
Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-5DNU
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target 18×18×1mm(iron) Response frequency 700Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Sensing type Upper sensing type Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$11.99

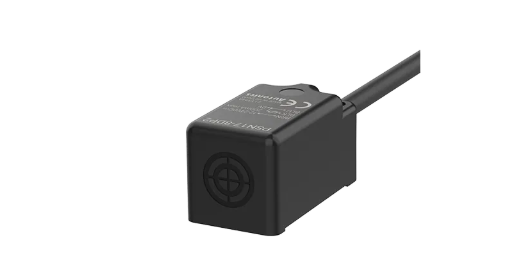

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-8DP2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$12.42

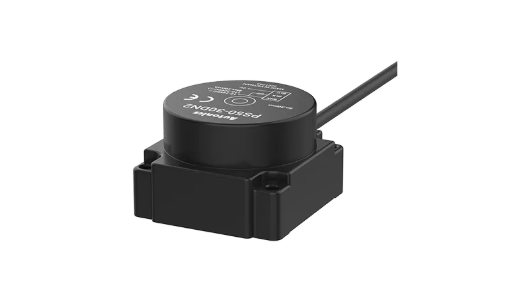

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS50-30DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 50mm Sensing distance 30mm Standard sensing target 90×90×1mm(iron) Response frequency 50Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 220g (≈ 256g)
$30.69

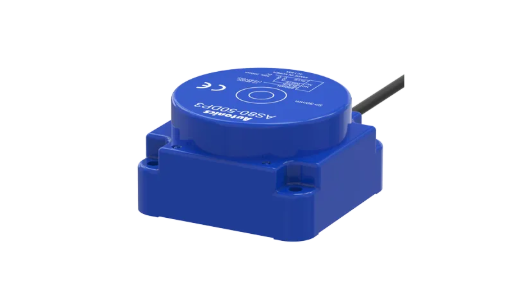

Autonics Autonics Proximity Sensor Square Type Long-Range Proximity Sensor DC4 AS80-50DP3
Wire type and power DC 4-wire type12-48VDC Sensing side size Frame size 80mm Sensing distance 50mm Standard sensing target 150×150×1mm(iron) Response frequency 30Hz Current specification Current consumption: Max. 20mA Control output PNP Normally Open+Normally Closed Sensing type Upper sensing type Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 15% of sensing distance Weight Approx. 470g
$95.75

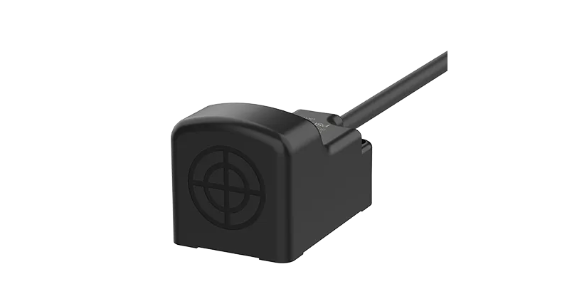

Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PSN25-5AC
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 25mm Sensing distance 5mm Standard sensing target 25×25×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 66g (≈ 98g)
$22.79
Autonics Autonics Proximity Sensor Proximity Sensor MU-1A-30-E
Switching voltage ≤ 24VDC Contact type Normally Open Operation distance_OFF→ON ± 10 mm Operation distance_ON→OFF ± 20 mm Standard sensing target Steel plate - a galvanized steel sheet 1.6t Operating frequency ≤ 500 Hz Material Cover/Case: PC (915R) Protection structure IP67(IEC standard) Environment_Ambient temperature -10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation resistance ≥ 1,000 MΩ (500 VDC megger) Dielectric strength 500VAC~ 50/60Hz for 1 min. Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times Applied REED SWITCH Model : ORD324-10-15 (STANDEX MEDER) Weight ≈ 107 g (≈ 147.2 g)
$28.51
Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-5DP2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target 18×18×1mm(iron) Response frequency 700Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$12.42

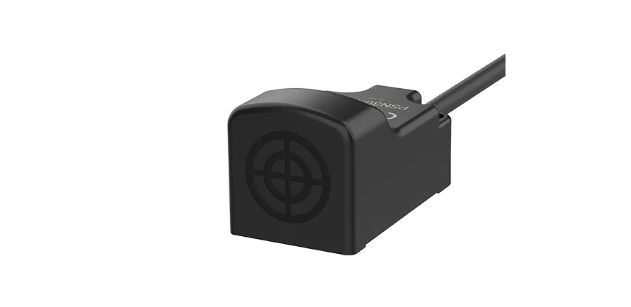

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN30-10DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 30mm Sensing distance 10mm Standard sensing target 30×30×1mm(iron) Response frequency 250Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 96g (≈165g)
$14.77
Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PFI25-8DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 25mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Upper sensing type Material Poly Phenylene Sulfide Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Residual voltage Max. 1.5V Weight Approx. 70g
$20.47
Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PSN40-20AO
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 40mm Sensing distance 20mm Standard sensing target 60×60×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 130g (≈ 219g)
$45.61

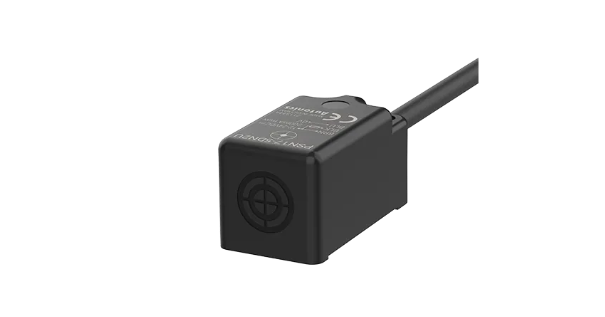

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-5DN2U
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 5mm Standard sensing target 18×18×1mm(iron) Response frequency 700Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Upper sensing type Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$11.99

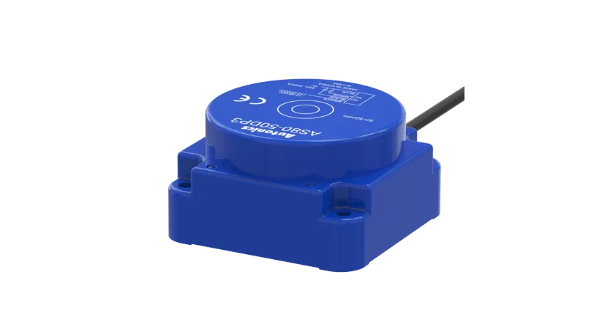

Autonics Autonics Proximity Sensor Square Type Long-Range Proximity Sensor DC4 AS80-50DN3
Wire type and power DC 4-wire type12-48VDC Sensing side size Frame size 80mm Sensing distance 50mm Standard sensing target 150×150×1mm(iron) Response frequency 30Hz Current specification Current consumption: Max. 20mA Control output NPN Normally Open+Normally Closed Sensing type Upper sensing type Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 15% of sensing distance Weight Approx. 470g
$95.75
Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PS08-2.5DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 8mm Sensing distance 2.5mm Standard sensing target 8×8×1mm(iron) Response frequency 1kHz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Polycarbonate Protection structure IP67(IEC standard) Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 20% at sensing distance Weight ≈ 16 g (≈ 30 g)
$28.51

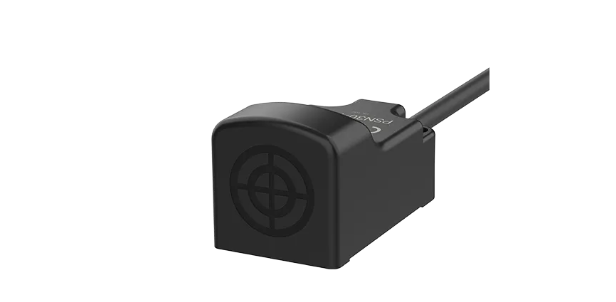

Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PSN30-10AO
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 30mm Sensing distance 10mm Standard sensing target 30×30×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 92g (≈ 161g)
$22.95

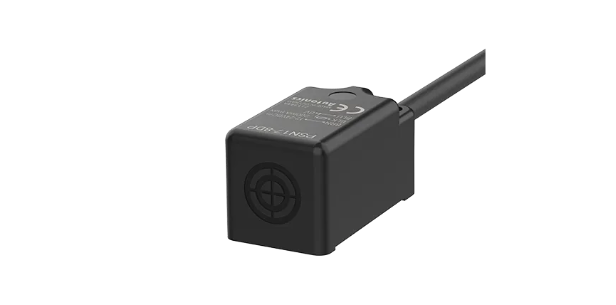

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-8DP
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output PNP Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$11.99

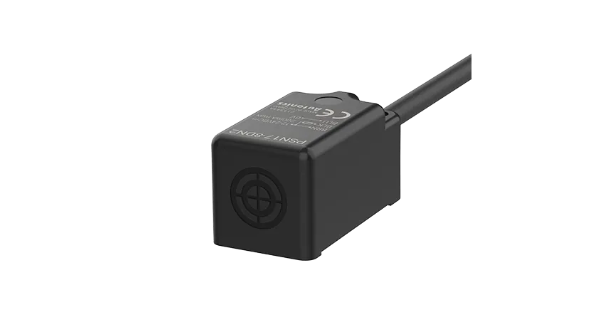

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN17-8DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 17mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 62g (≈ 83g)
$11.99

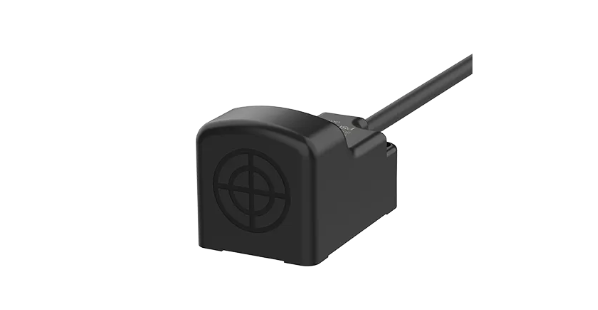

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN25-5DN
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 25mm Sensing distance 5mm Standard sensing target 25×25×1mm(iron) Response frequency 300Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 71g (≈103g)
$13.59

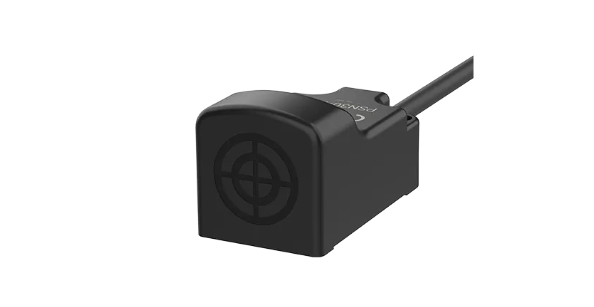

Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN30-15DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 30mm Sensing distance 15mm Standard sensing target 45×45×1mm(iron) Response frequency 200Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 96g (≈165g)
$14.77

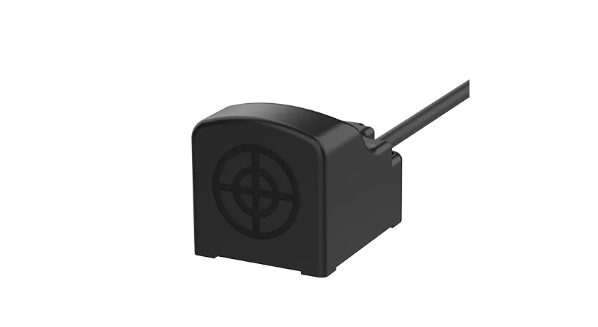

Autonics Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PSN40-20AC
Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 40mm Sensing distance 20mm Standard sensing target 60×60×1mm(iron) Response frequency 20Hz Current specification Leakage current: Max. 2.5mA Control output Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 130g (≈ 219g)
$45.61
Autonics Autonics Proximity Sensor Square Type Proximity Sensor DC 3-Wire PSN40-20DN2
Wire type and power DC 3-wire type 12-24VDC Sensing side size Frame size 40mm Sensing distance 20mm Standard sensing target 60×60×1mm(iron) Response frequency 100Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Closed Sensing type Standard type(front sensing type) Material Heat-resistant ABS Protection structure IP67 Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Weight ≈ 135g (≈225g)
$21.64
