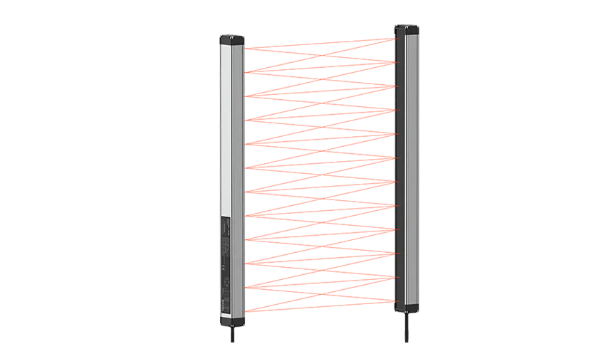

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-10H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 10 Sensing height 360mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$345.46

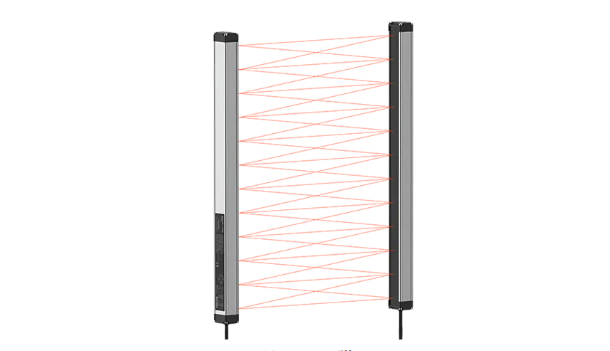

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-16H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height 600mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$467.06

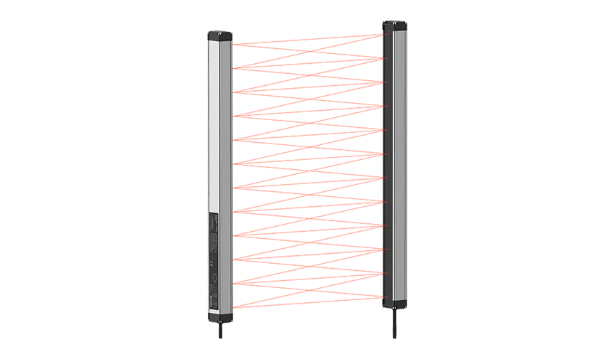

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-20H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 20 Sensing height 760mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$568.56
Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC80-14H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 80mm Number of optical axes 14 Sensing height 1,040mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø90mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$446.96

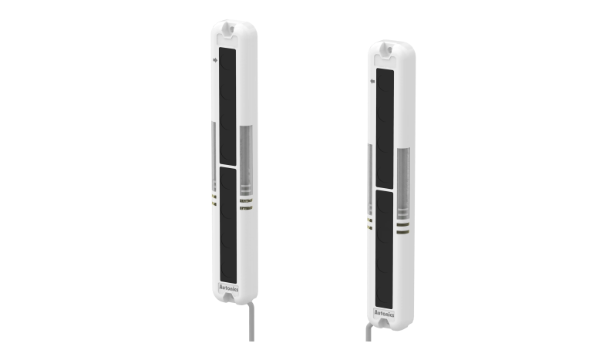

Autonics Autonics Area Sensor, Through-beam type(direct beam) BWP20-16P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/350mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 620g(approx. 360g)
$138.38

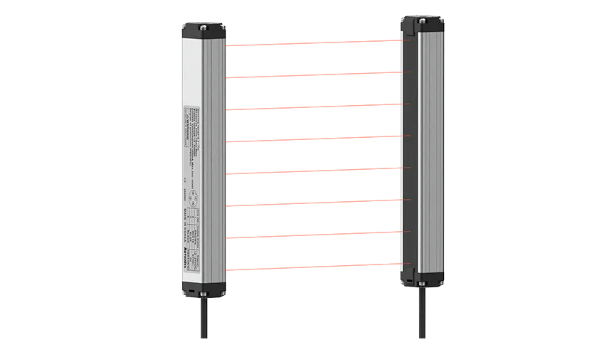

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-16
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height/Total length 600/640mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$387.39
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-22
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 22 Sensing height/Total length 840/880mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$516.52
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-12
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/240mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$202.89
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-20
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/400mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$313.63

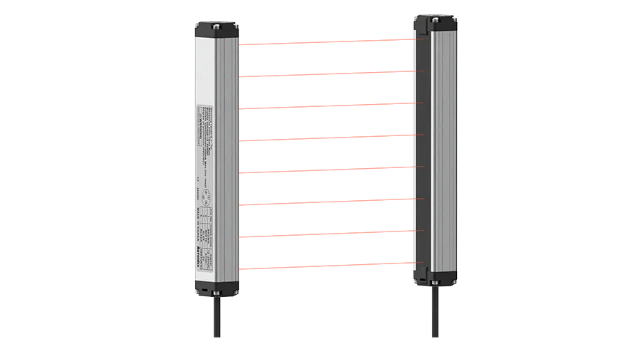

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-28
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 28 Sensing height/Total length 540/560mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$408.03
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-32
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 32 Sensing height/Total length 620/640mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$464.27
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-36
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 36 Sensing height/Total length 700/720mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$535.01
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-44
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 44 Sensing height/Total length 860/880mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$645.76
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-48
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 48 Sensing height/Total length 940/960mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$701.02
Autonics Autonics Area Sensor, Through-beam type BW20-08P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 8 Sensing height/Total length 140/160mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$147.52
Autonics Autonics Area Sensor, Through-beam type BW20-12P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/240mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$202.89
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-16P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/320mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$258.26
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-20P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/400mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$313.63
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-24P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 24 Sensing height/Total length 460/480mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$354.81
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-28P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 28 Sensing height/Total length 540/560mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$424.27

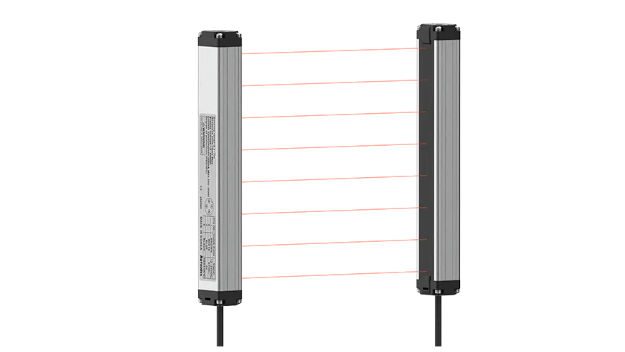

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-36P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 36 Sensing height/Total length 700/720mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$535.01
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-40P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 40 Sensing height/Total length 780/800mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$590.39
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-44P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 44 Sensing height/Total length 860/880mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$645.76
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-48P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 48 Sensing height/Total length 940/960mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$701.02
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-04P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 4 Sensing height/Total length 120/160mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$129.13

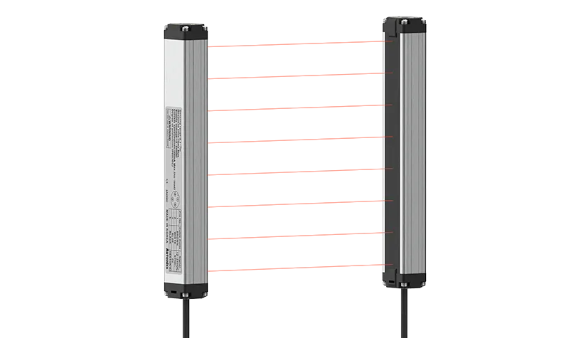

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-06P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 6 Sensing height/Total length 200/240mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$166.01
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-08P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 8 Sensing height/Total length 280/320mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$221.38

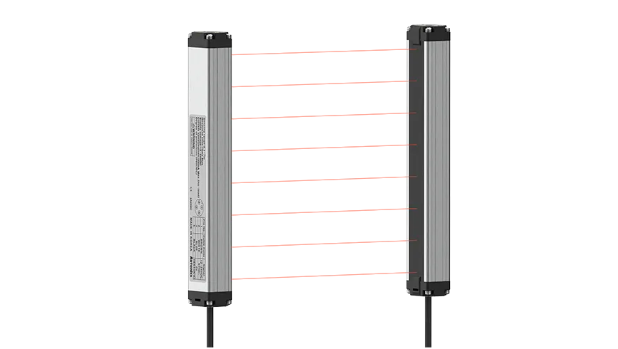

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-10P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 10 Sensing height/Total length 360/400mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$276.75

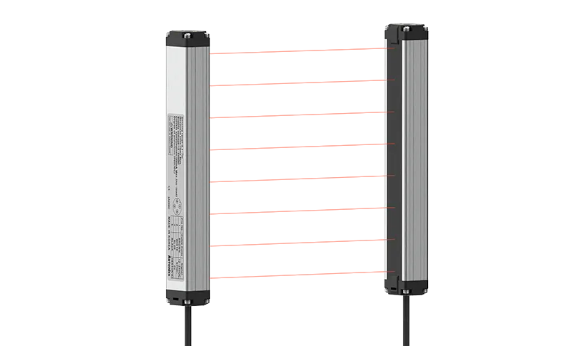

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-12P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 12 Sensing height/Total length 440/480mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$313.63
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-14P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 14 Sensing height/Total length 520/560mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$350.51
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-16P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height/Total length 600/640mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$387.39
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-18P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 18 Sensing height/Total length 680/720mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$442.76
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-20P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 20 Sensing height/Total length 760/800mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$479.64
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-22P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 22 Sensing height/Total length 840/880mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$516.52
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-24P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 24 Sensing height/Total length 920/960mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$553.51

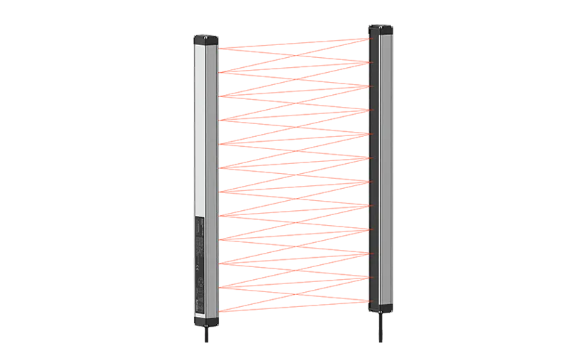

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-04HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 4 Sensing height 120mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$182.78

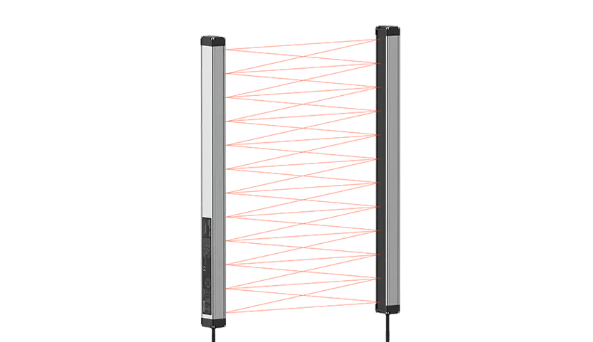

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-10HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 10 Sensing height 360mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$345.46

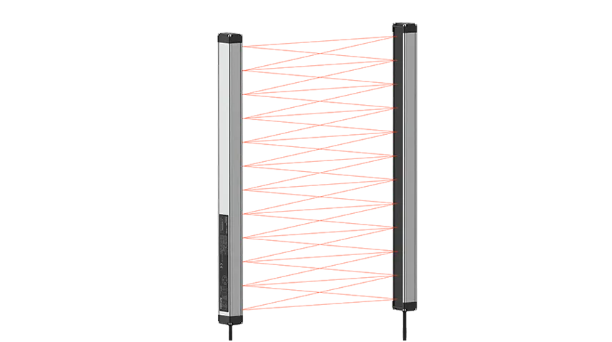

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-12HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 12 Sensing height 440mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$385.78
Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-16HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height 600mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$467.13

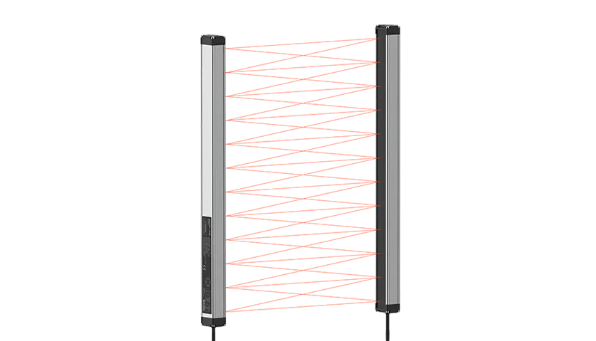

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-18HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 18 Sensing height 680mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$528.35

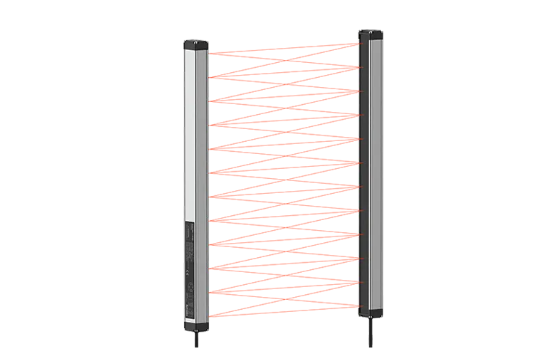

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-20HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 20 Sensing height 760mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$568.56

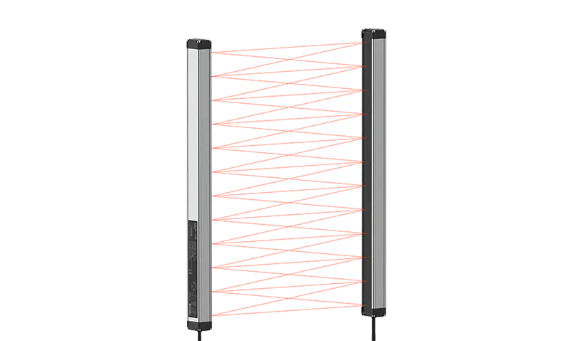

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC80-14HD
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 80mm Number of optical axes 14 Sensing height 1,040mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Dark ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Korean Railway Standards KRS SG 0068 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø90mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$446.96

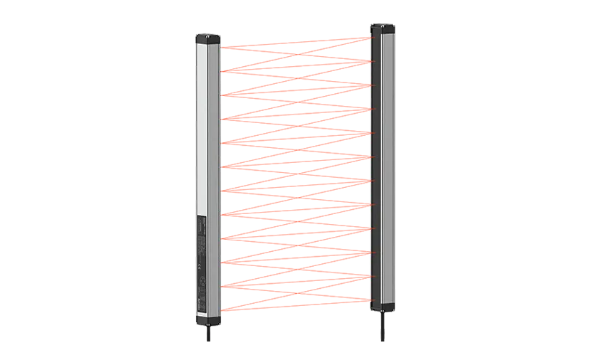

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-12H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 12 Sensing height 440mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$385.78

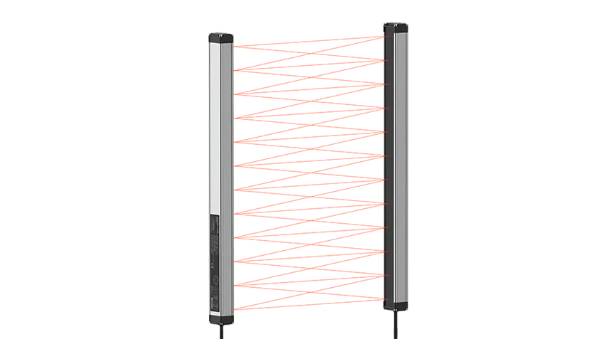

Autonics Autonics Area Sensor, Through-beam type(cross beam) BWC40-18H
Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 18 Sensing height 680mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
$528.35

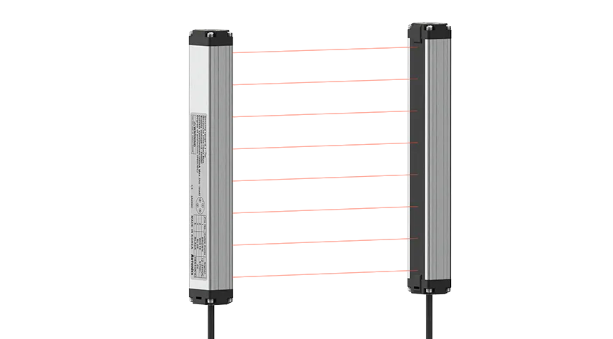

Autonics Autonics Area Sensor, Through-beam type(direct beam) BW20-40
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 40 Sensing height/Total length 780/800mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
$576.30

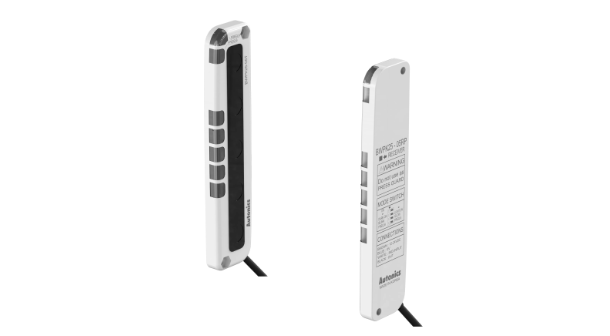

Autonics Autonics Area Sensor, Through-beam type(direct beam) BWPK25-05P
Sensing type Through-beam type(direct beam) Sensing distance Long distance mode: 0.1 to 3mShort distance mode: 0.05 to 1m Light source Infrared LED(850nm modulated) Optical axis pitch 25mm Number of optical axes 5 Sensing height 100mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø4, 2m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque materials of min. Ø35mm Response time Max. 30ms Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø4.0mm, 4-wire, 2m(emitter: Ø4.0mm, 3-wire, 2m)(AWG 22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm) Weight Approx. 220g(approx. 180g)
$83.00

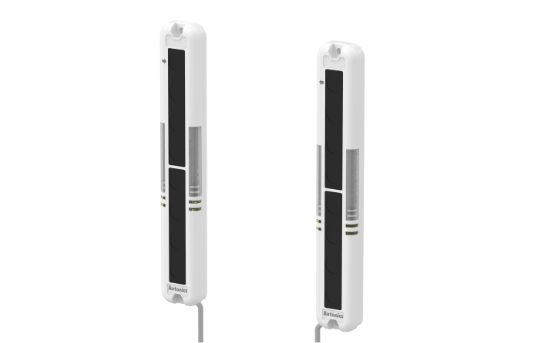

Autonics Autonics Area Sensor, Through-beam type(direct beam) BWP20-20P
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/430mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 680g(approx. 430g)
$156.76
Autonics Autonics Area Sensor, Through-beam type(direct beam) BW40-08
Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 8 Sensing height/Total length 280/320mm Power voltage 12-24VDC ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
$221.38
