Peacock Signal Gauge S-5

  • VendorPEACOCK

Description

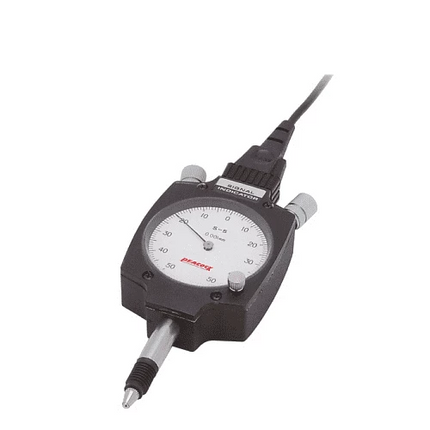

Peacock Signal Gauge S-5

Model S-5
Graduation 0.001mm
Measurement range 0.1 ( ±0.05 ) mm



  • With its high resolution of 0.001mm scale, it is most suitable for  judgement of the values measured on finished parts with high accuracy.
Specifications
Model S-5
Spindle Movable Range 3mm
Graduation 0.001mm
Tolerance Setting Range 0.1 ( ±0.05 ) mm
Accuracy ±0.002mm
Measuring Force Less than 1.2N ( 120gf )
Contact capacity MAX DC24V  20mA
Number of judgement Stages Three stages of -NG, OK and +NG
Cord length 2 m
Stem diameter ø8 mm
Operating temperature range 0 - 60 ℃
Options Code Length 5m 10m / Back cover with Lug (GB-1A)
Dial indicator for setting -----
Weight 180 g
Cable signal table 　
Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.



[PEACOCK] Signal Gauge S-5

Product form

Peacock Signal Gauge S-5 Model S-5 Graduation 0.001mm Measurement range 0.1 ( ±0.05 ) mm   With its high resolution... Read more

SKU: S-5

$800.83 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Peacock Signal Gauge S-5

    Model S-5
    Graduation 0.001mm
    Measurement range 0.1 ( ±0.05 ) mm



    • With its high resolution of 0.001mm scale, it is most suitable for  judgement of the values measured on finished parts with high accuracy.
    Specifications
    Model S-5
    Spindle Movable Range 3mm
    Graduation 0.001mm
    Tolerance Setting Range 0.1 ( ±0.05 ) mm
    Accuracy ±0.002mm
    Measuring Force Less than 1.2N ( 120gf )
    Contact capacity MAX DC24V  20mA
    Number of judgement Stages Three stages of -NG, OK and +NG
    Cord length 2 m
    Stem diameter ø8 mm
    Operating temperature range 0 - 60 ℃
    Options Code Length 5m 10m / Back cover with Lug (GB-1A)
    Dial indicator for setting -----
    Weight 180 g
    Cable signal table 　
    Caution When the current of 10 to 20 mA is used to drive a photocoupler, etc., the contact may be worn a little earlier.
    In SC-2A type, the COM terminal is body-grounded ( If leak current is found in other devices, put a gauge into floating status before mounting it ).
    In SC-2A type, a spindle can be set in a range from its free status to 3mm. Although it may be movable in excess of this limit, you cannot set it in such an excessive level in order to protect the spindle.
    In SC-2A type, when a dial gauge is dismounted after setting the tolerance, never forget to mount a dust protective cap.
