SMC Rodless Cylinder

SMC MY1B16-240 — MY1B series mechanically jointed rodless cylinder, ø16 bore with 240 mm stroke, basic type. The carriage is coupled to the piston through a slot in the tube, so the whole unit is only as long as its stroke plus the end caps. Specification — MY1B16-240 Series MY1B (mechanically jointed rodless cylinder) Bore ø16 mm Stroke 240 mm Type Basic — no integral guide Product weight 898 g Why rodless A rod cylinder needs its own stroke length again behind the body for the rod to retract into. At 240 mm that is half a metre of machine space for a quarter-metre of travel. A rodless cylinder keeps the moving element inside the tube, so the installed length is roughly the stroke plus the end caps — which is usually what decides whether a long transfer fits the frame at all. Choosing the guide type The B is the basic body with no integral guide: the carriage takes the load directly, so it suits light work or installations where an external rail already carries the weight. Five guide types are standardised across the MY1 range — slide bearing, cam follower, high precision and others — so the same stroke can be specified against the actual load and accuracy required rather than over-specified as a whole. Typical use Long transfers, gantry axes, door and

Read more less

SMC MY1M16-400L — MY1M series mechanically jointed rodless cylinder, ø16 bore with 400 mm stroke, slide bearing guide. The carriage runs on its own guide, so the load does not have to be supported by an external rail. Specification — MY1M16-400L Series MY1M (rodless cylinder, slide bearing guide) Bore ø16 mm Stroke 400 mm Guide Slide bearing, integrated Product weight 1,710 g Why rodless at 400 mm A rod cylinder needs its stroke length again behind the body for the rod to retract into — 800 mm of machine for 400 mm of travel. A rodless cylinder keeps the moving element inside the tube, so the installed length is roughly the stroke plus the end caps. On a long transfer that is usually what decides whether the axis fits the frame. Slide bearing guide The M version carries an integrated slide bearing guide, so the carriage takes the load directly and no external rail is needed. Slide bearings tolerate shock and contamination better than ball types and run quietly; the trade-off is more friction, so for high speed or high cycle rates the cam follower and ball bushing versions in the MY1 range are the better fit. Five guide types are standardised across the series, which lets the same stroke be specified against the actual load rather than over-specified. Typical use Long transfers, gantry axes, door and shutter movement, and traverses where the return length of a rod cylinder will not fit. Ordering Order by the full code MY1M16-400L. Bore, stroke and guide type are in the code. The MY1B is the basic body without an integrated guide, and the MY1B25

Read more less

SMC MY1B32-420Z — MY1B-Z series mechanically jointed rodless cylinder, ø32 bore with 420 mm stroke, basic type. The carriage is coupled to the piston through a slot in the tube, so the installed length is roughly the stroke plus the end caps. Specification — MY1B32-420Z Series MY1B-Z (mechanically jointed rodless cylinder) Bore ø32 mm Stroke 420 mm Type Basic — no integral guide Product weight 3,708 g Why rodless A rod cylinder needs its stroke length again behind the body for the rod to retract into — 840 mm of machine for 420 mm of travel. A rodless cylinder keeps the moving element inside the tube, which on a long transfer is usually what decides whether the axis fits the frame at all. What the Z generation changed Mass reduced by 17% against the previous MY1B Auto switches can be fitted from the front even at the groove positions, so a switch can be added without dismantling the axis Dust seal band retention changed to magnetic holding, which keeps the band seated better over long strokes — on a 420 mm unit that is where contamination gets in Mounting dimensions unchanged from the previous series The dust seal band A rodless cylinder has a slot running the length of the tube, closed by a steel band that the carriage lifts as it passes. That band is the weak point of the design: if it lifts or wanders, dust enters and the seal fails. The magnetic retention in this generation addresses exactly that, which matters more the longer the stroke. Ordering Order by the full code MY1B32-420Z. Bore, stroke and guide type are in the code. The MY1M gives a slide bearing guide in the same family, and five guide types are standardised across the MY1 range. Supply from Korea Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.

Read more less

SMC MY1B25G-150LZ — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-150LZ Bore 25mm Port thread Rc Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 1,670 g This code is built from bore 25mm, port thread Rc, stroke 150, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-150LZ.Supply from KoreaShips from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

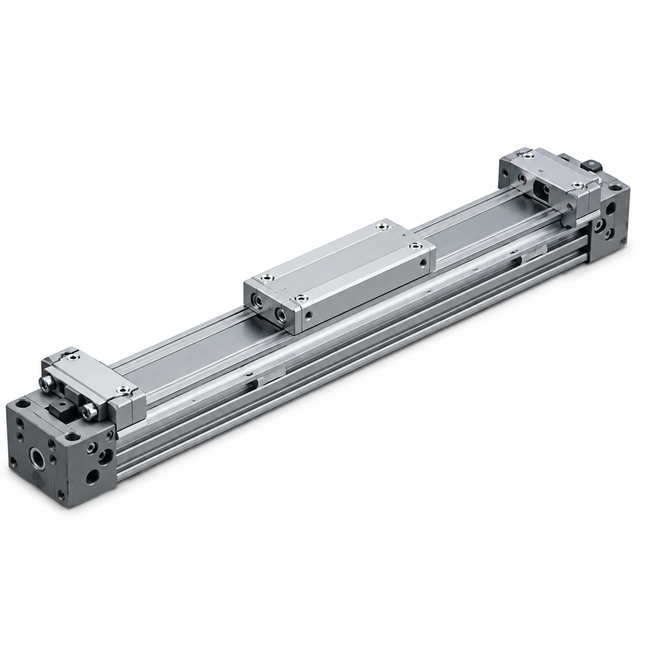

SMC MY1B25G-200LZ — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-200LZ Bore 25mm Port thread Rc Stroke 200mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 1,000 g This code is built from bore 25mm, port thread Rc, stroke 200mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-200LZ.Supply from KoreaStocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MY1B25G-250L — genuine SMC pneumatic cylinder from the MY1B series.Specification — MY1B25G-250L Bore 25mm Stroke 250 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.1 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 2,000 g This code is built from bore 25mm, stroke 250, auto switch Without auto switch, action Double acting. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-250L.Supply from KoreaKorean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.Related codesOther variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.

Read more less

SMC MY3M40-750 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 750 stroke, double acting, without auto switch. Specification — MY3M40-750 Bore 40mm Stroke 750 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 7,000 g Specification values above are for model code MY3M40-750 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M40-400H — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 400mm stroke, double acting, without auto switch. Specification — MY3M40-400H Bore 40mm Stroke 400mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 6,370 g Specification values above are for model code MY3M40-400H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M40-400 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 400mm stroke, double acting, without auto switch. Specification — MY3M40-400 Bore 40mm Stroke 400mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 5,510 g Specification values above are for model code MY3M40-400 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M40-300 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 300mm stroke, double acting, without auto switch. Specification — MY3M40-300 Bore 40mm Stroke 300mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 4,890 g Specification values above are for model code MY3M40-300 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-550 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 550 stroke, double acting, without auto switch. Specification — MY3M25-550 Bore 25mm Stroke 550 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,000 g Specification values above are for model code MY3M25-550 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-500 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 500mm stroke, double acting, without auto switch. Specification — MY3M25-500 Bore 25mm Stroke 500mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 3,000 g Specification values above are for model code MY3M25-500 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-400H-A93L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 400mm stroke. Specification — MY3M25-400H-A93L Bore 25mm Stroke 400mm About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-400 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 400mm stroke, double acting, without auto switch. Specification — MY3M25-400 Bore 25mm Stroke 400mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,580 g Specification values above are for model code MY3M25-400 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-300L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 300mm stroke, double acting, without auto switch. Specification — MY3M25-300L Bore 25mm Stroke 300mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,400 g Specification values above are for model code MY3M25-300L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-300 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 300mm stroke, double acting, without auto switch. Specification — MY3M25-300 Bore 25mm Stroke 300mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,160 g Specification values above are for model code MY3M25-300 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-250 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 250 stroke, double acting, without auto switch. Specification — MY3M25-250 Bore 25mm Stroke 250 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,000 g Specification values above are for model code MY3M25-250 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-200L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 200mm stroke, double acting, without auto switch. Specification — MY3M25-200L Bore 25mm Stroke 200mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,980 g Specification values above are for model code MY3M25-200L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-200HL — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 200mm stroke, double acting, without auto switch. Specification — MY3M25-200HL Bore 25mm Stroke 200mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 2,030 g Specification values above are for model code MY3M25-200HL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-200 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 200mm stroke, double acting, without auto switch. Specification — MY3M25-200 Bore 25mm Stroke 200mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,740 g Specification values above are for model code MY3M25-200 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-160 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 160 stroke, double acting, without auto switch. Specification — MY3M25-160 Bore 25mm Stroke 160 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,000 g Specification values above are for model code MY3M25-160 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-150L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 150 stroke, double acting, without auto switch. Specification — MY3M25-150L Bore 25mm Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,000 g Specification values above are for model code MY3M25-150L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-150 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 150 stroke, double acting, without auto switch. Specification — MY3M25-150 Bore 25mm Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,000 g Specification values above are for model code MY3M25-150 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M25-100 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 25mm bore, 100mm stroke, double acting, without auto switch. Specification — MY3M25-100 Bore 25mm Stroke 100mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,320 g Specification values above are for model code MY3M25-100 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-500 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 500mm stroke, double acting, without auto switch. Specification — MY3M16-500 Bore 16mm Stroke 500mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,090 g Specification values above are for model code MY3M16-500 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-450 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 450 stroke, double acting, without auto switch. Specification — MY3M16-450 Bore 16mm Stroke 450 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 1,000 g Specification values above are for model code MY3M16-450 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-250 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 250 stroke, double acting, without auto switch. Specification — MY3M16-250 Bore 16mm Stroke 250 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 690 g Specification values above are for model code MY3M16-250 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-150L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 150 stroke, double acting, without auto switch. Specification — MY3M16-150L Bore 16mm Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 630 g Specification values above are for model code MY3M16-150L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-150 — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 150 stroke, double acting, without auto switch. Specification — MY3M16-150 Bore 16mm Stroke 150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 530 g Specification values above are for model code MY3M16-150 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3M16-125L — MY3M Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 125 stroke, double acting, without auto switch. Specification — MY3M16-125L Bore 16mm Stroke 125 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.2 MPa Max. operating pressure 0.7 MPa Proof pressure 1.05 MPa Lubrication Non-lube Weight 590 g Specification values above are for model code MY3M16-125L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. About the SMC MY3M seriesCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B63-500 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 63mm bore, 500mm stroke, double acting, without auto switch. Specification — MY3B63-500 Bore 63mm Port thread Rc Stroke 500mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 13,380 g Specification values above are for model code MY3B63-500 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B63-450H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 63mm bore, 450 stroke, double acting, without auto switch. Specification — MY3B63-450H Bore 63mm Port thread Rc Stroke 450 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 13,000 g Specification values above are for model code MY3B63-450H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B63-450 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 63mm bore, 450 stroke, double acting, without auto switch. Specification — MY3B63-450 Bore 63mm Port thread Rc Stroke 450 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 12,000 g Specification values above are for model code MY3B63-450 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B63-350 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 63mm bore, 350 stroke, double acting, without auto switch. Specification — MY3B63-350 Bore 63mm Port thread Rc Stroke 350 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 10,000 g Specification values above are for model code MY3B63-350 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B63-2000H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 63mm bore, 2000mm stroke, double acting, without auto switch. Specification — MY3B63-2000H Bore 63mm Port thread Rc Stroke 2000mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 30,750 g Specification values above are for model code MY3B63-2000H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B50-300 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 50mm bore, 300mm stroke, double acting, without auto switch. Specification — MY3B50-300 Bore 50mm Port thread Rc Stroke 300mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,500 g Specification values above are for model code MY3B50-300 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B50-200H-M9BZ — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 50mm bore, 200mm stroke, double acting. Specification — MY3B50-200H-M9BZ Bore 50mm Port thread Rc Stroke 200mm Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,000 g Specification values above are for model code MY3B50-200H-M9BZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B50-1000H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 50mm bore, 1000mm stroke, double acting, without auto switch. Specification — MY3B50-1000H Bore 50mm Port thread Rc Stroke 1000mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 12,480 g Specification values above are for model code MY3B50-1000H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B50-1000 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 50mm bore, 1000mm stroke, double acting, without auto switch. Specification — MY3B50-1000 Bore 50mm Port thread Rc Stroke 1000mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 12,100 g Specification values above are for model code MY3B50-1000 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-850 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 850 stroke, double acting, without auto switch. Specification — MY3B40-850 Bore 40mm Port thread Rc Stroke 850 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,000 g Specification values above are for model code MY3B40-850 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-750H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 750 stroke, double acting, without auto switch. Specification — MY3B40-750H Bore 40mm Port thread Rc Stroke 750 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,000 g Specification values above are for model code MY3B40-750H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-750 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 750 stroke, double acting, without auto switch. Specification — MY3B40-750 Bore 40mm Port thread Rc Stroke 750 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,000 g Specification values above are for model code MY3B40-750 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-700 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 700mm stroke, double acting, without auto switch. Specification — MY3B40-700 Bore 40mm Port thread Rc Stroke 700mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 6,080 g Specification values above are for model code MY3B40-700 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-650 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 650 stroke, double acting, without auto switch. Specification — MY3B40-650 Bore 40mm Port thread Rc Stroke 650 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 5,000 g Specification values above are for model code MY3B40-650 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-500H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 500mm stroke, double acting, without auto switch. Specification — MY3B40-500H Bore 40mm Port thread Rc Stroke 500mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 5,340 g Specification values above are for model code MY3B40-500H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-500 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 500mm stroke, double acting, without auto switch. Specification — MY3B40-500 Bore 40mm Port thread Rc Stroke 500mm Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 5,080 g Specification values above are for model code MY3B40-500 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-410 — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 410 stroke, double acting, without auto switch. Specification — MY3B40-410 Bore 40mm Port thread Rc Stroke 410 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 4,000 g Specification values above are for model code MY3B40-410 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less

SMC MY3B40-1150H — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 40mm bore, 1150 stroke, double acting, without auto switch. Specification — MY3B40-1150H Bore 40mm Port thread Rc Stroke 1150 Auto switch Without auto switch Action Double acting Fluid Air Min. operating pressure 0.15 MPa Max. operating pressure 0.8 MPa Proof pressure 1.2 MPa Lubrication Non-lube Weight 8,000 g Specification values above are for model code MY3B40-1150H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code. Series featuresCompared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length Supply from KoreaGenuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.

Read more less
