Description

OVERVIEW

Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length

Specification item	model symbol	Specification information
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M thread (ø16), Rc (ø25 to ø63)
cylinder stroke	400	Cylinder stroke 400mm
Stroke adjustment unit symbol	H	Left: With shock absorber + adjustment bolt for H high load, right: With shock absorber + adjustment bolt for H high load
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape... Read more

SKU: MY3M25-400H-A93L

$647.85 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Sep 08, 2024 17:00:00 +0900

Description

OVERVIEW

Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length

Specification item	model symbol	Specification information
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M thread (ø16), Rc (ø25 to ø63)
cylinder stroke	400	Cylinder stroke 400mm
Stroke adjustment unit symbol	H	Left: With shock absorber + adjustment bolt for H high load, right: With shock absorber + adjustment bolt for H high load
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

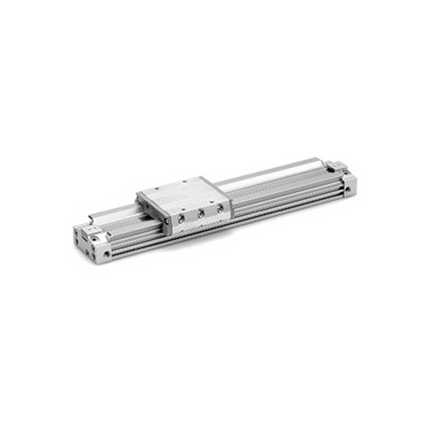

Name: SMC MY3M Series Mechanical Joint Type Rodless Cylinder, MY3M25-400H-A93L
