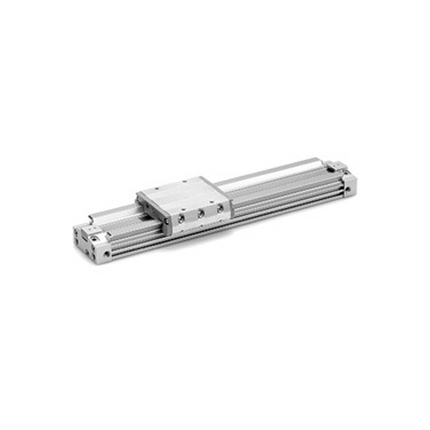

SMC MY3M Series Mechanical Joint Type Rodless Cylinder, MY3M25-550

Description

OVERVIEW


Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

  • Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
Specification item model symbol Specification information
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - M thread (ø16), Rc (ø25 to ø63)
cylinder stroke 550
Stroke adjustment unit symbol - Left: no unit, right: no unit
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape... Read more

SKU: MY3M25-550

$536.50 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

      • Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
      Specification item model symbol Specification information
      tube inner diameter 25 tube inner diameter 25mm
      Types of port screws - M thread (ø16), Rc (ø25 to ø63)
      cylinder stroke 550
      Stroke adjustment unit symbol - Left: no unit, right: no unit
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
