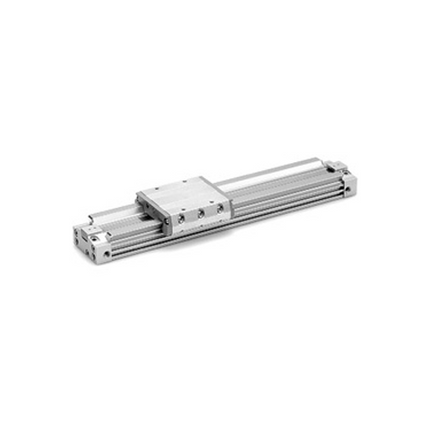

SMC MY3M Series Mechanical Joint Type Rodless Cylinder, MY3M25-200L

Description

OVERVIEW


Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

  • Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
Specification item model symbol Specification information
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - M thread (ø16), Rc (ø25 to ø63)
cylinder stroke 200 cylinder stroke 200mm
Stroke adjustment unit symbol L Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape... Read more

SKU: MY3M25-200L

$468.71 Excl. VAT

    • International express shipping
      (3–5 days, tracking included)
    • Shipping cost depends on destination & weight
    • Add 1 more item to reduce shipping cost per unit
    • Secure payments Paypal
    • Shipped today? Order within: Jan 23, 2026 17:00:00 +0900

    Description

    OVERVIEW


    Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

    • Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
    Specification item model symbol Specification information
    tube inner diameter 25 tube inner diameter 25mm
    Types of port screws - M thread (ø16), Rc (ø25 to ø63)
    cylinder stroke 200 cylinder stroke 200mm
    Stroke adjustment unit symbol L Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
