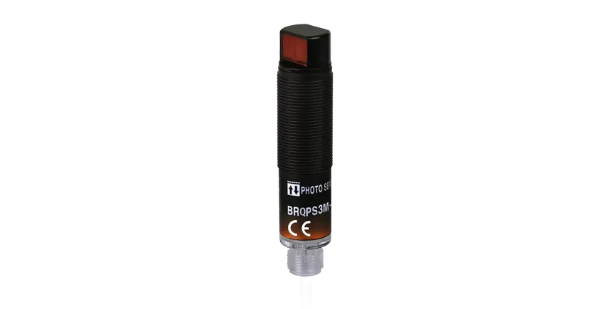

Autonics Photoelectric Sensor, Photoelectric Type BRQPS3M-PDTA-C-P

Description

Sensing type Retroreflective type(built-in polarizing filter)
Sensing distance 3m
Sensing target Opaque material of min. Ø75mm
Light source Red LED(660nm)
Response time Max. 1ms
Power voltage 10-30VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by control wire)
Control output PNP open collector
Connection type Connector type(M12)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃
Protection structure IP67(IEC standard)
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Polycarbonate
Lens, Lens cover: Polymethyl Methacrylate Acrylic
Weight Approx. 120g(approx. 25g)
Product form

Sensing type Retroreflective type(built-in polarizing filter) Sensing distance 3m Sensing target Opaque material of min. Ø75mm Light source Red LED(660nm)... Read more

SKU: BRQPS3M-PDTA-C-P

$54.72 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Sensing type Retroreflective type(built-in polarizing filter)
    Sensing distance 3m
    Sensing target Opaque material of min. Ø75mm
    Light source Red LED(660nm)
    Response time Max. 1ms
    Power voltage 10-30VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Max. 30mA
    Sensitivity adjustment Sensitivity adjuster
    Operation mode Light ON/Dark ON(set by control wire)
    Control output PNP open collector
    Connection type Connector type(M12)
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -25 to 60℃, storage: -30 to 70℃
    Protection structure IP67(IEC standard)
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Case: Polycarbonate
    Lens, Lens cover: Polymethyl Methacrylate Acrylic
    Weight Approx. 120g(approx. 25g)
