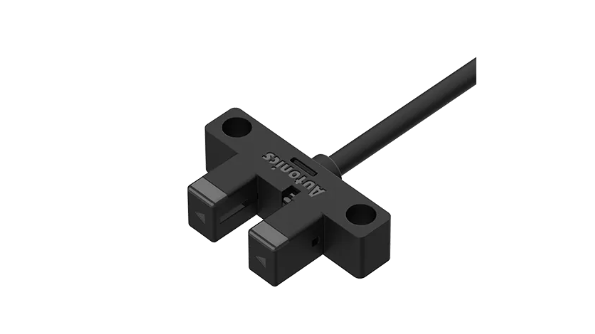

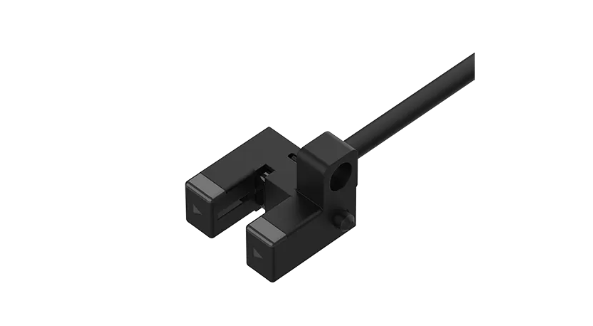

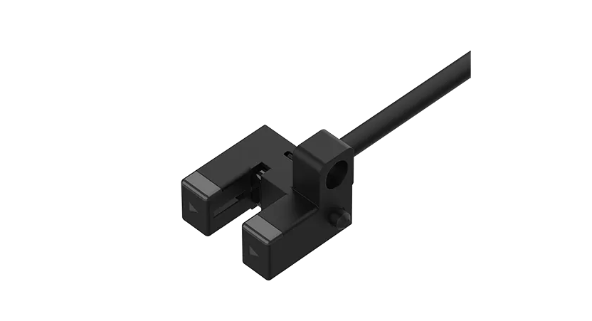

Autonics photoelectric micro sensor

Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC  ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC

Read more less

Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC  ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC

Read more less

Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC  ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output PNP open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC

Read more less

Sensing type Through-beam type Sensing distance 5mm Sensing target Opaque Min. sensing target ≥ 0.8 mm × 1.8 mm Hysteresis(distance) ≤0.05mm Response time Light ON: Max. 20㎲, Dark ON: Max. 100㎲ Response frequency 2kHz Light source Infrared LED Peak emission wavelength 940nm Operation mode Light ON/Dark ON(set by control wire) Indicator Operation indicator (red LED) Weight Approx. 50g Power voltage 5-24VDC  ±10%(ripple P-P : max. 10%) Current consumption Max. 15mA Control output NPN open collector Load voltage ≤ 24VDC Load current Max. 50mA Residual voltage NPN: ≤1.2VDC, PNP: ≤ 1.2VDC Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Insulation resistance ≥20 MΩ (250 VDC megger) Noise immunity The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC Dielectric strength 1,000VAC 50/60Hz for 1 minute Vibration 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours Shock 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Fluorescent lamp: Max. 1,000lx(received illumination) Environment_Ambient temperature -20 to 55℃, storage : -25 to 85℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP50 (IEC standard) Connection Cable type Connection type Ø2.5mm, 4-wire, 1m Core AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm Material Case: PBT, Sensing part: PC
