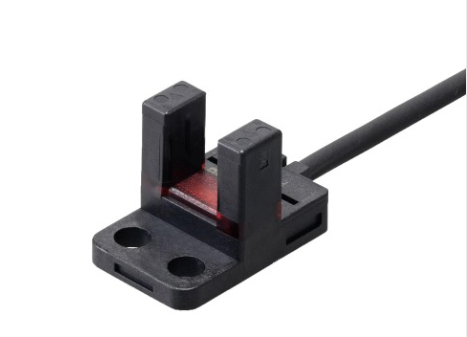

Product Number PM-Y45-C3 Part Number PM-Y45-C3 Product Amplifier Built-in / U-shaped Micro Photoelectric Sensor Details Compact / Cable type [Y type]   Item Specifications Product Number PM-Y45-C3 Part Number PM-Y45-C3 Products Name Amplifier Built-in / U-shaped Micro Photoelectric Sensor Product details Compact / Cable type [Y type] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 6 mm 0.236 in (fixed) Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object Hysteresis 0.05 mm 0.002 in or less Repeatability 0.01 mm 0.0004 in or less Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Current consumption 15 mA or less Output NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON Output:Short-circuit protection Incorporated Response time Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. Operation indicator Orange LED (lights up under light received condition) Pollution degree 3 Protection IP64 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉ Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated) Material Enclosure: PBTDisplay section: Polycarbonate Cable 0.09-mm2 4-core cabtyre cable, PVC, 3 m 9.843 ft long Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 30 g approx.Gross weight: 35 g approx. Remark Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
