Hanyoung Nux
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN40-T24N
PAN20 series Type A B C D1 E1 PAN20-T8 227 214.2 197 7 140 PAN20-T12 307 294.2 277 11 220 PAN20-T16 387 374.2 357 15 300 PAN20-T20 467 454.2 437 19 380 PAN20-T24 547 534.2 517 23 460 PAN20-T28 627 614.2 597 27 540 PAN20-T32 707 694.2 677 31 620 PAN20-T36 787 774.2 757 35 700 PAN20-T40 867 854.2 837 39 780 PAN20-T44 947 934.2 917 43 860 PAN20-T48 1027 1014.2 997 47 940 ■ PAN40 series Type A B C D2 E2 PAN40-T4 227 214.2 197 3 120 PAN40-T6 307 294.2 277 5 200 PAN40-T8 387 374.2 357 7 280 PAN40-T10 467 454.2 437 9 360 PAN40-T12 547 534.2 517 11 440 PAN40-T14 627 614.2 597 13 520 PAN40-T16 707 694.2 677 15 600 PAN40-T18 787 774.2 757 17 680 PAN40-T20 867 854.2 837 19 760 PAN40-T22 947 934.2 917 21 840 PAN40-T24 1027 1014.2 997 23 920 Production formation + PAN20 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN20-T8 8 EA 140 mm 70 mA Opaque object above Ø32 mm PAN20-T12 12 EA 220 mm 80 mA PAN20-T16 16 EA 300 mm 90 mA PAN20-T20 20 EA 380 mm 100 mA PAN20-T24 24 EA 460 mm 110 mA PAN20-T28 28 EA 540 mm 120 mA PAN20-T32 32 EA 620 mm 130 mA PAN20-T36 36 EA 700 mm 140 mA PAN20-T40 40 EA 780 mm 150 mA PAN20-T44 44 EA 860 mm 160 mA PAN20-T48 48 EA 940 mm 170 mA ※ Output types (NPN, PNP) are omitted. + PAN40 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN40-T4 4 EA 120 mm 50 mA Opaque object above Ø52 mm PAN40-T6 6 EA 200 mm 55 mA PAN40-T8 8 EA 280 mm 60 mA PAN40-T10 10 EA 360 mm 65 mA PAN40-T12 12 EA 440 mm 70 mA PAN40-T14 14 EA 520 mm 75 mA PAN40-T16 16 EA 600 mm 80 mA PAN40-T18 18 EA 680 mm 85 mA PAN40-T20 20 EA 760 mm 90 mA PAN40-T22 22 EA 840 mm 95 mA PAN40-T24 24 EA 920 mm 100 mA ※ Output types (NPN, PNP) are omitted.
$562.32
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN40-T20N
PAN20 series Type A B C D1 E1 PAN20-T8 227 214.2 197 7 140 PAN20-T12 307 294.2 277 11 220 PAN20-T16 387 374.2 357 15 300 PAN20-T20 467 454.2 437 19 380 PAN20-T24 547 534.2 517 23 460 PAN20-T28 627 614.2 597 27 540 PAN20-T32 707 694.2 677 31 620 PAN20-T36 787 774.2 757 35 700 PAN20-T40 867 854.2 837 39 780 PAN20-T44 947 934.2 917 43 860 PAN20-T48 1027 1014.2 997 47 940 ■ PAN40 series Type A B C D2 E2 PAN40-T4 227 214.2 197 3 120 PAN40-T6 307 294.2 277 5 200 PAN40-T8 387 374.2 357 7 280 PAN40-T10 467 454.2 437 9 360 PAN40-T12 547 534.2 517 11 440 PAN40-T14 627 614.2 597 13 520 PAN40-T16 707 694.2 677 15 600 PAN40-T18 787 774.2 757 17 680 PAN40-T20 867 854.2 837 19 760 PAN40-T22 947 934.2 917 21 840 PAN40-T24 1027 1014.2 997 23 920 Production formation + PAN20 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN20-T8 8 EA 140 mm 70 mA Opaque object above Ø32 mm PAN20-T12 12 EA 220 mm 80 mA PAN20-T16 16 EA 300 mm 90 mA PAN20-T20 20 EA 380 mm 100 mA PAN20-T24 24 EA 460 mm 110 mA PAN20-T28 28 EA 540 mm 120 mA PAN20-T32 32 EA 620 mm 130 mA PAN20-T36 36 EA 700 mm 140 mA PAN20-T40 40 EA 780 mm 150 mA PAN20-T44 44 EA 860 mm 160 mA PAN20-T48 48 EA 940 mm 170 mA ※ Output types (NPN, PNP) are omitted. + PAN40 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN40-T4 4 EA 120 mm 50 mA Opaque object above Ø52 mm PAN40-T6 6 EA 200 mm 55 mA PAN40-T8 8 EA 280 mm 60 mA PAN40-T10 10 EA 360 mm 65 mA PAN40-T12 12 EA 440 mm 70 mA PAN40-T14 14 EA 520 mm 75 mA PAN40-T16 16 EA 600 mm 80 mA PAN40-T18 18 EA 680 mm 85 mA PAN40-T20 20 EA 760 mm 90 mA PAN40-T22 22 EA 840 mm 95 mA PAN40-T24 24 EA 920 mm 100 mA ※ Output types (NPN, PNP) are omitted.
$485.98
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN40-T18N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$448.35
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN40-T14N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$344.06
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor , PAN40-T6N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$172.03
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN20-T24N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$419.32
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN20-T28P
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$419.32
Hanyoung Nux Hanyoung Nux Highly reliable photo area sensor, PAN20-T28N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$419.32

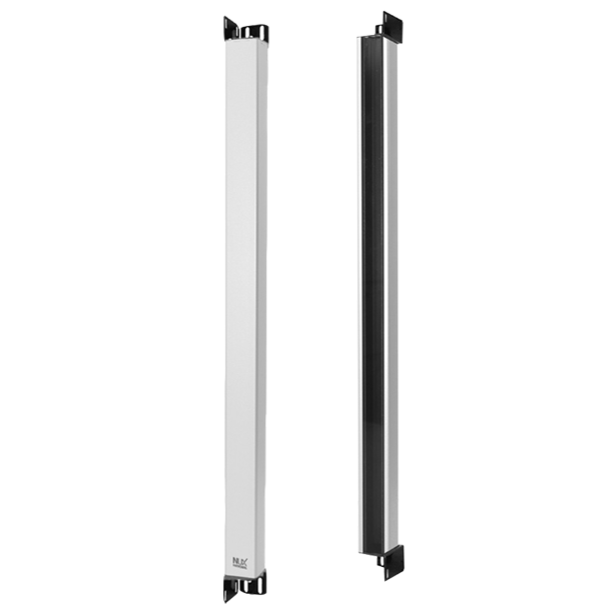

Hanyoung Nux Hanyoung Nux Area Sensor, Highly reliable photo area sensor with dedicated chip PAN20-T44N
Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl
$648.34

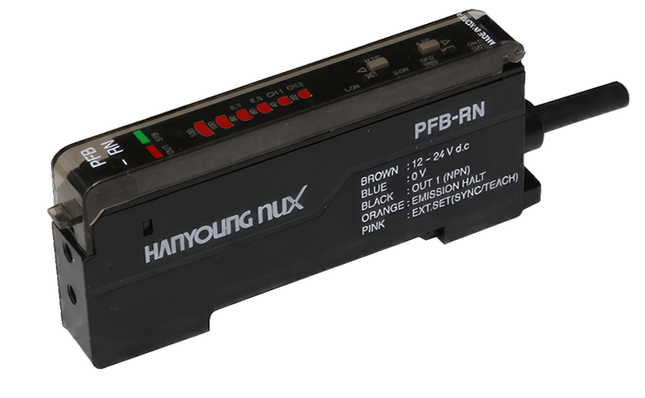

Hanyoung Nux Hanyoung Nux Fiber optic sensor PFB-RN
PFB seriesBar display fiber optic sensor - Sensitivity setting by auto-teaching- Light volume indication by Bar LED- External teaching input/external synchronous input- Output delay time (40 ㎳ fixed)- Mutual interference prevention, power reverse connection protection, output short circuit protection- Light ON/ Dark ON selection by slide switch Specification Model PFB-RN PFB-RP Appearance Sensing method Through beam type, reflection type ( By the fiber cable ) Sensing distance By the fiber sensor Power supply voltage 12 - 24 V d.c. ±10 % (Ripple less than 10%) Current consumption max 20 ㎃ Control output NPN open collector output, max 100 ㎃ (30 VDC) PNP open collector output, max 100 ㎃ (30 VDC) Output action L.ON, D.ON selection Time function NORMAL, ON-Delay, OFF-Delay (Delay time 40 ㎳ fixed) Responce time max 1 ㎳ Hysteresis Reflection type : Less than 10% of the sensing distance Light source (wave length) Infrared lightening LED (660 ㎚) LED Displayed by Bar LED Sensitivity adjustment Auto teaching/manual installution by using the set button Protective circuit Built in the reversed power supply connection protective circuit and output short protective circuit and motual interference prevention Ambient illumination • Sunlight : max 11,000 Lux • Incandescent lamp : max 3,000 Lux Ambient temperature -10 ~ 55 ℃(Surrounding storage temperature : -25 ~ 70 ℃) Ambient humidity 35 ~ 85 % R.H.(With no condensation) Protective structure IP 40 (IEC) Insulation resistance min 20 ㏁ (500 VDC between the code and case, between the adjustment switch and case) Dielectric strength 1000 VAC, 50/60 ㎐ for 1 min Vibration resistance 10 - 55 Hz double amplitude 1.5 ㎜, for 2 hours each in X, Y and Z directions Shock resistance 500 m/s² 3 times each in X, Y and Z directions Connection method • Code extended type, • Code length : 2 m. • No.of lines : 5 P, • thickness : Ø4 ㎜. • DIN rail installation structure Material Case : heat resistance ABS Weight Approx. 150g (Included the weight of box and fixing bracket)
$44.15

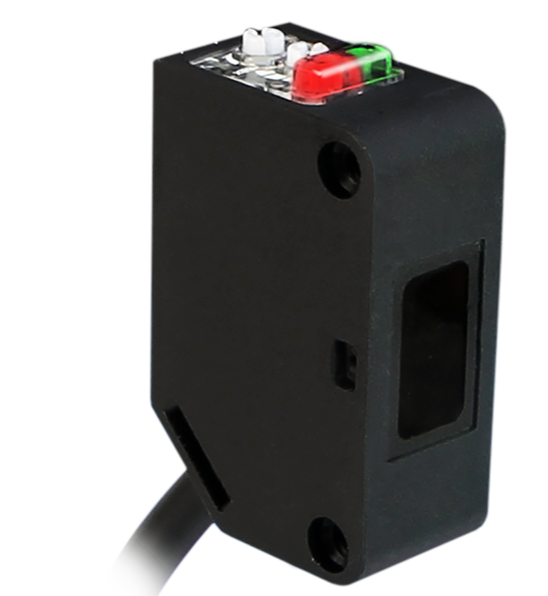

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PB-D04N
PB seriesGeneral Purpose Photoelectric Sensors - 25.4mm standard mounting hole- Hanyoung Nux new ASIC chip used (operation stability, long-distance detection)- Built-in VR for sensitivity adjustment- Convenient operation mode selection by VR- You can check the presence of overload with the output short circuit notification function- Excellent noise immunity and reduced disturbance of light influence- Strong protection circuit PB-R/D Model NPN PB-R01N PB-R04RN PB-R1N PB-D04N PNP PB-R01P PB-R04RP PB-R1P PB-D04P Sensing mode Diffuse-reflective Distancesettable Sensing distance 100 mm 400 mm 1 m 400 mm Hysteresis distance 20 % or less of detection distance Detecting object White non-glossy paper (100 x 100 mm) Light source (wavelength) IR (860nm) RED (640nm) IR (860nm) Current consumption Max. 30 mA Protection circuit Common ▪Power reverse connection protection, ▪Output reverse connection protection, ▪Output short-circuit over-current protection, ▪Output short-circuit alarm (Note 2) Individual Mutual interference prevention function Accessory Common Brackets A, volt (M3 X 12 mm), Volume driver Individual ─ Optional Brackets B, Brackets C, Mirror (HY-M5S) Weight Approximately 50g ■ Specification Power voltage 12 - 24 V d.c. ±10 % (Ripple max. 10 %) Control output NPN or PNP open collector output ▪Load current - max. 100 mA (26.4 V d.c. standard) ▪Residual voltage - NPN: max. 1 V, PNP : max. 1 V Operation mode Light ON / Dark ON switch Response time 1 ms or less Insulation Resistance More than 20 MΩ (500 V d.c. mega) Noise immunity Square wave noise by noise simulator (pulse width 1 μs) ± 240 V Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration resistance 10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours Shock resistance 500 m/s², X·Y·Z each direction 3 times Ambient illumination ▪Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx Ambient temperature ▪During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation or icing) Ambient humidity ▪35 ~ 85 % RH (Without condensation) Degree of protection IP65 (IEC standard) Certification Material Case PBT GF30 % Display PC Lens PC
$28.99

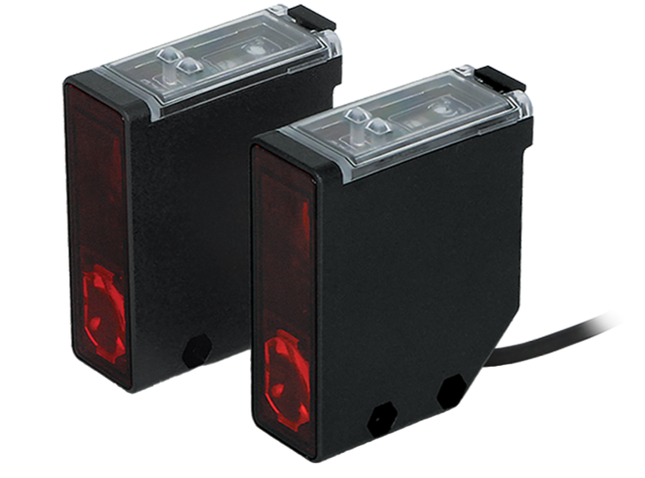

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PL-D2B
PL-D2BDistance setting type Photoelectric Sensors - Distance setting type and bgs(Backgound suppression)function- Stable detection regardless object's color and material- Applicable in various fields with long detection distance(2m) Model PL-D2B Appearance Sensing method Distance - settable Sensing distance 0.2 ~ 2 m Detecting object White non-glossy paper (200x200 ㎜) Power voltage 12 - 24 V d.c. ±10 % Current consumption Max. 30 ㎃ Control output • NPN / PNP open collector asynchronously • Load current : max. 150 ㎃ d.c. (resistive load) • NPN residual voltage : max. 1 V d.c. • PNP residual voltage : max. 2 V d.c. Operation mode Light ON / Dark ON ※ Selectable by the mode V/R Response time Max. 2 ㎳. Hysteresis Less than 10% of the sensing distance Light source (wavelength) Infrared LED (880 nm) Receiving part 2 Photo diodes LED Indicator • Control out display : Red LED • Stability display: Green LED Distance setting Near/Far : Optical distance adjusting volume 5 cycles. Protection circuit Reverse polarity protection and output short-circuit protection Ambient illumination • Sunlight: max. 11000 lx • Incandescent lamp: max. 3000 lx Ambient temperature & humidity • Operation : -20 ~ 60 ℃ • Storage : -25 ~ 70 ℃, 35 ~ 85 % RH (without condensation) Degree of protection IP65 (IEC 60529) Insulation resistance Min. 20 MΩ. (500 V d.c. Mega) Dielectric strength 1,000 V a.c. (50/60 Hz for 1 min) Vibration resistance 10 - 55 Hz, double amplitude : 1.5mm for 2 hours each in X. Y and Z directions. Shock resistance 500 m/s² 3 times each in X. Y and Z directions Connection method • Cable output type • Number of wires : 4P • Thickness : Ø 4mm • Length 2m Material • Case : PC • Lens : PC Accessory Bracket, Adjustable driver, bolt, Nut. Approval
$35.13

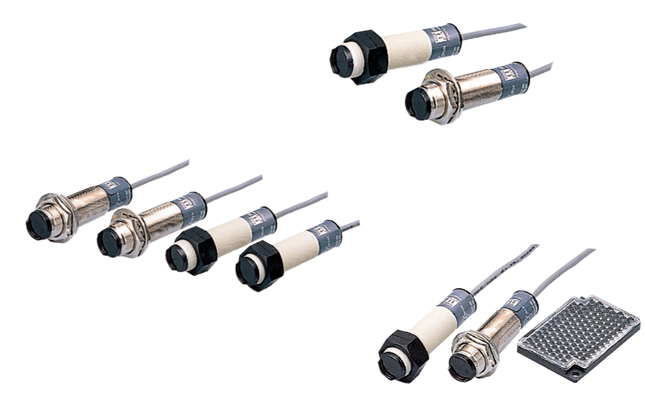

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PRM-R01N
PR seriesRound type Photoelectric Sensors - Light on / Dark on selectable- Attached sensitivity adjustment volume- Protection structure IP66, circular structure- Built in output cutoff over current protecting circuit odel Metal NPN PR-T10NC PRM-M2N PRM-R01N PRM-R04N PNP PR-T10PC PRM-M2P PRM-R01P PRM-R04P Plastic NPN PR-T10NP PRP-M2N PRP-R01N PRP-R04N PNP PR-T10PP PRP-M2P PRP-R01P PRP-R04P Sensing mode Through-beam Retroreflective (mirror) Diff use-reflective Sensing distance 10 m 0.1 ~ 2mm (Note 1) 0.1m 0.4m Hysteresis distance - Less than 20% of the sensing range Detecting object Ø10 mm more (Opaque) Ø60 mm more (Opaque) White non-glossy paper (100 x 100 mm) Light source (Wavelength) Infrared ligtening LED (890 ㎚) IR (860 nm) Current consumption Transmitter : 15 ㎃ Receiver : 20 ㎃ Max. 30 mA Power voltage 12 - 24 V d.c. ± 10 % (Ripple max. 10 %) Control output ▪NPN or PNP open collector output ▪Load current - max. 100 mA (26.4 V d.c. standard) ▪Residual voltage - NPN : max. 1 V, PNP : max. 1 V Operation mode Light ON / Dark ON(By white cable) ※ but, through-beam has only in the receiver Protection circuit Common ▪Power reverse connection protection ▪Output reverse connection protection ▪Output short-circuit over-current protection ▪Output short-circuit alarm (Note2) Individual - Mutual interference prevention function Response time 1 ms or less Insulation Resistance More than 20 MΩ (500 V d.c. mega) Noise immunity Square wave noise by noise simulator (pulse width 1㎲) ± 240 V Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration bresistance 10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours Shock resistance 500 m/s², X·Y·Z each direction 3 times Ambient illumination Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx (Light receiving surface illuminance) Ambient temperature During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation) Ambient humidity 35 ~ 85 % RH (Without condensation) Degree of protection IP66 (IEC standard) Certification Material Case ▪Metal : Brass Chrome Plating ▪Plastic : Plastic Display PC Lens PC Accessory Common ▪Metal : 2 fixing nuts, 1 washer, V/R adjustment screwdriver ▪Plastic : 2 fixing nuts, V/R adjustment screwdriver Individual - Mirror (HY-M5) - Weight ▪Metal : Approx. 320g ▪Plastic : Approx. 280g ▪Metal : Approx. 160g ▪Plastic : Approx. 140g
$30.95

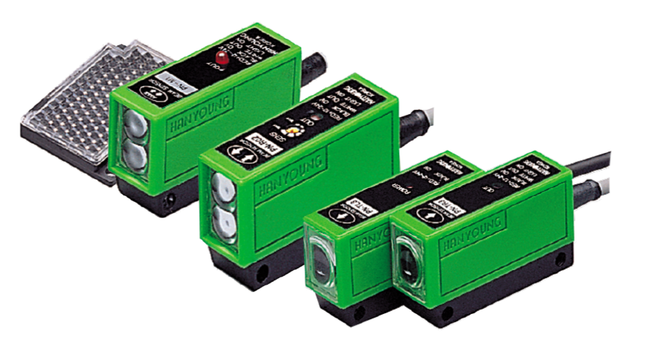

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PN-R02
PN seriesVoltage output type Photoelectric Sensors - Attached motion display light- Built in output cutoff protecting circuit- Attached sensitivity adjustment volume- Selection of output operation due to control line- Built in reverse connection of power protecting circuit Model PN-T3 PN-M1 PN-R02 Appearance Sensing method Throug beam Retro reflection Diffuse reflection Sensing distance 3 m 0.1-1 m 200 ㎜ Sensing object Opaque object above Ø8 ㎜ Opaque object above Ø60 ㎜ White paper with no gloss 200 x 200 Power supply voltage 12 - 24 V d.c. (±10 %) Current consumption Emitter 20 ㎃ d.c. 30 ㎃ d.c. max Receiver 18 ㎃ d.c Control output NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max Output action Selection of L. ON/D. by the control line (Through beam is only with the receiver) Response time 3 ㎳ max Hysteresis - less than 20% of the sensing distance Light source (wave length) Infrared lightening LED (850 ㎚) LED Control output indicator : Red LED (But emitter of the through beam indicates the power with red LED) Sensitivity adjustment By the sensitivity adjusting volume (Exclude the emitter of through beam type) Protective circuit Power reverse connection protecting circuit and output break protecting circuit Ambient illumination Sunlight: max 11,000 Lux, incandescent lamp : max 3,000 Lux Ambient temperature Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃,(Without condensation) Ambient humidity 35 ~ 85 % R.H. (With no condensation) Insulation resistance 20 ㏁ min(500 V d.c.) Dielectric strength 1,000 V a.c. for 1 min Vibration resistance 10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction Shock resistance 500 m/s², 3 times each in X·Y and Z directions Connection method Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P) Material Case and lens : PC Weight Approx. 250g (included the weight of box) Approx. 150g (included the weight of box) Approx. 100g (included the weight of box)
$25.28

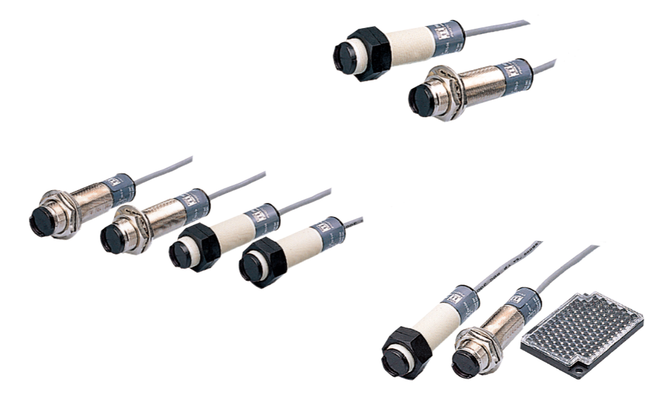

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PRM-R04N
PR seriesRound type Photoelectric Sensors - Light on / Dark on selectable- Attached sensitivity adjustment volume- Protection structure IP66, circular structure- Built in output cutoff over current protecting circuit Model Metal NPN PR-T10NC PRM-M2N PRM-R01N PRM-R04N PNP PR-T10PC PRM-M2P PRM-R01P PRM-R04P Plastic NPN PR-T10NP PRP-M2N PRP-R01N PRP-R04N PNP PR-T10PP PRP-M2P PRP-R01P PRP-R04P Sensing mode Through-beam Retroreflective (mirror) Diff use-reflective Sensing distance 10 m 0.1 ~ 2mm (Note 1) 0.1m 0.4m Hysteresis distance - Less than 20% of the sensing range Detecting object Ø10 mm more (Opaque) Ø60 mm more (Opaque) White non-glossy paper (100 x 100 mm) Light source (Wavelength) Infrared ligtening LED (890 ㎚) IR (860 nm) Current consumption Transmitter : 15 ㎃ Receiver : 20 ㎃ Max. 30 mA Power voltage 12 - 24 V d.c. ± 10 % (Ripple max. 10 %) Control output ▪NPN or PNP open collector output ▪Load current - max. 100 mA (26.4 V d.c. standard) ▪Residual voltage - NPN : max. 1 V, PNP : max. 1 V Operation mode Light ON / Dark ON(By white cable) ※ but, through-beam has only in the receiver Protection circuit Common ▪Power reverse connection protection ▪Output reverse connection protection ▪Output short-circuit over-current protection ▪Output short-circuit alarm (Note2) Individual - Mutual interference prevention function Response time 1 ms or less Insulation Resistance More than 20 MΩ (500 V d.c. mega) Noise immunity Square wave noise by noise simulator (pulse width 1㎲) ± 240 V Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration bresistance 10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours Shock resistance 500 m/s², X·Y·Z each direction 3 times Ambient illumination Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx (Light receiving surface illuminance) Ambient temperature During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation) Ambient humidity 35 ~ 85 % RH (Without condensation) Degree of protection IP66 (IEC standard) Certification Material Case ▪Metal : Brass Chrome Plating ▪Plastic : Plastic Display PC Lens PC Accessory Common ▪Metal : 2 fixing nuts, 1 washer, V/R adjustment screwdriver ▪Plastic : 2 fixing nuts, V/R adjustment screwdriver Individual - Mirror (HY-M5) - Weight ▪Metal : Approx. 320g ▪Plastic : Approx. 280g ▪Metal : Approx. 160g ▪Plastic : Approx. 140g
$30.95

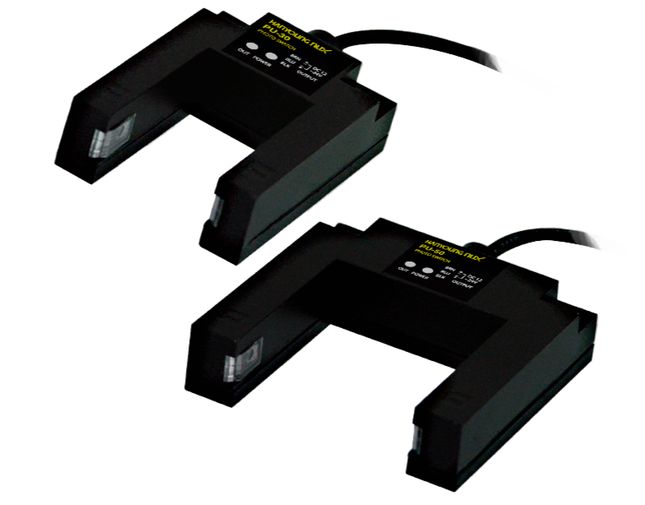

Autonics Hanyoung Nux Photoelectric Sensor, Photoelectric Type PU-30
PU seriesU-Shaped type Photoelectric Sensors - Solid die casting case- Detecting distance 30/50 mm- Optic axis control unnecessary- Attached sensitivity adjustment volume Model PU-30 PU-30S PU-50 PU-50S Sensing method Through-beam Sensing distance 30 mm 50 mm Sensing object Ø2 ㎜ min (Opaque body) Ø0.6 ㎜ min (Opaque body) Ø1.5 ㎜ min (Opaque body) Ø0.4 ㎜ min (Opaque body) Power supply voltage 12 - 24 V d.c. ± 10 % Current consumption 30 ㎃ max Control output NPN Voltage output, Load current : 200 ㎃ (30 V d.c.) max, Remaining voltage : 2 V d.c. max Output action L.ON/D.ON selected by the power reverse connection Response time 1 ㎳ max Light source (wave length) Infrared LED Operation Lamp Operation Indicator : Red LED, Power Indicator : Green LED Sensitivity adjustment Fixed By the volume Fixed By the volume Protective circuit Output short protective circuit Ambient illumination ▪Sunlight : 11,000 Lux max ▪Incandescent lamp : 3,000 Lux max Ambient temperature operating temperature : -20 ~ 60 ℃ During storage : -25 ~ 70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % RH (With no condensation) Protective structure IP 65 (IEC) Insulation resistance More than 20 MΩ (500 V d.c. mega) Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration resistance 10 - 55 ㎐ double amplitude 1.5 ㎜, for 2 hours each in X · Y · Z directions Shock resistance 500 m/s², 3 times each in X · Y · Z directions Connection method Cable withdrawal type (number of wires : 3P, outer diameter : Ø4 ㎜, length : 2 m) Material Case : ZN, Lens : PC Certification Weight Approx. 250g (Included the weight of box)
$33.04

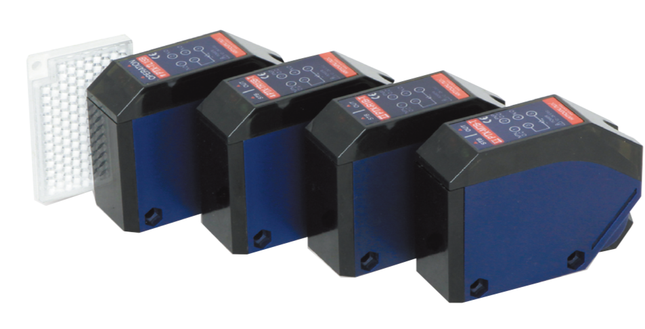

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PTX-R1A
PTX seriesPower supply build-in type Photoelectric Sensors - Terminal block type connection for convenient wiring- various range of power supply voltage (24 - 240 V d.c./a.c., 12 - 24 V d.c.).- Long-Distance detection.- Timer function available.- Ip66 protection structure. ■ Power built-in type (Type A) Model Normal type PTX-T15A PTX-M7A PTX-R1A Timerbuilt-in type PTX-T15A-T PTX-M7A-T PTX-R1A-T Sensing type Through beam type Retro reflection type Diffuse reflection type Sensing distance 15m 7m (Note 1) 1m Sensing object Opaque object above Ø20 ㎜ Opaque object above Ø60 ㎜ White paper with no gloss 200 ㎜ × 200 m Power supply voltage 24 - 240 V d.c./a.c. ±10 %, 50/60 Hz Power Consumption Emitter : 2 VA max. Transmitter : 1 VA max. 2 VA max. Control output Relay contact output (Contact composition 1a, 1b), Contact capacity : 30 V d.c. 5 A / 250 V a.c. 5 A Resistive load, Rated load life expectancy less than 100,000 times. Operating Mode Light ON/Dark ON are selectable by the selector switch Response Time 20 ㎳ max. Hysteresis － Less than 20 % of sensing distance Indicator Output indication : Red LED, Stability indication : Green LED (However, the red LED of the through-beam type transmitter is the power indicator.) Sensitivity adjustment － Sensitivity adjusting volume built-in Protection circuit Surge protective circuit Timer function (Only corresponds to timer built - in type) Select OFF Delay, ON Delay or One Shot Delay by using the ON/OFF switch. Delay Time : 0.1 ~ 5 sec adjust by the volume. Light source (wavelength) IR (850 nm) Ambient temperature Operating: -20 to 60 ° C, Storage: -25 ~ 70 ℃ (with no icing nor dew condensation) Ambient humidity 35 ~ 85 % RH (with no icing nor dew condensation) Degree of protection IP 66 (IEC standard) Insulation resistance 20 ㏁ or min (standard on 500 V d.c. mega) Dielectric strength 1500 V a.c. (1 minute) Vibration resistance 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X . Y . Z 2 hours in each directions Shock resistance 500m/s² (approx 50 G), X . Y . Z 3 times in each directions Connection method Terminal Material Case : ABS, Lens : PC Weight Transmission type : Approx 300 g, Mirror reflection type : about 160 g, Diffuse reflection type : about 150 g Accessories Individual - Reflector (HY-M5) - Common Driver, Bracket, Bolt, Nut, Water-proof rubber, Wire holder
$36.55

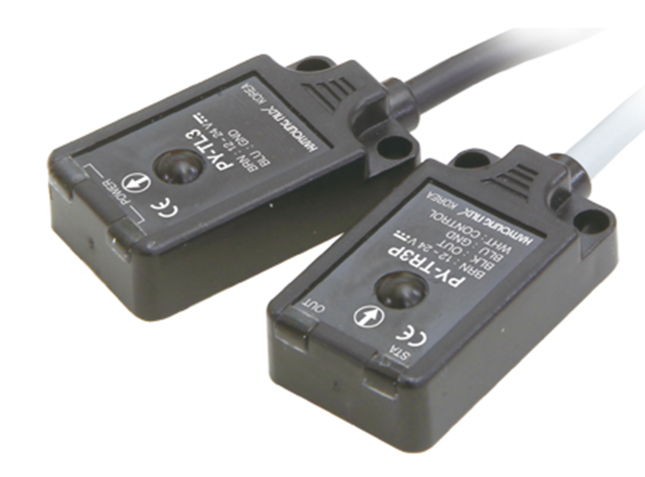

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PY-T3N
PY seriesSlim type Photoelectric Sensors - Light ON / Dark ON mode switching selection by control wire.- 1 ms response time.- Display control output/stable output.- Built in output cutoff protecting circuit.- Simple installation (16X28X8 mm) due to compact size.- Built in reverse connection of power protecting circuit. Model NPN PY-T3N PNP PY-T3P Appearance Sensing mode Through - beam Sensing distance 3m Sensing object Ø5 mm min. opaque object Min. sensing object Ø2 mm min. opaque object (3 m standard) Hysteresis distance None Power voltage 12 - 24 V d.c. ±10 % Current consumption Emitter : 10 mA max. Receiver : 15 mA max. Control output NPN or PNP open collector output Load current : 100 mA max. (26.4 V d.c. standard) Residual voltage - NPN : 1V max. , PNP : 1V max Operation mode Light ON / Dark ON mode switching selection by control wire (receiver only) Response time 1 ㎳ max Light source (wavelength) Infrared LED (850 nm) LED Red LED : control output, green LED: stability indication (However, emitter red LED : power indication) Protecting circuit Power reverse connection protecting circuit and output break overcurrent protecting circuit. Output break (note 1), output reverse connection protection circuit Ambient illumination Sunlight : 11,000 Lux max., Incandescent lamp : 3,000 Lux max Ambient temperature -20 ~ 60 ℃ (storage ambient temperature : -25 ~ 70 ℃) Ambient humidity 35 ~ 85 % RH (without condensation) Protection rating IP67 (IEC) Insulation resistance 20 MΩ min. (500 V d.c. mega standard) Noise immunity Square wave noise by noise simulator (pulse width : 1 μs) ± 240 V Dielectric strength 1,000 V a.c. (50/60 ㎐ for 1 minute) Vibration resistance 10 - 55 ㎐, double amplitude : 1.5 ㎜, for 2 hours in X·Y·Z directions Shock resistance 500 m/s² 3 times in each X·Y·Z directions Certification Connection method Wire extended type Connection specifications Ø3 mm, 4-core, 2 m (emitter: Ø3 mm, 2-core, 2 m) Materials ▪Case : PC, ▪Lens : PC Weight approx. 66g
$36.55

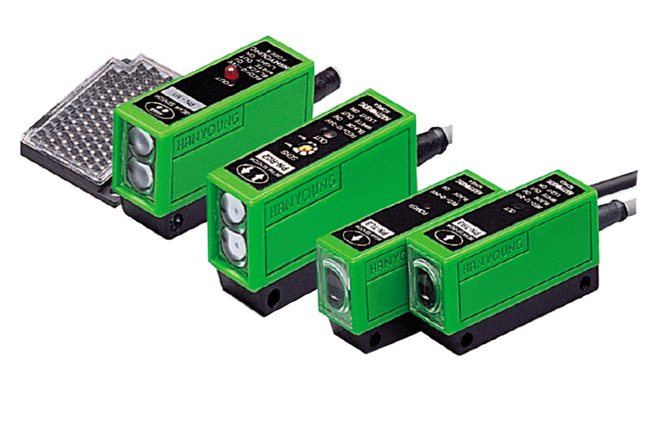

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PN-M1
PN seriesVoltage output type Photoelectric Sensors - Attached motion display light- Built in output cutoff protecting circuit- Attached sensitivity adjustment volume- Selection of output operation due to control line- Built in reverse connection of power protecting circuit Model PN-T3 PN-M1 PN-R02 Appearance Sensing method Throug beam Retro reflection Diffuse reflection Sensing distance 3 m 0.1-1 m 200 ㎜ Sensing object Opaque object above Ø8 ㎜ Opaque object above Ø60 ㎜ White paper with no gloss 200 x 200 Power supply voltage 12 - 24 V d.c. (±10 %) Current consumption Emitter 20 ㎃ d.c. 30 ㎃ d.c. max Receiver 18 ㎃ d.c Control output NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max Output action Selection of L. ON/D. by the control line (Through beam is only with the receiver) Response time 3 ㎳ max Hysteresis - less than 20% of the sensing distance Light source (wave length) Infrared lightening LED (850 ㎚) LED Control output indicator : Red LED (But emitter of the through beam indicates the power with red LED) Sensitivity adjustment By the sensitivity adjusting volume (Exclude the emitter of through beam type) Protective circuit Power reverse connection protecting circuit and output break protecting circuit Ambient illumination Sunlight: max 11,000 Lux, incandescent lamp : max 3,000 Lux Ambient temperature Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃,(Without condensation) Ambient humidity 35 ~ 85 % R.H. (With no condensation) Insulation resistance 20 ㏁ min(500 V d.c.) Dielectric strength 1,000 V a.c. for 1 min Vibration resistance 10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction Shock resistance 500 m/s², 3 times each in X·Y and Z directions Connection method Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P) Material Case and lens : PC Weight Approx. 250g (included the weight of box) Approx. 150g (included the weight of box) Approx. 100g (included the weight of box)
$25.28

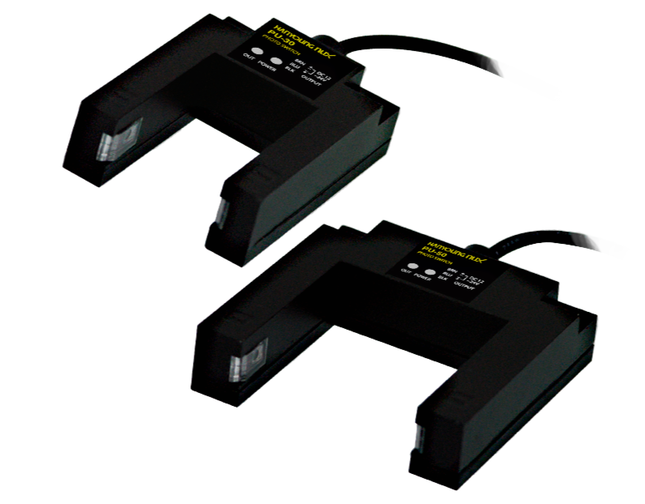

Autonics Hanyoung Nux Photoelectric Sensor, Photoelectric Type PU-50S
PU seriesU-Shaped type Photoelectric Sensors - Solid die casting case- Detecting distance 30/50 mm- Optic axis control unnecessary- Attached sensitivity adjustment volume Model PU-30 PU-30S PU-50 PU-50S Sensing method Through-beam Sensing distance 30 mm 50 mm Sensing object Ø2 ㎜ min (Opaque body) Ø0.6 ㎜ min (Opaque body) Ø1.5 ㎜ min (Opaque body) Ø0.4 ㎜ min (Opaque body) Power supply voltage 12 - 24 V d.c. ± 10 % Current consumption 30 ㎃ max Control output NPN Voltage output, Load current : 200 ㎃ (30 V d.c.) max, Remaining voltage : 2 V d.c. max Output action L.ON/D.ON selected by the power reverse connection Response time 1 ㎳ max Light source (wave length) Infrared LED Operation Lamp Operation Indicator : Red LED, Power Indicator : Green LED Sensitivity adjustment Fixed By the volume Fixed By the volume Protective circuit Output short protective circuit Ambient illumination ▪Sunlight : 11,000 Lux max ▪Incandescent lamp : 3,000 Lux max Ambient temperature operating temperature : -20 ~ 60 ℃ During storage : -25 ~ 70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % RH (With no condensation) Protective structure IP 65 (IEC) Insulation resistance More than 20 MΩ (500 V d.c. mega) Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration resistance 10 - 55 ㎐ double amplitude 1.5 ㎜, for 2 hours each in X · Y · Z directions Shock resistance 500 m/s², 3 times each in X · Y · Z directions Connection method Cable withdrawal type (number of wires : 3P, outer diameter : Ø4 ㎜, length : 2 m) Material Case : ZN, Lens : PC Certification Weight Approx. 250g (Included the weight of box)
$38.98

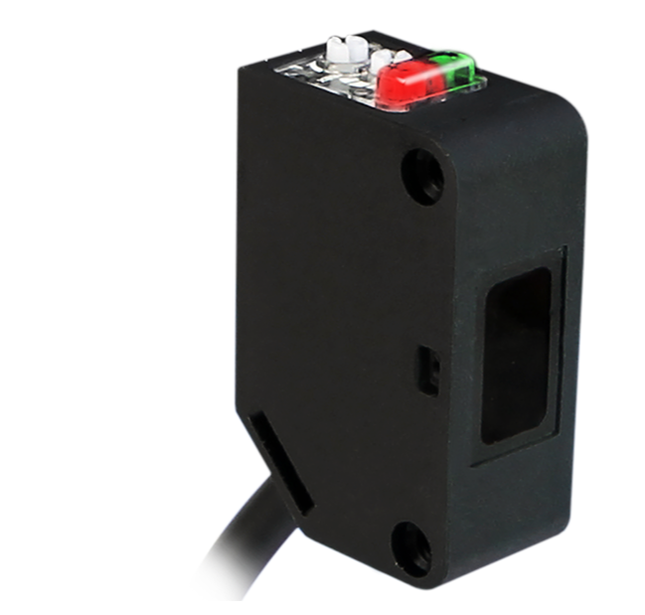

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PB-R01N
PB seriesGeneral Purpose Photoelectric Sensors - 25.4mm standard mounting hole- Hanyoung Nux new ASIC chip used (operation stability, long-distance detection)- Built-in VR for sensitivity adjustment- Convenient operation mode selection by VR- You can check the presence of overload with the output short circuit notification function- Excellent noise immunity and reduced disturbance of light influence- Strong protection circuit Model NPN PB-R01N PB-R04RN PB-R1N PB-D04N PNP PB-R01P PB-R04RP PB-R1P PB-D04P Sensing mode Diffuse-reflective Distancesettable Sensing distance 100 mm 400 mm 1 m 400 mm Hysteresis distance 20 % or less of detection distance Detecting object White non-glossy paper (100 x 100 mm) Light source (wavelength) IR (860nm) RED (640nm) IR (860nm) Current consumption Max. 30 mA Protection circuit Common ▪Power reverse connection protection, ▪Output reverse connection protection, ▪Output short-circuit over-current protection, ▪Output short-circuit alarm (Note 2) Individual Mutual interference prevention function Accessory Common Brackets A, volt (M3 X 12 mm), Volume driver Individual ─ Optional Brackets B, Brackets C, Mirror (HY-M5S) Weight Approximately 50g ■ Specification Power voltage 12 - 24 V d.c. ±10 % (Ripple max. 10 %) Control output NPN or PNP open collector output ▪Load current - max. 100 mA (26.4 V d.c. standard) ▪Residual voltage - NPN: max. 1 V, PNP : max. 1 V Operation mode Light ON / Dark ON switch Response time 1 ms or less Insulation Resistance More than 20 MΩ (500 V d.c. mega) Noise immunity Square wave noise by noise simulator (pulse width 1 μs) ± 240 V Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration resistance 10 - 55 Hz, Double amplitude : 1.5 mm, X·Y·Z 2 in each direction for 2 hours Shock resistance 500 m/s², X·Y·Z each direction 3 times Ambient illumination ▪Sunlight : max. 11,000 lx / Incandescent : max 3,000 lx Ambient temperature ▪During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃ (Without condensation or icing) Ambient humidity ▪35 ~ 85 % RH (Without condensation) Degree of protection IP65 (IEC standard) Certification Material Case PBT GF30 % Display PC Lens PC
$26.60

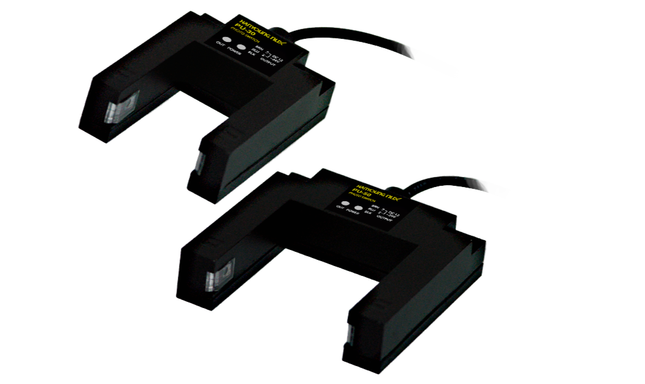

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PU-50
PU seriesU-Shaped type Photoelectric Sensors - Solid die casting case- Detecting distance 30/50 mm- Optic axis control unnecessary- Attached sensitivity adjustment volume Model PU-30 PU-30S PU-50 PU-50S Sensing method Through-beam Sensing distance 30 mm 50 mm Sensing object Ø2 ㎜ min (Opaque body) Ø0.6 ㎜ min (Opaque body) Ø1.5 ㎜ min (Opaque body) Ø0.4 ㎜ min (Opaque body) Power supply voltage 12 - 24 V d.c. ± 10 % Current consumption 30 ㎃ max Control output NPN Voltage output, Load current : 200 ㎃ (30 V d.c.) max, Remaining voltage : 2 V d.c. max Output action L.ON/D.ON selected by the power reverse connection Response time 1 ㎳ max Light source (wave length) Infrared LED Operation Lamp Operation Indicator : Red LED, Power Indicator : Green LED Sensitivity adjustment Fixed By the volume Fixed By the volume Protective circuit Output short protective circuit Ambient illumination ▪Sunlight : 11,000 Lux max ▪Incandescent lamp : 3,000 Lux max Ambient temperature operating temperature : -20 ~ 60 ℃ During storage : -25 ~ 70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % RH (With no condensation) Protective structure IP 65 (IEC) Insulation resistance More than 20 MΩ (500 V d.c. mega) Dielectric strength 1,000 V a.c. (50/60 Hz for 1 minute) Vibration resistance 10 - 55 ㎐ double amplitude 1.5 ㎜, for 2 hours each in X · Y · Z directions Shock resistance 500 m/s², 3 times each in X · Y · Z directions Connection method Cable withdrawal type (number of wires : 3P, outer diameter : Ø4 ㎜, length : 2 m) Material Case : ZN, Lens : PC Certification Weight Approx. 250g (Included the weight of box)
$35.33

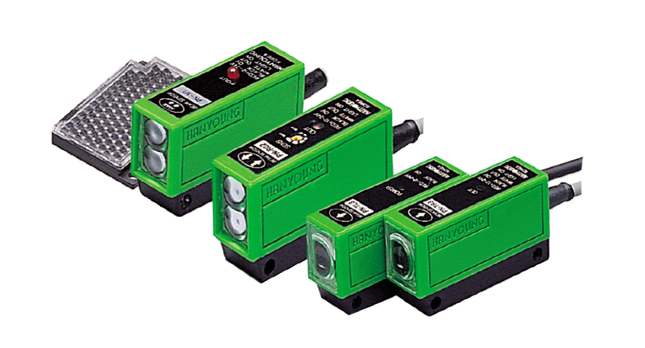

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PN-T3
PN seriesVoltage output type Photoelectric Sensors - Attached motion display light- Built in output cutoff protecting circuit- Attached sensitivity adjustment volume- Selection of output operation due to control line- Built in reverse connection of power protecting circuit Model PN-T3 PN-M1 PN-R02 Appearance Sensing method Throug beam Retro reflection Diffuse reflection Sensing distance 3 m 0.1-1 m 200 ㎜ Sensing object Opaque object above Ø8 ㎜ Opaque object above Ø60 ㎜ White paper with no gloss 200 x 200 Power supply voltage 12 - 24 V d.c. (±10 %) Current consumption Emitter 20 ㎃ d.c. 30 ㎃ d.c. max Receiver 18 ㎃ d.c Control output NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max Output action Selection of L. ON/D. by the control line (Through beam is only with the receiver) Response time 3 ㎳ max Hysteresis - less than 20% of the sensing distance Light source (wave length) Infrared lightening LED (850 ㎚) LED Control output indicator : Red LED (But emitter of the through beam indicates the power with red LED) Sensitivity adjustment By the sensitivity adjusting volume (Exclude the emitter of through beam type) Protective circuit Power reverse connection protecting circuit and output break protecting circuit Ambient illumination Sunlight: max 11,000 Lux, incandescent lamp : max 3,000 Lux Ambient temperature Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃,(Without condensation) Ambient humidity 35 ~ 85 % R.H. (With no condensation) Insulation resistance 20 ㏁ min(500 V d.c.) Dielectric strength 1,000 V a.c. for 1 min Vibration resistance 10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction Shock resistance 500 m/s², 3 times each in X·Y and Z directions Connection method Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P) Material Case and lens : PC Weight Approx. 250g (included the weight of box) Approx. 150g (included the weight of box) Approx. 100g (included the weight of box)
$25.28

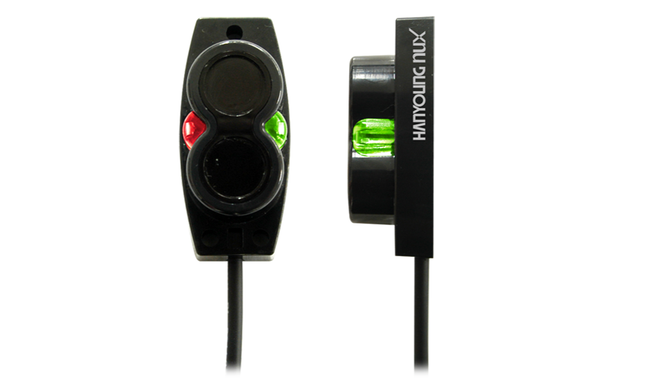

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PLD-R2N
PLD seriesAmplifier built-in type Photoelectric Sensors - 2M long distance detection by applying double layer structure lens- Stable light ON indicator (green)- Built in sensitivity adjustment function Model PLD-R2N PLD-R2P Appearance Sensing Type Diffuse - reflective Sensing distance 2m Detecting object White non-glossy paper (200x200 ㎜) Power voltage 12 - 24 V d.c. ±10 % Power consumption Max. 30 ㎃ d.c. Control output • NPN open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below • PNP open collector Max. 150 mA d.c. (resistance load) • Residual voltage: 1 V d.c. Below Operation mode Light On mode Response time Max. 1 ms Hysteresis Within 20 % of detectable distance Light source (wavelength) Infrared LED (850 nm) LED Indicator • Control output : Red LED • Safety : green LED Sensitivity adjustment 'Built-in' sensitivity adjustment V/R (220。degree spin V/R) Protection circuit Reverse polarity protection, overcurrent protection Ambient intensity of illumination • Sunlight: max. 11000 Lux, • Incandescent lamp: max. 3000 Lux Ambient temperature & humidity • When operating: -20 ~ 60 ℃, • when maintaining: -25 ~ 70 ℃, max. 35 ~ 85 % RH (without freezing) Degree of protection IP64 (IEC 60529) Insulating resistance 20 ㏁ or more (based on 500Vd.c. mega) Dielectric strength 1000 V a.c. for 1 min Vibration resistance 10-55 ㎐ double amplitude 1.5mm, X,Y,Z each direction for 2 hours Shock resistance 500 m/s² X·Y·Z each direction for 3 times Connection method • Cable pull-out typed • Number of wires: 3P • Outer diameter: Ø3 ㎜ • Length: 2 m Material • Case: PET • Lens cap: PC • Lens : PMMA Cable 3P (26 AWG), length : 2 m Accessories Sensitivity adjusting driver, Fixing volt (3-M3 X 17L) Certification Weight 60g
$32.20

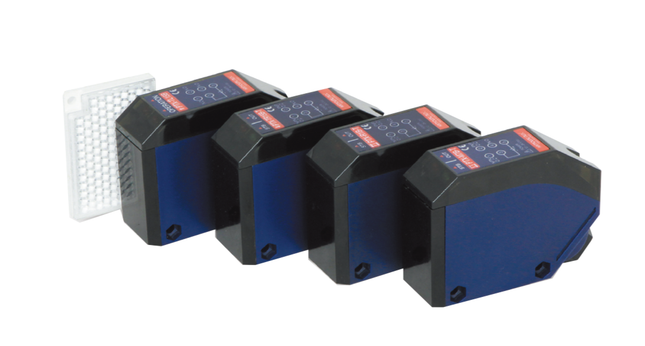

Hanyoung Nux Hanyoung Nux Photoelectric Sensor, Photoelectric Type PTX-M7B
PTX seriesPower supply build-in type Photoelectric Sensors - Terminal block type connection for convenient wiring- various range of power supply voltage (24 - 240 V d.c./a.c., 12 - 24 V d.c.).- Long-Distance detection.- Timer function available.- Ip66 protection structure. Amp built-in type (Type B) Model Normal type PTX-T15B PTX-T30B PTX-M7B PTX-R1B Timerbuilt-in type PTX-T15B-T PTX-T30B-T PTX-M7B-T PTX-R1B-T Sensing type Through beam type Retro reflection type Diffuse reflection type Sensing distance 15m 30m 7m (Note1) 1m Sensing object Opaque object above Ø20 mm Opaque object above Ø60 ㎜ White paper with no gloss 200 mm × 200 m Power supply voltage 12 - 24 V d.c. ±10 % Power consumption Emitter : 35 mA max. Transmitter : 20 mA max. 45 mA max. Control output NPN/PNP open collector yield output at the same time, Load current : 150 mA d.c. (Resistive load) NPN Residual voltage : Max 1 V d.c. / PNP Residual voltage : Max 2 V d.c. Operation mode Light ON/ Dark ON Selection by selector switch Response Time 1 ㎳ max. Hysteresis － Less than 20 % of sensing distance Indicator Output display : Red LED, Stable display : Green LED (However, the red LED of the through-beam type transmitter is the power indicator.) Sensitivity adjustment － Sensitivity adjusting volume built-in Protection circuit Protective circuits for power reverse connection and output break Timer function (Only corresponds to timer built-in type) Select OFF Delay, ON Delay or One Shot Delay by using the ON/OFF switch. Delay Time : 0.1 ~ 5 sec adjust by the volume. Light source (wavelength) IR (850 nm) Ambient temperature Operation : -20 ~ 60 ℃, Storage : -25 ~ 70 ℃ (with no icing nor dew condensation) Ambient humidity 35 ~ 85 % RH (with no icing nor dew condensation) Degree of protection IP 66 (IEC standard) Insulation resistance 20 ㏁ or min (standard on 500 V d.c. mega) Dielectric strength 1500 V a.c. (1 minute) Vibration resistance 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X . Y . Z 2 hours in each directions Shock resistance 500m/s² (approx 50 G), 3 times to each of X, Y, Z directions Connection method Terminal Material Case : ABS, Lens : PC Weight Transmission type : about 280 g, mirror reflection type : about 150 g, diffuse reflection type : about 140 g Accessories Individual - Reflector (HY-M5) - Common Driver, Bracket, Bolt, Nut, Water-proof rubber, Wire holder
$30.45
