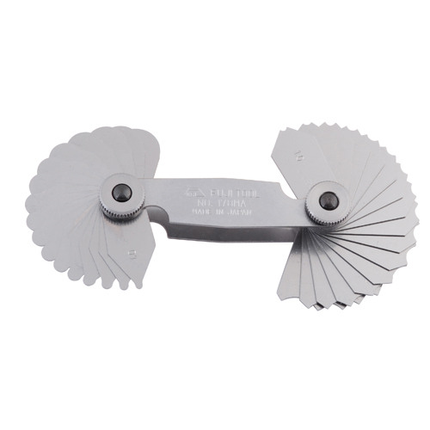

Fuji Radius Gauge Circular Measurement size 31.0-40.0 mm,178ME

  • VendorFuji

Description

Feature

  • The outer diameter of the pipe and the circular groove R such as dents can be measured.
  • For measurement
  • ※Rust

specification

  • 1 x 60 x 120
  • 31.0-40.0R (1.0 Tobi) Roughness separate type 20-disc set
  • Mass (g): 1300
  • Material and finish: SPCC
  • Code number: 7322-2241



RADIUS GAUGES 178 TYPE

Used for checking the concave and concave radii of a curved surface.
All leaves are ranged in according to sizes. High precision is guaranteed.

Material Steel
Accuracy 0.1R ~ 3.0R （± 0.03mm）
3.25R ~ 23.0R （± 0.04mm）
24.0R ~ 30.0R （± 0.05mm）
31.0R ~ 50.0R （± 0.08mm）

Feature

The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

Specification

Model No. Leaves Size Composition/Contents(mm)
178MAA 20 0.1  0.2  0.3  0.4  0.5  0.6  0.7  0.8  0.9  1.0
178-112 20 1.1  1.2  1.3  1.4  1.5  1.6  1.7  1.8  1.9  2.0
178-213 20 2.1  2.2  2.3  2.4  2.5  2.6  2.7  2.8  2.9  3.0
178MA 34 1.0  1.25  1.5  1.75  2.0  2.25  2.5  2.75  3.0  3.5  4.0
4.5  5.0  5.5  6.0  6.5  7.0
178MB 32 7.5  8.0  8.5  9.0  9.5  10.0  10.5  11.0  11.5  12.0  12.5
13.0  13.5  14.0  14.5  15.0
178MR 30 15.5  16.0  16.5  17.0  17.5  18.0  18.5  19.0  19.5
20.0  21.0  22.0  23.0  24.0  25.0
178MC 16 16.0  17.0  18.0  19.0  20.0  21.0  22.0  23.0
178MD 14 24.0  25.0  26.0  27.0  28.0  29.0  30.0
178ME 20 31.0  32.0  33.0  34.0  35.0  36.0  37.0  38.0  39.0  40.0
178MF 20 41.0  42.0  43.0  44.0  45.0  46.0  47.0  48.0  49.0  50.0

Product form

Feature The outer diameter of the pipe and the circular groove R such as dents can be measured. For measurement... Read more

SKU: 431-0057
Barcode: 4560119670212

$272.93 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Feature

      • The outer diameter of the pipe and the circular groove R such as dents can be measured.
      • For measurement
      • ※Rust

      specification

      • 1 x 60 x 120
      • 31.0-40.0R (1.0 Tobi) Roughness separate type 20-disc set
      • Mass (g): 1300
      • Material and finish: SPCC
      • Code number: 7322-2241



      RADIUS GAUGES 178 TYPE

      Used for checking the concave and concave radii of a curved surface.
      All leaves are ranged in according to sizes. High precision is guaranteed.

      Material Steel
      Accuracy 0.1R ~ 3.0R （± 0.03mm）
      3.25R ~ 23.0R （± 0.04mm）
      24.0R ~ 30.0R （± 0.05mm）
      31.0R ~ 50.0R （± 0.08mm）

      Feature

      The leaves of this gauge set cover measurements of both inner and outer circumference of round surfaces and corners.

      Specification

      Model No. Leaves Size Composition/Contents(mm)
      178MAA 20 0.1  0.2  0.3  0.4  0.5  0.6  0.7  0.8  0.9  1.0
      178-112 20 1.1  1.2  1.3  1.4  1.5  1.6  1.7  1.8  1.9  2.0
      178-213 20 2.1  2.2  2.3  2.4  2.5  2.6  2.7  2.8  2.9  3.0
      178MA 34 1.0  1.25  1.5  1.75  2.0  2.25  2.5  2.75  3.0  3.5  4.0
      4.5  5.0  5.5  6.0  6.5  7.0
      178MB 32 7.5  8.0  8.5  9.0  9.5  10.0  10.5  11.0  11.5  12.0  12.5
      13.0  13.5  14.0  14.5  15.0
      178MR 30 15.5  16.0  16.5  17.0  17.5  18.0  18.5  19.0  19.5
      20.0  21.0  22.0  23.0  24.0  25.0
      178MC 16 16.0  17.0  18.0  19.0  20.0  21.0  22.0  23.0
      178MD 14 24.0  25.0  26.0  27.0  28.0  29.0  30.0
      178ME 20 31.0  32.0  33.0  34.0  35.0  36.0  37.0  38.0  39.0  40.0
      178MF 20 41.0  42.0  43.0  44.0  45.0  46.0  47.0  48.0  49.0  50.0
