Product form

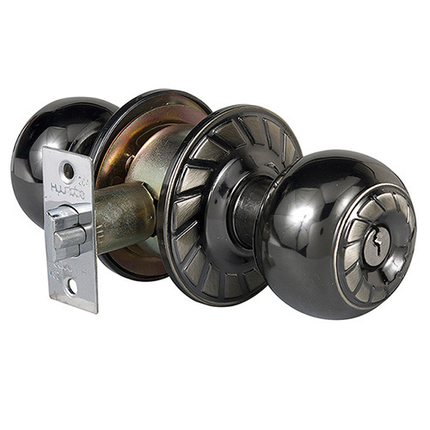

HYUNDAE DL Cylindrical Lockset 8300 AB - The HYUNDAE 8300B series Cylindrical Lockset is an ideal economical choice for... Read more

SKU: 166-0368

$8.62 Excl. VAT

Reviews

0 out of 5 stars

This product has no reviews yet

Specifications
Applications	For standard residential, light commercial and interior doors
For Doors	1-3/8” to 1-3/4” (35mm to 45mm) standard. 1-3/8” to 2” (35mm to 50mm) optional
Backset	2-3/8”(60mm) or 2-3/4”(70mm) standard
Latchbolt	Zinc, 7/16” throw standard
Keys	Three, Brass
Cylinder	Brass plug with Zinc Cylinder Body
Finishes (US Code)	3, 4, 5A, 10, 11, 19, 32D, 32
Split Finishes	Outside finish specified first Front & Strike finished to match inside trim unless otherwise specified

To order latchbolt separately, specify Part No. x Finish
Backset	Descriptions	Part Number
	(Square Corner standard)	Deadlatch	Springlatch
2 3/8" (60mm)	1” (25mm)×2 1/4” (57mm)	ENT-STD/60	PRI-STD/60

2 3/4" (70mm)	1” (25mm)×2 1/4” (57mm)	ENT-STD/70	PRI-STD/70

Specifications
Applications	For standard residential, light commercial and interior doors
For Doors	1-3/8” to 1-3/4” (35mm to 45mm) standard. 1-3/8” to 2” (35mm to 50mm) optional
Backset	2-3/8”(60mm) or 2-3/4”(70mm) standard
Latchbolt	Zinc, 7/16” throw standard
Keys	Three, Brass
Cylinder	Brass plug with Zinc Cylinder Body
Finishes (US Code)	3, 4, 5A, 10, 11, 19, 32D, 32
Split Finishes	Outside finish specified first Front & Strike finished to match inside trim unless otherwise specified

To order latchbolt separately, specify Part No. x Finish
Backset	Descriptions	Part Number
	(Square Corner standard)	Deadlatch	Springlatch
2 3/8" (60mm)	1” (25mm)×2 1/4” (57mm)	ENT-STD/60	PRI-STD/60

2 3/4" (70mm)	1” (25mm)×2 1/4” (57mm)	ENT-STD/70	PRI-STD/70
