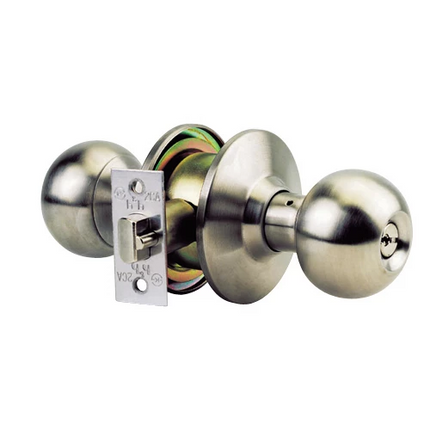

JUNGHWA Key- and Button-Locking Door Knobs 5000SS (Satin stainless steel)

Description

Key- and Button-Locking Door Knobs  5000SS (Satin stainless steel)

Grade1 JL5000B Series

- Tested to exceed 800,000 cycles ANSI Grade 1 requirement.
- Exceed ANSI A 156.2 Series 5000 Grad1 locked lever torque requirement.
- Threaded roses hold lock firmly in place.
- Heavy-gauge, cold-rolled steel machanisma are corrosion treated for normal atmosphere conditions.

Handing Keyed functions of knob designs are field reversible.
Applications For commercial, institutional and industrial use, such as schools hospitals and factories, where a iong life of dependable operation must be combined with a high degree of resistance to physical abuse.
Door Thickness 1-3/8" to 2"(35mm ~ 51mm) Standard.
Backset 2-3/4"(70mm) Standards or 2-3/8"(60mm) optional backset.
Face Plate 1-1/8"x 2-1/4" square corner, beveled, for 2-3/4"(70mm) backset standard.
Optional 1" square corner, beveled, for 2-3/8"(60mm) backset
Latch Bolt 1/2"(12mm) throw solid brass,deadlock on keyed and non-keyed function.
Strike ANSl curved lip strike 1-1/4" x 4-7/8" x 1-1/4" lip to center standard.
Optional strikes("T" & " Full-lip" strike available on request), lip lengths and strike box available.
Lock chassis Zinc plated for corrosion resistance
Exposed Trim Wrought brass, bronze or stainless steel
Knob design " Ball "
Rose Diameter & design 2-3/4" (70mm) diameter, (Tapered / Flat )
Cylinder 5-pin or 6-pin solid brass "Schlage C" keyway standard with two brass keys per lock.
Keyways Available for all keyways of most major manufacturers
key Options Can be Master Keying,Grand Master keying and Construction Master keying or Contruction Keying.
Available Zero Bitted, Keyed Different (KD) or Keyed Alike (KA).
Can be keyed into existing master key systems of other manufacturers.
Interchangable - Core SFIC(small Format) lnterchangable core and high security cylinders.
Avaliable for all keyed functions / 6 or 7 pin / Compatible with Best & Falcon style.
Finish US3 / US4 / US5 / US10 / US10B / US32D
Other finishes available with lead time

Product form

Key- and Button-Locking Door Knobs  5000SS (Satin stainless steel) Grade1 JL5000B Series - Tested to exceed 800,000 cycles ANSI Grade... Read more

SKU: 166-0049

$8.26 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Apr 24, 2024 17:00:00 +0900

    Description

    Key- and Button-Locking Door Knobs  5000SS (Satin stainless steel)

    Grade1 JL5000B Series

    - Tested to exceed 800,000 cycles ANSI Grade 1 requirement.
    - Exceed ANSI A 156.2 Series 5000 Grad1 locked lever torque requirement.
    - Threaded roses hold lock firmly in place.
    - Heavy-gauge, cold-rolled steel machanisma are corrosion treated for normal atmosphere conditions.

    Handing Keyed functions of knob designs are field reversible.
    Applications For commercial, institutional and industrial use, such as schools hospitals and factories, where a iong life of dependable operation must be combined with a high degree of resistance to physical abuse.
    Door Thickness 1-3/8" to 2"(35mm ~ 51mm) Standard.
    Backset 2-3/4"(70mm) Standards or 2-3/8"(60mm) optional backset.
    Face Plate 1-1/8"x 2-1/4" square corner, beveled, for 2-3/4"(70mm) backset standard.
    Optional 1" square corner, beveled, for 2-3/8"(60mm) backset
    Latch Bolt 1/2"(12mm) throw solid brass,deadlock on keyed and non-keyed function.
    Strike ANSl curved lip strike 1-1/4" x 4-7/8" x 1-1/4" lip to center standard.
    Optional strikes("T" & " Full-lip" strike available on request), lip lengths and strike box available.
    Lock chassis Zinc plated for corrosion resistance
    Exposed Trim Wrought brass, bronze or stainless steel
    Knob design " Ball "
    Rose Diameter & design 2-3/4" (70mm) diameter, (Tapered / Flat )
    Cylinder 5-pin or 6-pin solid brass "Schlage C" keyway standard with two brass keys per lock.
    Keyways Available for all keyways of most major manufacturers
    key Options Can be Master Keying,Grand Master keying and Construction Master keying or Contruction Keying.
    Available Zero Bitted, Keyed Different (KD) or Keyed Alike (KA).
    Can be keyed into existing master key systems of other manufacturers.
    Interchangable - Core SFIC(small Format) lnterchangable core and high security cylinders.
    Avaliable for all keyed functions / 6 or 7 pin / Compatible with Best & Falcon style.
    Finish US3 / US4 / US5 / US10 / US10B / US32D
    Other finishes available with lead time
