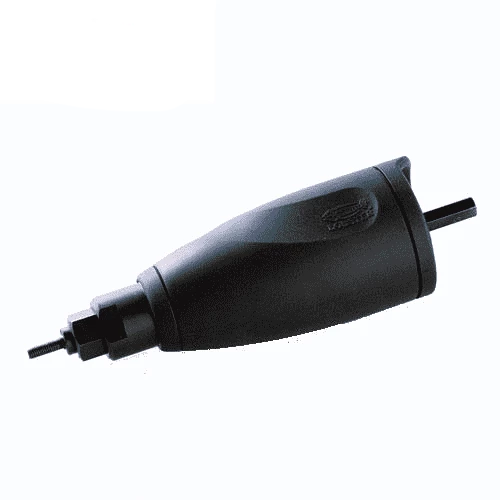

LOBSTER Attachment Nut Rivet Setter @ N10d
No need to adjust stroke!
Easy and Convenient!
Need a rechargeable drill driver (14.4V with torque adjustable function).
Use / Application ★ How to operate Attachment Nut Rivet Setter @ N10d
① Lobster Blind Nut Rivet (M5 Steel)
② Make a prepared hole which is 0.1mm larger than dia. of the nut rivet.
③ Check if the nut rivet can insert to the prepared hole.
④ Equip @ N10d into the drill driver.
⑤ Make sure @ N10d set in place.
⑥ Adjust torque of the drill driver. (*One)
⑦ Make sure that the mandrel is equipped.Then, spray lubricant oil on it. (* 2) (* 3)
⑧ Set the rivet nut into the mandrel.
⑨ Insert the rivet nut into the prepared hole.
⑩ Hold the grip firmly and rotate the drill driver clockwise pushing a little to the object.
⑪ After fastened, rotate the drill driver in anti-clockwise direction and remove the tool from thr nut rivet.
⑫ Finised.
(* 1) Refer to "Required torque" in the instruction manual.After adjusting the torque, conduct a riveting test.
(* 2) Select the proper size of the mandrel. There are 3 sizes (M4, M5, M6) of the mandrel packed into the package.
(* 3) The lubricant oil (5ml) comes with the package.
Specifications
| Product Code. |
Model No. |
weight |
size1 |
size2 |
size3 |
size4 |
size5 |
size6 |
Use range |
Remark |
| 215-4846 |
@N10d |
430g |
175mm |
55mm |
49mm |
26mm |
17mm |
8mm |
M4,M5,M6 *Can not use for stainless nut rivet |
14.4V Drill driver |
IMPORTANT SAFETY INSTRUCTIONS· Be sure to read the instruction Manual and important Usage Advisory carefully and make sure that you understand them thoroughly before using this tool.
Consider carefully the work condition. By continuous use, the drill driver is very hot.
Always cool down the tool at any time.
· If using the drill drive other than 14.4V, check if it can work or not before use.
· The tool is made for the drill driver. Do not use the tool with the impact driver and the pneumatic one.
CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.
