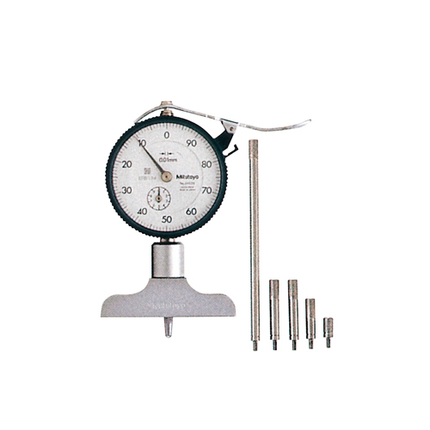

MITUTOYO ABSOLUTE Dial Depth Gage Series 7200

Description

MITUTOYO  ABSOLUTE Dial Depth Gage Series 7200

  • FEATURES
    • Designed with a back plunger type dial indicator for upward facing readings. (7231, 7237T, 7238T)

    Technical Data
    Dial reading: 0.01mm or .001”
    Flatness of base face: 5µm or 2µm
    Contact point: Carbide-tipped ball point(needle point:7210, 7222)
    Measuring force: 1.4N (2.5N: 7213, 7214, 7217, 7218)


    Order No Range Graduation Stroke Accuracy Extension Rods Base WxThickness Flatness
    7210 0-10mm 0.01mm 10mm 0.015mm - 40x16mm 5µm
    7211 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 63.5x16mm 5µm
    7212 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 101.6x16mm 5µm
    7220 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 100x18mm 5µm
    7221 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 150x18mm 5µm
    7231 0-200mm 0.01mm 5mm 0.015mm 5pcs.(10,20,30,30,100mm) 63.5x16mm 5µm
    Product form

    MITUTOYO  ABSOLUTE Dial Depth Gage Series 7200 FEATURES Designed with a back plunger type dial indicator for upward facing readings.... Read more

    SKU: 7210A
    Barcode: 4946368192925

    $202.66 Excl. VAT

      • Quick delivery worldwide
      • Satisfied or refunded
      • Secure payments Paypal

        Description

        MITUTOYO  ABSOLUTE Dial Depth Gage Series 7200

        • FEATURES
          • Designed with a back plunger type dial indicator for upward facing readings. (7231, 7237T, 7238T)

          Technical Data
          Dial reading: 0.01mm or .001”
          Flatness of base face: 5µm or 2µm
          Contact point: Carbide-tipped ball point(needle point:7210, 7222)
          Measuring force: 1.4N (2.5N: 7213, 7214, 7217, 7218)


          Order No Range Graduation Stroke Accuracy Extension Rods Base WxThickness Flatness
          7210 0-10mm 0.01mm 10mm 0.015mm - 40x16mm 5µm
          7211 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 63.5x16mm 5µm
          7212 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 101.6x16mm 5µm
          7220 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 100x18mm 5µm
          7221 0-200mm 0.01mm 10mm 0.015mm 5pcs.(10,20,30,30,100mm) 150x18mm 5µm
          7231 0-200mm 0.01mm 5mm 0.015mm 5pcs.(10,20,30,30,100mm) 63.5x16mm 5µm
