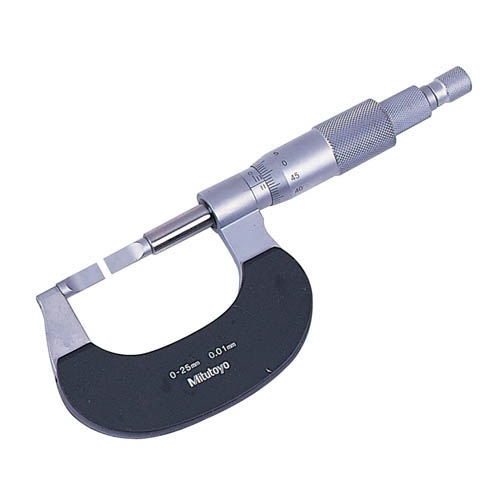

MITUTOYO Blade Micrometers - Series 122 - Non-Rotating Spindle

Description

MITUTOYO  Blade Micrometers - Series 122 - Non-Rotating Spindle

  • FEATURES
    • The anvil and the spindle have a blade for measuring
      the groove diameter of shafts, keyways, and other hard-to-reach areas.
    • With Ratchet Stop for constant force.
    • Speedy spindle feed of 10mm / .4”/rev. (Quickmike type).
    • With a standard bar except 0 -25mm and 0 - 1” model.
    • Supplied in fitted plastic case.

    Technical Data
    Accuracy: Refer to the list of specifications.
    Resolution*: 0.001mm or .00005"/0.001mm
    Graduation**: 0.01mm or .0001"
    Parallelism: 3ìm / .00012” for models up to 75mm / 3”
    (3+R/100)ìm for models over 75mm,
    R=max. range (mm) .00016” for 4” models
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 years under normal use
    *Digital models **Analog models

    Function of Digital Model
    Origin-set, Zero-setting, Data hold, Data output, inch/mm
    conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error

    Optional Accessories for Digital Model
    05CZA662: SPC cable with data switch (1m / 40”)
    05CZA663: SPC cable with data switch (2m / 80”)
    937387: SPC cable for Quickmike type (1m / 40”)
    965013: SPC cable for Quickmike type (2m / 80”)



      Order No Range Accuracy Remarks Mass Type
      122-141 0-25mm ±3µm - 275g D
      122-161 0-25mm ±3µm - 275g C
      122-111 0-25mm ±3µm - 260g B
      122-101 25-50mm ±3µm - 260g A
      122-102 50-75mm ±3µm - 300g A
      122-103 75-100mm ±3µm - 360g A
      122-104 75-100mm ±4µm - 525g A

























      Product form

      MITUTOYO  Blade Micrometers - Series 122 - Non-Rotating Spindle FEATURES The anvil and the spindle have a blade for measuringthe... Read more

      SKU: 122-141

      $313.70 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
        Need a bulk or multi-brand quotation?

        Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
        Korean brands at ProSource MRO — operated by the same team.

        Request a Bulk Quote →

        Description

        MITUTOYO  Blade Micrometers - Series 122 - Non-Rotating Spindle

        • FEATURES
          • The anvil and the spindle have a blade for measuring
            the groove diameter of shafts, keyways, and other hard-to-reach areas.
          • With Ratchet Stop for constant force.
          • Speedy spindle feed of 10mm / .4”/rev. (Quickmike type).
          • With a standard bar except 0 -25mm and 0 - 1” model.
          • Supplied in fitted plastic case.

          Technical Data
          Accuracy: Refer to the list of specifications.
          Resolution*: 0.001mm or .00005"/0.001mm
          Graduation**: 0.01mm or .0001"
          Parallelism: 3ìm / .00012” for models up to 75mm / 3”
          (3+R/100)ìm for models over 75mm,
          R=max. range (mm) .00016” for 4” models
          Display*: LCD
          Battery*: SR44 (1 pc.), 938882
          Battery life*: Approx. 1.2 years under normal use
          *Digital models **Analog models

          Function of Digital Model
          Origin-set, Zero-setting, Data hold, Data output, inch/mm
          conversion (inch/mm models)
          Alarm: Low voltage, Counting value composition error

          Optional Accessories for Digital Model
          05CZA662: SPC cable with data switch (1m / 40”)
          05CZA663: SPC cable with data switch (2m / 80”)
          937387: SPC cable for Quickmike type (1m / 40”)
          965013: SPC cable for Quickmike type (2m / 80”)



            Order No Range Accuracy Remarks Mass Type
            122-141 0-25mm ±3µm - 275g D
            122-161 0-25mm ±3µm - 275g C
            122-111 0-25mm ±3µm - 260g B
            122-101 25-50mm ±3µm - 260g A
            122-102 50-75mm ±3µm - 300g A
            122-103 75-100mm ±3µm - 360g A
            122-104 75-100mm ±4µm - 525g A
