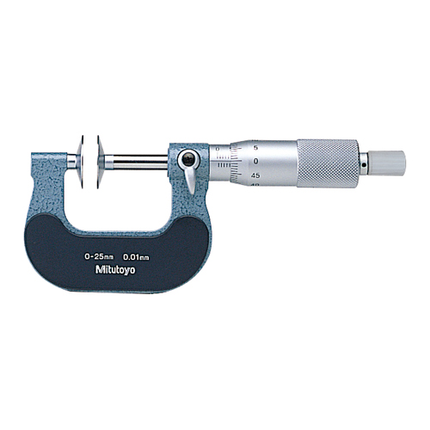

MITUTOYO Disk Micrometers - Series 123

Description

MITUTOYO  Disk Micrometers - Series 123

  • FEATURES
    • Diameter of measuring disk: 20mm / .787”
    • 0.7mm / .028” (1mm: models over 100mm) edge thickness to enter narrow recesses.
    • With Ratchet Stop for constant force.
    • With a standard bar except for 25mm / 0 - 1” model.
    • With SPC output (Series 323).
    • The Series 223 is provided with a mechanical digit counter for quick reading of measurements.
    • Supplied in fitted plastic case. (Over 100mm models supplied wooden cases)

    Technical Data
    Accuracy: Refer to the list of specifications.
    Resolution*:0.001mm or .00005"/0.001mm
    Graduation**: 0.01mm or .001"
    Flatness: 1µm / .00004” for models up to 100mm / 4”
    1.6µm / .000063” for models over 100mm / 4“
    Parallelism: 4µm / .00016” for models up to 50mm / 2”
    .00024” for models up to 4”
    (4+R/50)µmfor models up to 100mm
    (5+R/75)µm for models over 100mm, R=max.
    range (mm)
    Measurable module: 0.5-6 (0.7-11: models over 100mm)
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 years under normal use
    *Digital models **Analog models

    Function of Digital Model
    Origin-set, Zero-setting, Data hold, Data output, inch/mm
    conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error

    Optional Accessories for Digital Model
    05CZA662: SPC cable with data switch (1m / 40”)
    05CZA663: SPC cable with data switch (2m / 80”)
    Order No Range Accuracy Remarks
    123-101 0-25mm ±4µm -
    123-102 25-50mm ±4µm -
    123-103 50-75mm ±6µm -
    123-104 75-100mm ±6µm -

    Product form

    MITUTOYO  Disk Micrometers - Series 123 FEATURES Diameter of measuring disk: 20mm / .787” 0.7mm / .028” (1mm: models over... Read more

    SKU: 123-101

    $201.57 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal

      Description

      MITUTOYO  Disk Micrometers - Series 123

      • FEATURES
        • Diameter of measuring disk: 20mm / .787”
        • 0.7mm / .028” (1mm: models over 100mm) edge thickness to enter narrow recesses.
        • With Ratchet Stop for constant force.
        • With a standard bar except for 25mm / 0 - 1” model.
        • With SPC output (Series 323).
        • The Series 223 is provided with a mechanical digit counter for quick reading of measurements.
        • Supplied in fitted plastic case. (Over 100mm models supplied wooden cases)

        Technical Data
        Accuracy: Refer to the list of specifications.
        Resolution*:0.001mm or .00005"/0.001mm
        Graduation**: 0.01mm or .001"
        Flatness: 1µm / .00004” for models up to 100mm / 4”
        1.6µm / .000063” for models over 100mm / 4“
        Parallelism: 4µm / .00016” for models up to 50mm / 2”
        .00024” for models up to 4”
        (4+R/50)µmfor models up to 100mm
        (5+R/75)µm for models over 100mm, R=max.
        range (mm)
        Measurable module: 0.5-6 (0.7-11: models over 100mm)
        Display*: LCD
        Battery*: SR44 (1 pc.), 938882
        Battery life*: Approx. 1.2 years under normal use
        *Digital models **Analog models

        Function of Digital Model
        Origin-set, Zero-setting, Data hold, Data output, inch/mm
        conversion (inch/mm models)
        Alarm: Low voltage, Counting value composition error

        Optional Accessories for Digital Model
        05CZA662: SPC cable with data switch (1m / 40”)
        05CZA663: SPC cable with data switch (2m / 80”)
        Order No Range Accuracy Remarks
        123-101 0-25mm ±4µm -
        123-102 25-50mm ±4µm -
        123-103 50-75mm ±6µm -
        123-104 75-100mm ±6µm -
