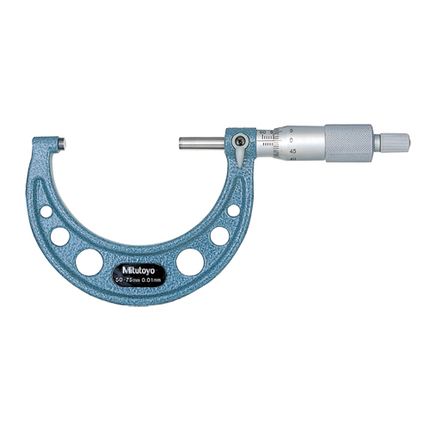

MITUTOYO Outside Micrometers Series-103 METRIC

Description

MITUTOYO  Outside Micrometers Series-103 METRIC

  • Series 103
    FEATURES
    • Hammertone-green, baked-enamelfinished frame.
    • Ratchet Stop for exact repetitive readings.
    • With a standard bar except for 0-25mm model.

    Technical Data

    Graduation: 0.01mm, 0.001mm
    Flatness: 0.6µm for models up to 300mm
    1µm for models over 300mm
    Parallelism: (2+R/100)µm, R=max. range (mm)
    Measuring faces: Carbide tipped

    Order No Range Accu. Mass Remarks
    103-129 0-25mm ±2µm 175g With ratchet stop/0.001mm reading is obtained with vernier.
    103-130 25-50mm ±2µm 215g With ratchet stop
    103-137 0-25mm ±2µm 175g With ratchet stop
    103-138 25-50mm ±2µm 215g With ratchet stop
    103-139-10 50-75mm ±2µm 315g With ratchet stop
    103-140-10 75-100mm ±3µm 375g With ratchet stop
    103-141-10 100-125mm ±3µm 515g With ratchet stop
    103-142-10 125-150mm ±3µm 665g With ratchet stop
    103-143-10 150-175mm ±4µm 720g With ratchet stop
    103-144-10 175-200mm ±4µm 920g With ratchet stop
    103-145-10 200-225mm ±4µm 1,080g With ratchet stop
    103-146-10 225-250mm ±5µm 1,255g With ratchet stop
    103-147-10 250-275mm ±5µm 1,405g With ratchet stop
    103-148-10 275-300mm ±5µm 1,565g With ratchet stop

    Product form

    MITUTOYO  Outside Micrometers Series-103 METRIC Series 103 FEATURES Hammertone-green, baked-enamelfinished frame. Ratchet Stop for exact repetitive readings. With a standard... Read more

    SKU: 103-129

    $89.57 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
      Need a bulk or multi-brand quotation?

      Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
      Korean brands at ProSource MRO — operated by the same team.

      Request a Bulk Quote →

      Description

      MITUTOYO  Outside Micrometers Series-103 METRIC

      • Series 103
        FEATURES
        • Hammertone-green, baked-enamelfinished frame.
        • Ratchet Stop for exact repetitive readings.
        • With a standard bar except for 0-25mm model.

        Technical Data

        Graduation: 0.01mm, 0.001mm
        Flatness: 0.6µm for models up to 300mm
        1µm for models over 300mm
        Parallelism: (2+R/100)µm, R=max. range (mm)
        Measuring faces: Carbide tipped

        Order No Range Accu. Mass Remarks
        103-129 0-25mm ±2µm 175g With ratchet stop/0.001mm reading is obtained with vernier.
        103-130 25-50mm ±2µm 215g With ratchet stop
        103-137 0-25mm ±2µm 175g With ratchet stop
        103-138 25-50mm ±2µm 215g With ratchet stop
        103-139-10 50-75mm ±2µm 315g With ratchet stop
        103-140-10 75-100mm ±3µm 375g With ratchet stop
        103-141-10 100-125mm ±3µm 515g With ratchet stop
        103-142-10 125-150mm ±3µm 665g With ratchet stop
        103-143-10 150-175mm ±4µm 720g With ratchet stop
        103-144-10 175-200mm ±4µm 920g With ratchet stop
        103-145-10 200-225mm ±4µm 1,080g With ratchet stop
        103-146-10 225-250mm ±5µm 1,255g With ratchet stop
        103-147-10 250-275mm ±5µm 1,405g With ratchet stop
        103-148-10 275-300mm ±5µm 1,565g With ratchet stop
