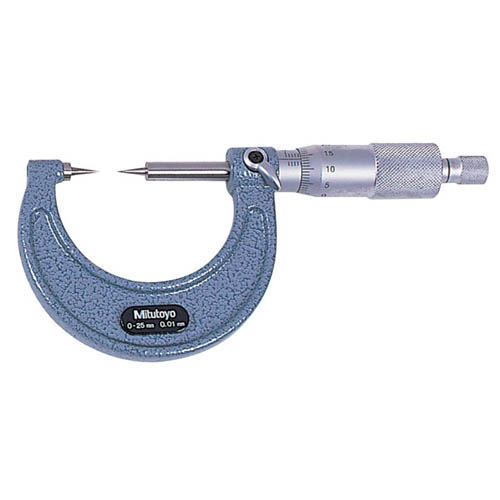

MITUTOYO Point Micrometers - Series 112

Description

MITUTOYO  Point Micrometers - Series  112

  • FEATURES
    • IP65 water/dust protection (Series 342).
    • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
    • 15 degree and 30 degree measuring points
      are available.
    • The measuring points have approximately 0.3mm / .012” radius.
    • With Ratchet Stop for constant force.
    • With SPC output (Series 342).
    • With digit counter (Series 142).
    • With a standard bar except 0 - 25mm and 0 - 1” model.
    • Supplied in fitted plastic case.

      Technical Data
          Accuracy: Refer to the list of specifications.
          Resolution*: 0.001mm or .00005"/0.001mm
          Graduation**: 0.01mm or .001"
          Display*: LCD
            Battery*: SR44 (1 pc.),
       938882
          Battery life*: Approx. 1.2 years under normal use
          Dust/Water protection level*: IP65
          *Digital models **Analog models
          Function of Digital Model Origin-set, Zero-setting, Data hold, inch/mm conversion
          (inch/mm models)
          Alarm: Low voltage, Counting value composition error
          Optional Accessories for Digital Model

      05CZA662 : SPC cable with data switch (1m/40”)

      05CZA663 : SPC cable with data switch (2m/80”)



    Range Order No Accuracy Point Mass Type
    0-25mm 112-153 ±3µm 15° 205g No Carbide Tip
    0-25mm 112-201 ±3µm 30° 205g No Carbide Tip


























    Product form

    MITUTOYO  Point Micrometers - Series  112 FEATURES IP65 water/dust protection (Series 342). Pointed spindle and anvil for measuring the web... Read more

    SKU: 112-153

    $183.93 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
      Need a bulk or multi-brand quotation?

      Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
      Korean brands at ProSource MRO — operated by the same team.

      Request a Bulk Quote →
